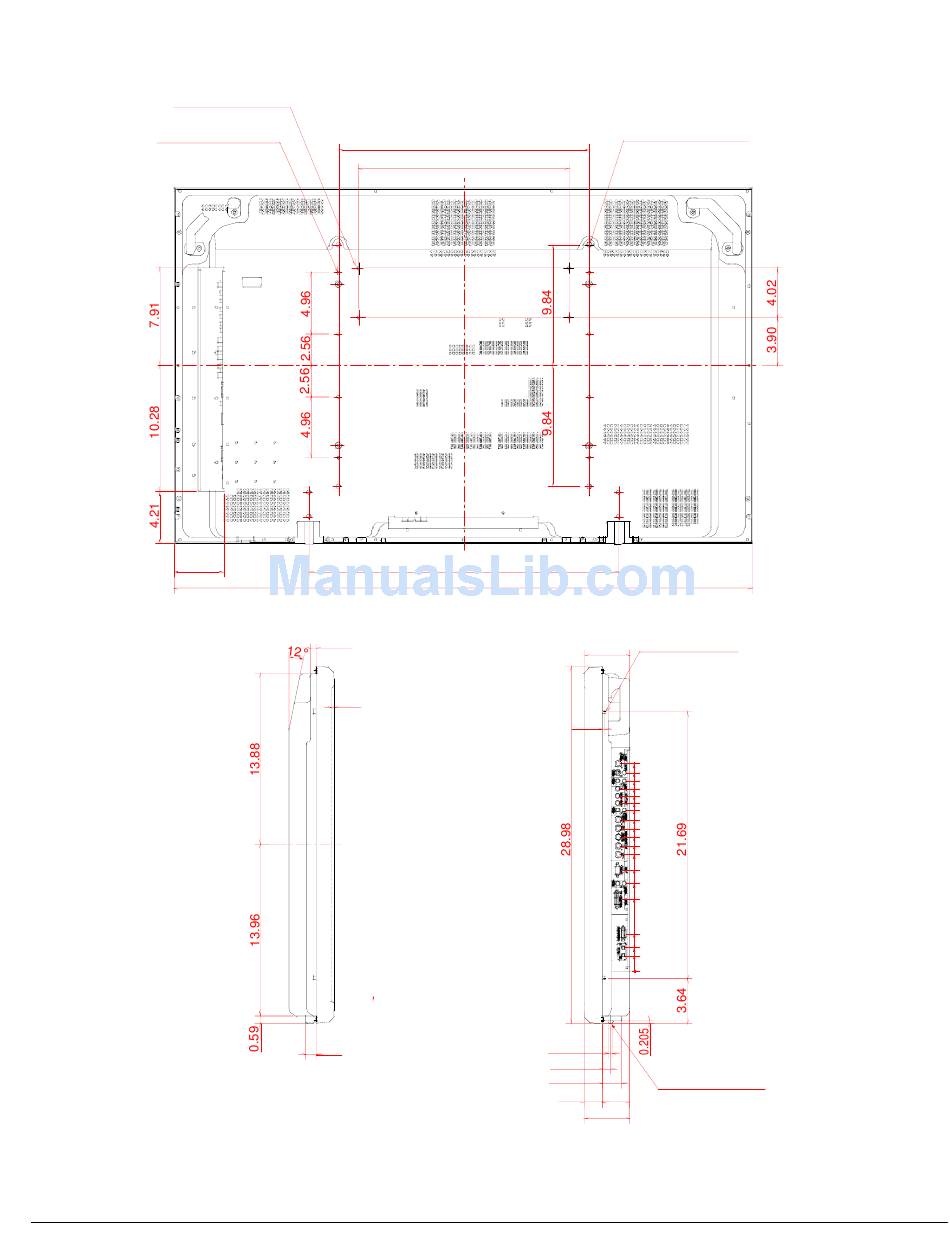

Display dimensions (cont.)
FOR PC OPTION
4-M4 DEPTH 10
FOR MOUNT OPTION
8-M4 DEPTH 14
4.08
www.necvisualsystems.com
REAR VIEW
0.469
0.217
0.91
LEFT SIDE VIEW
20.87
17.52
25.75
48.11
3.78
0.217
0.406
0.665
1.59
2.28
1.50
3.78
RIGHT SIDE VIEW
FOR MOUNT OPTION
4-M8 DEPTH 18
FOR SPEAKER OPTION
16.89
16.16
15.49
14.86
14.27
13.68
13.13
12.34
11.63
10.93
10.22
9.51
8.25
7.15
5.89
3.07
1.93
1.30
POWER BUTTON
50XM4
Page 4 of 4
