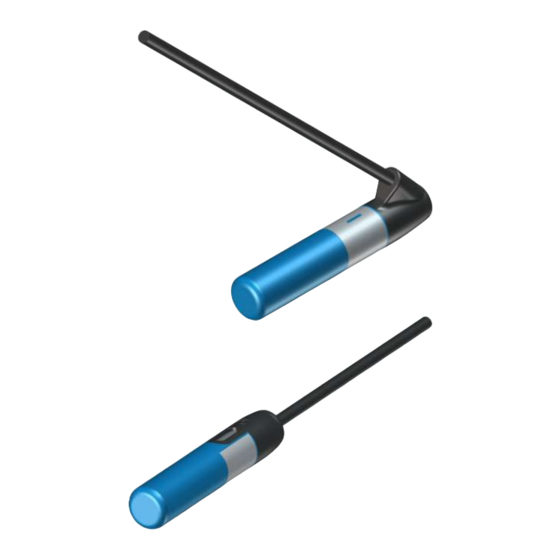

DOL 26SCR PNP/NPN
Capacitive sensor
For other language variants of this document we refer to
your local dealer.
dol-sensors a/s
– Agro Food Park 15
– DK-8200 Aarhus N
– T: +45 7217 5888
Technical User Guide
www.dol-sensors.com
– F: +45 7217 5959
– www.dol-sensors.com
or
Advertisement
Related Manuals for DOL 26SCR
Summary of Contents for DOL 26SCR

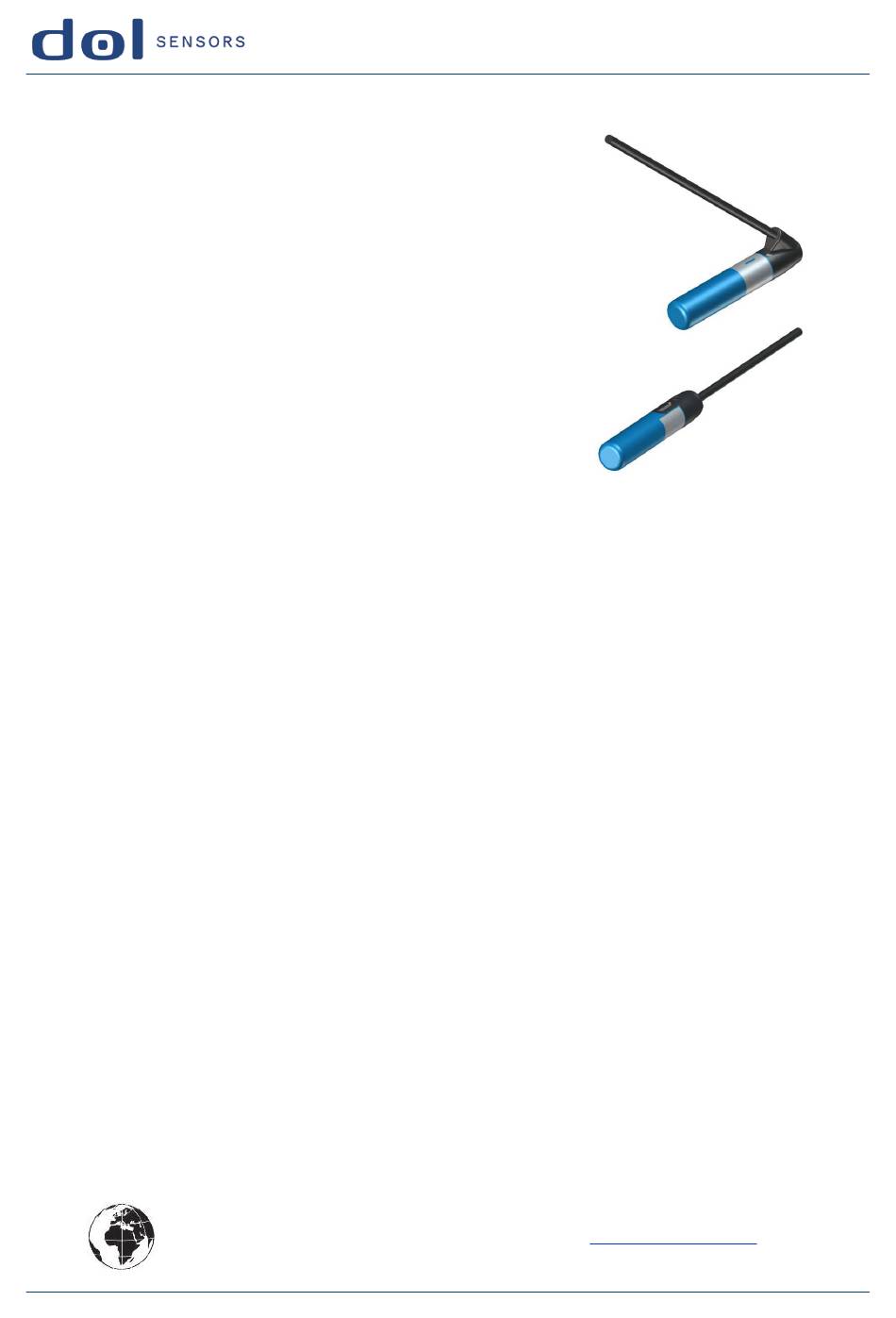

- Page 1 Technical User Guide DOL 26SCR PNP/NPN Capacitive sensor For other language variants of this document we refer to www.dol-sensors.com your local dealer. dol-sensors a/s – Agro Food Park 15 – DK-8200 Aarhus N – T: +45 7217 5888 – F: +45 7217 5959...
- Page 2 The products are suitable together with contactors, relays, PLC’s and similar within the agricultural and indus- trial sectors. DOL 26 is immune to EMI, short circuits and any overload. The mechanical design makes DOL 26 ideal for integration into applications with limited space. The full-return option is especially suited for feeding pans.
- Page 3 RED ON No power to sensor GREEN OFF Power to sensor GREEN ON Adjustment DOL 26 has trimmers with different functions depending on its type for adjustment. 4 Technical data DOL 26SCR DOL 26PNP/NPN Electrical V AC/DC 20 - 280...
- Page 4 Technical User Guide DOL 26SCR DOL 26PNP/NPN 0 – 12 (0 – 0.47) Activation distance (Sn)* (inches) (adjustable) 4 – 10 (0.16 – 0.39) Safe activation distance (inches) Repeatability 4 - 10 Hysteresis Off / Period 1 / Period 2...
