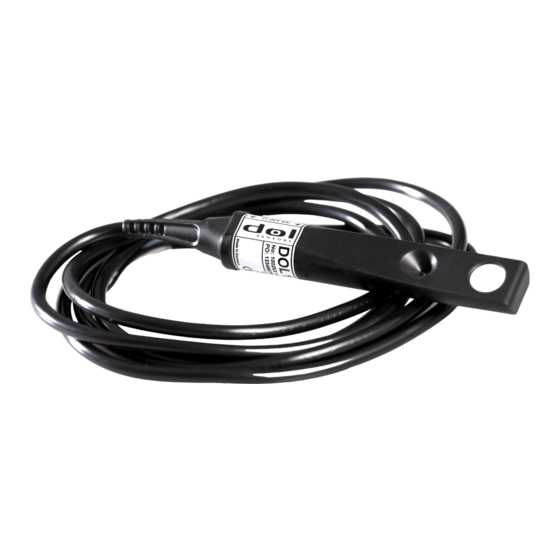

DOL 114 0-10 V
Humidity and Temperature
Sensor
For other language variants of this document we refer to
your local dealer.
dol-sensors a/s
– Agro Food Park 15
– DK-8200 Aarhus N
– T: +45 7217 5888
Technical User Guide
www.dol-sensors.com
– F: +45 7217 5959
– www.dol-sensors.com
or
Advertisement
Related Manuals for DOL 114 0-10 V
Summary of Contents for DOL 114 0-10 V
- Page 1 Technical User Guide DOL 114 0-10 V Humidity and Temperature Sensor For other language variants of this document we refer to www.dol-sensors.com your local dealer. dol-sensors a/s – Agro Food Park 15 – DK-8200 Aarhus N – T: +45 7217 5888 –...
- Page 2 Technical User Guide 1 Product description DOL 114 is a high-precision humidity sensor for measuring relative humidity and temperature. It is intended for application in livestock houses but is also well suited for a number of industrial applications. The sensor features two analogue outputs with very low output resistances and full protection against short cir- cuits and wiring failures.
- Page 3 6 min. at 0.5 m/s air speed Time constant T Common Electrical V DC 11 - 30 Supply voltage 12 mA no load Current 55 mA max. load Ω > 500 Ω - < 10 MΩ Load www.dol-sensors.com DOL 114 0-10 V...
- Page 4 275 × 200 × 20 Packing dimensions H x W x Shipment weight ex. connec- 5.1 Dimensions Dimensions in mm. 107.5 dol-sensors a/s – Agro Food Park 15 – DK-8200 Aarhus N – T: +45 7217 5888 – F: +45 7217 5959 – www.dol-sensors.com...
