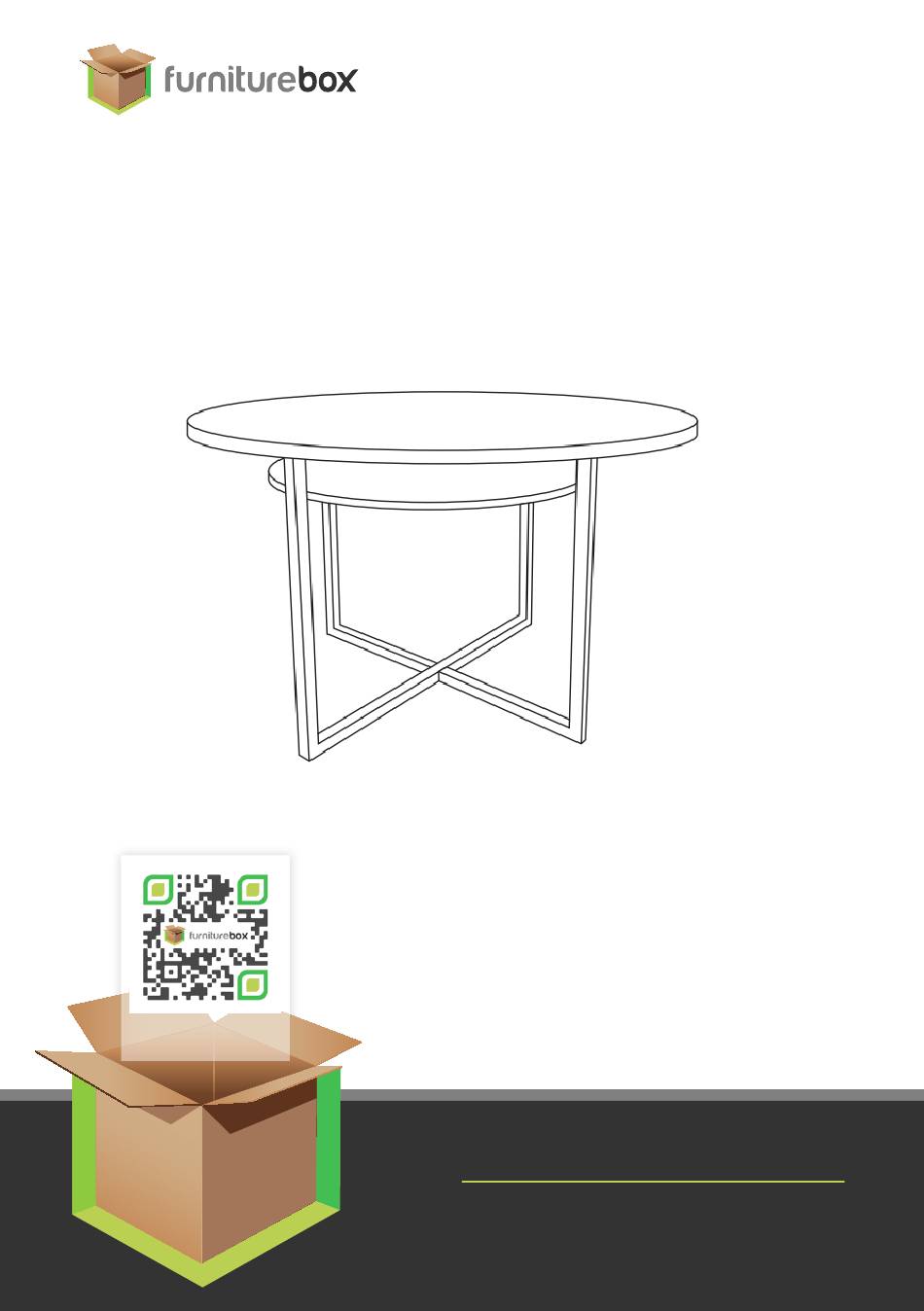

- Page 1 ADLEY ASSEMBLY GUIDE SCAN ME www.furniturebox.co.uk Scan QR code for more tips, advice and assembly video or visit furniturebox.co.uk/club/adley...
- Page 2 Important - Please read these instructions fully before starting assembly SAFETY AND NO POWER TOOLS CARE ADVICE SAFETY AND CARE ADVICE • Check you have all the components and • Only clean using a damp tools listed. cloth and mild detergent, do no use bleach or •...
- Page 3 PLEASE CHECK CAREFULLY AND MAKE SURE YOU HAVE ALL FITTINGS AND TOOLS LISTED BELOW BEFORE YOU START. NOTE: The quantities above are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. www.furniturebox.co.uk...
- Page 4 STEP Use a clean, flat, soft surface to avoid any bumps or scratches. Cross the legs [3 and 4] as shown. STEP Connect the legs. Use 1 x washer [D] followed by 1 x bolt [A] for the single hole at what will be the bottom of the table.
- Page 5 Connect using 1 x washer [D] followed by 1 x bolt [C] and tighten with Allen key [G] -ensure these are fully tightened. STEP Place the shelf [2] between the table legs as shown. www.furniturebox.co.uk...
- Page 6 STEP Have 1 person hold the shelf in place. Attach the shelf to the table legs using 4 x brackets [E]. Connect each bracket using 3 x washers [D] followed by 3 x bolts [B]. Once all components are in place, go ahead and fully tighten all the screws.
- Page 7 www.furniturebox.co.uk...
- Page 8 The cushions (foam inserts and covers) are not covered by the guarantee.
