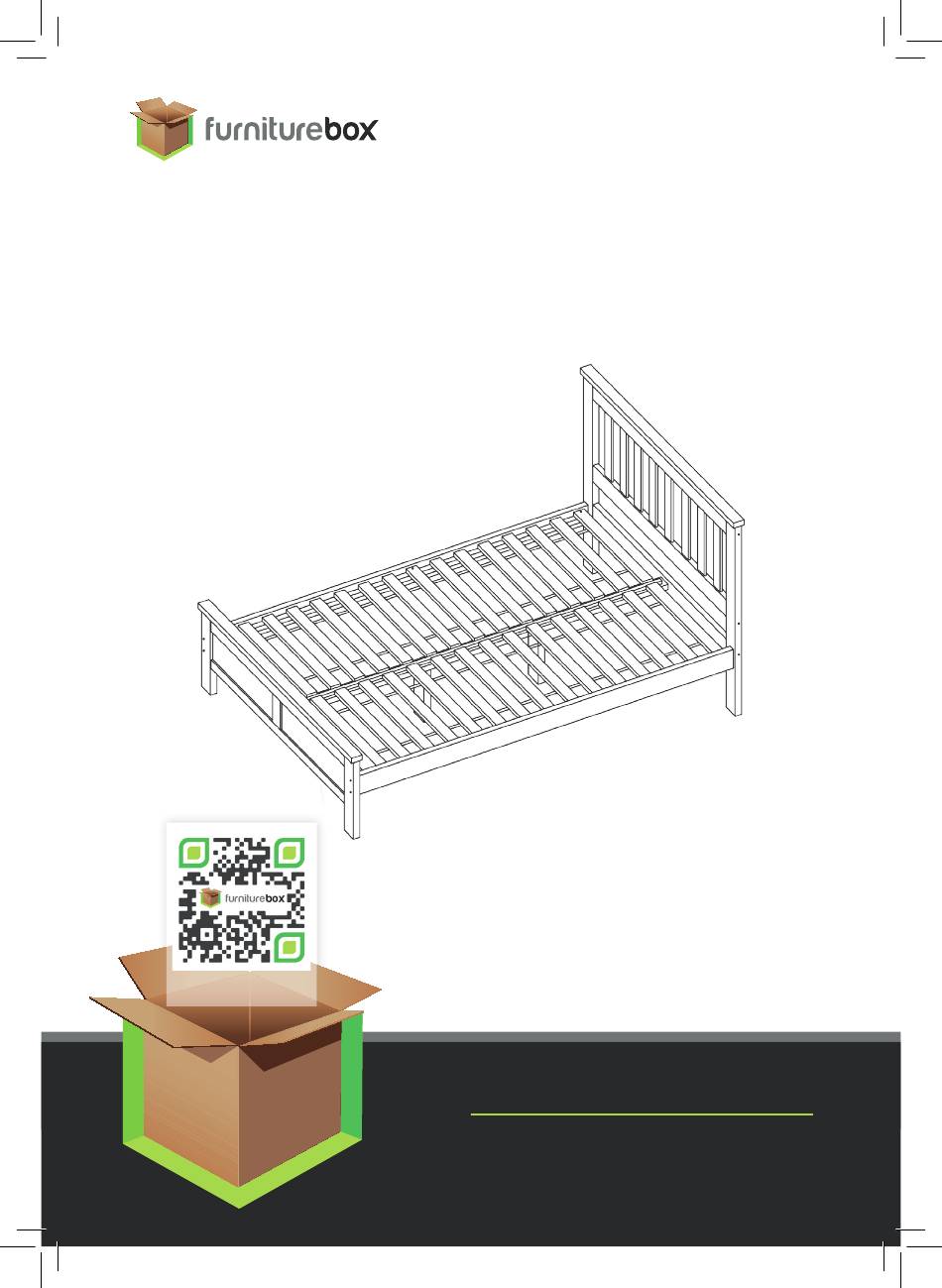

- Page 1 AZURE KING ASSEMBLY GUIDE SCAN ME www.furniturebox.co.uk Scan QR code for more tips, advice and assembly video or visit furniturebox.co.uk/club/azure-double-and-King...
- Page 2 Important - Please read these instructions fully before starting assembly SAFETY AND NO POWER TOOLS CARE ADVICE SAFETY AND CARE ADVICE • Check you have all the components and • Only clean using a damp tools listed. cloth and mild detergent, do no use bleach or •...
- Page 3 PLEASE CHECK CAREFULLY AND MAKE SURE YOU HAVE ALL FITTINGS AND TOOLS LISTED BELOW BEFORE YOU START. NOTE: The quantities above are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. www.furniturebox.co.uk...
- Page 4 STEP Use a clear, flat, soft surface to avoid bumps or scratches. Construct the headboard first. Take headboard piece [2] and support piece [5] and insert 4 x wooden dowels [C] as indicated in diagram. STEP Next, attach side pieces to headboard.
- Page 5 FULL ASSEMBLY INSTRUCTIONS STEP Take 2 x side pieces [6] and add 4 x dowels [C] into the ends as per diagram - 1 dowel either end of each side piece. www.furniturebox.co.uk...
- Page 6 STEP Construct bed frame. Align headboard [2], footboard [1] and side pieces [6] - get all the pieces into correct position before screwing anything together. Connect side pieces to headboard and footboard with 8 x bolts [A] and 8 x cam locks [B] - 2 at each end, on both sides. Follow us on Instagram @furniturebox_uk...
- Page 7 [H] - x 4 in total. ATTENTION: Should you need to move the bedframe after assembly, carefully lift and re-position it with the help of at least one other person. Do not attempt to drag the frame, or you could risk damaging the structure. www.furniturebox.co.uk...
- Page 9 www.furniturebox.co.uk...
- Page 10 The cushions (foam inserts and covers) are not covered by the guarantee.
