AFA Stainless AFUR3018USCOMBO Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
30" STAINLESS STEEL UNDER MOUNT KITCHEN SINK & FAUCET KIT
·Large Single Bowl Sink
·Extra deep 11 inch Bowl
·Stainless Bottom Grid
·18 Gauge Solid Stainless
·Stainless Steel Pull Down Faucet
·Stainless Steel Soap / Lotion Dispenser
·1 Stainless Drain w / Strainer
·17" × 20" Stainless Roller Mat
Owners Manual
AFUR3018USCOMBO
AFA USA LLC
3190 Airport Loop Dr Ste B1, Costa Mesa, CA 92626
Toll Free: (877) 778-6888
Monday-Saturday 8 a.m-6 p.m Pacific Time Zone
Email: customer.service@afastainless.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the AFUR3018USCOMBO and is the answer not in the manual?

Questions and answers

Laurinda Sigler
March 10, 2025

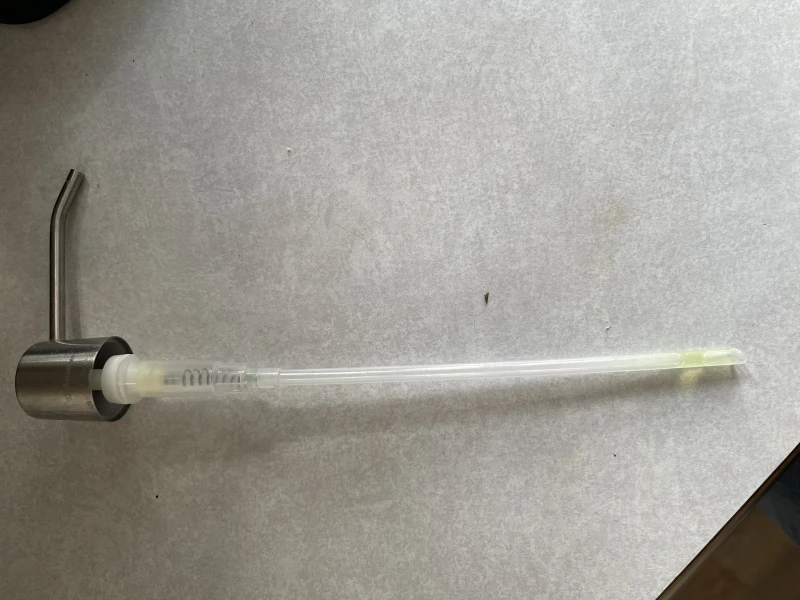

I have an AFA stainless soap dispenser and farmers sink in my rental unit and the dispenser needs replacing. Do you still have it? Thanks!
