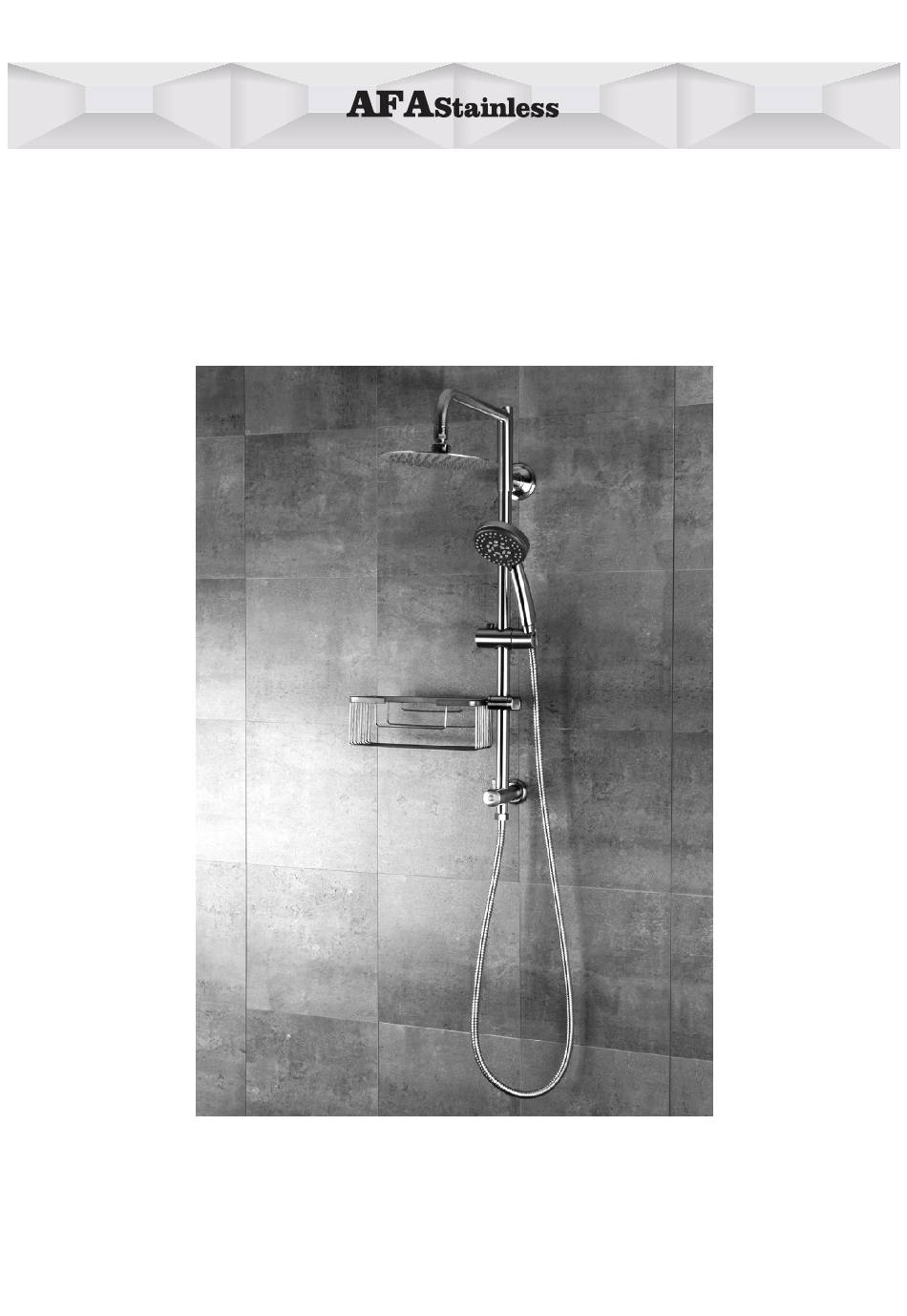

- Page 1 MULTI-FUNCTION HAND HELD & RAIN HEAD SHOWER SYSTEM Owners Manual AFLZ01C AFA USA LLC 3190 Airport Loop Dr Ste B1, Costa Mesa, CA 92626 Toll Free: (877) 778-6888 Monday-Saturday 8 a.m-6 p.m Pacific Time Zone Email: customer.service@afastainless.com...
-
Page 2: Safety Information
If any part is missing or damaged do not attempt to assemble the product and contact AFA Stainless customer service for assistance. WARNING • Follow the installation instructions carefully. Proper installation is the installer’s responsibility. - Page 3 AFLZ01C...
- Page 4 DRAWING 8" 13.78" 6.3" 8" 4" DIMENSIONS: (H)30.45" ×(W)13.78" Hand shower hose:59.05"...
-
Page 5: Parts List
PARTSLIST 1. 3-1/8" Supply Adapter 2. 4" Supply Adapter 3. Shower Arm 4. Shower Pipe 5. Adjustable Hand Shower Holder 6. Mounting Face Plate 7. Anchors 8. Screws 9. Bottom Mounting Bracket 10. Filter Gasket (Pre-installed) 11. Rain Shower Head 12. -
Page 6: Before You Begin
IMPORTANT: please review before installation Ceiling Ceiling Supply Adapter Mixing Valve Trim BEFORE AFTER BEFORE YOU BEGIN Installation of this product requires the following: 1. Minimum distance of 6" between the middle of the supply adapter and the ceiling. 2. Minimum distance of 26" between the supply adapter and the top of the mixing valve trim. -
Page 7: Recommended Tools For Installation
Recommended Tools for Installation: T-1 (Included) T-2(Included) T-3(Included) T-4(Included) Plumber’s Tape 1/2" Allen Wrench 3/32" Allen Wrench Double Sided Tape X 2 1/4 Inch Bit Drill Bit Denatured Alcohol Level Silicone Sealant Electric Drill T-10 T-11 T-12 Tape Measure Phillips Screwdriver Pencil Channel Lock Wrench T-13... -
Page 8: Installation
INSTALLATION CAUTION — TIPS FOR REMOVAL OF OLD SHOWER: Always turn off water supply before removing existing diverter or disassembling the valve. Open shower handle to relieve water pressure and ensure all water has been drained. Option 1: Easy Install（No drilling required） m i n 3 / 8 "... - Page 9 3/32" Use Level T-6 ( Not included ) to adjust Tighten Supply Adapter (1) or (2)with Slide shower arm ange so its ush Shower Arm (3) to 90 degree. set screw using 3/32" Allen Wrench to wall. T-3 ( Included Press the button and take out the Slide the Stainless Bathroom Shelf (14) Press the hand shower holder button...
- Page 10 double sided tape double sided tape 3/32" Remove backing from Double Sided Insert the Mounting Face Plate (6) into Attach Bottom Mounting Bracket (9) Tape T-4 ( Included ) and attach to the the Bottom Mounting Bracket (9) and to the back of Diverter Valve (13). at side of Mounting Face Plate (6).
- Page 11 3/32" 3/32" Tighten set screw on the Shower Use Level T-6 ( Not included ) to adjust Tighten set screw on the side of Arm (3) using the 3/32" Allen Wrench the bottom of diverter in a 90 degree Diverter Valve with 3/32" Allen Wrench T-3 ( Included vertical position and press rmly to the...
- Page 12 Turn on water and test rain head and Place Hand Shower into Hand Shower Holder (5). Press the button and adjust hand shower to ensure there are no holder to a convenient height. connection leaks.
- Page 13 INSTALLATION Option 2 Permanent Installation（Drilling required） m i n 3 / 8 " T-12 Shower wall surface Remove the existing showerhead arm Measurethedistancebetweenthe Wrap 1 (one) layer of Plumber’s Tape by turning it in a counter clockwise T-1(Included) on the threaded side of 3/4”-14 NPT (National Pipe Thread) direction.
- Page 14 3/32" Use Level T-6 ( Not included ) to adjust Tighten Supply Adapter (1) or (2)with Slide shower arm ange so its ush Shower Arm (3) to 90 degree. set screw using 3/32" Allen Wrench to wall. T-3 ( Included T-11 Connect Bottom Mounting Bracket Insert Shower Pipe (4) into the Shower...
- Page 15 1 / 4 ” ( 7 m Remove the Shower Pipe (4). Place Mounting Face Plate (6) on wall Place tip of the drill bit (1/4") against and use Pencil T-11 ( Not included ) to the mounting hole mark on the wall or mark center screw holes on wall.
- Page 16 Slide the Stainless Bathroom Shelf (14) Press the hand shower holder button Insert Shower Pipe (4) into the bottom onto Shower Pipe (4) and adjust to and slide Hand Shower Holder (5) of Shower Arm (3). to Shower Pipe (4). the convenient height.
- Page 17 T-13 3/32" Use Allen Wrench 3/32" to tighten set Remove the protective cap from Rain Tighten Rain Shower Head into screw on Bottom Mounting Bracket Shower Head (11). Shower Arm (3) with Adjustable Wrench (9) . T-13( Not included Remove the protective cap from the Place Hand Shower into Hand Shower Turn on water and test rain head and bottom of diverter, and connect the end...
- Page 18 INSTRUCTIONS DIVERTER • To use the rain showerhead, turn the handle to the right position. • To use the hand shower, turn the handle to the left position. handle handle handle Flow to Flow to Hand shower Showerhead MULTI-FUNCTION HAND SHOWER Adjustable spray patterns Wide Rain/Power Massage/Stay-Warm Mist Wide Rain Power Massage...
- Page 19 Adjust Rain Shower Head NOTE: Adjust shower head down to desired ngle with adjustable wrench. Adjust Hand Held Shower Press button on hand shower holder (5) and then To adjust the angle of hand held shower, simply turn slide up or down the shower pipe (4) to the desired the hand shower in either direction.
- Page 20 CLEANING AND CARE OF FILTER GASKET Filter gasket Remove the showerhead from the The lter gasket is located at the Remove the lter gasket from the ball shower arm by unscrewing the ball opening of the showerhead ball joint. If necessary, use needle-nose joint in a counter-clockwise direction.
- Page 21 Remove the hand shower hose from The lter gasket is located in the Flush the lter gasket with water. bottom of diverter valve in a bottom of the hose.Remove the lter counter-clockwise direction. gasket from the hose. If necessary, use needle-nose pliers (not provided). Take care not to use excessive force when grasping the lter gasket to avoid potential damage.
-
Page 22: Cleaning And Care
CLEANING & CARE AFA stainless uses high quality silicon nubbins that ensure a consistent, evenly distributed water spray. Note: In areas that have hard water, its common to have Calcium and Lime deposits clog up the nubbins. Please refer to the Cleaning & Care Instructions. -
Page 23: Lifetime Limited Warranty
This warranty applies only to AFA Stainless products installed in the USA. If a defect is found in normal residential use, AFA Stainless will, at its election, repair, replace or make appropriate adjustment.
