Sylvania Galleon Mini Darkening Shield Quick Start Manual

Galleon Mini Darkening Shield
1

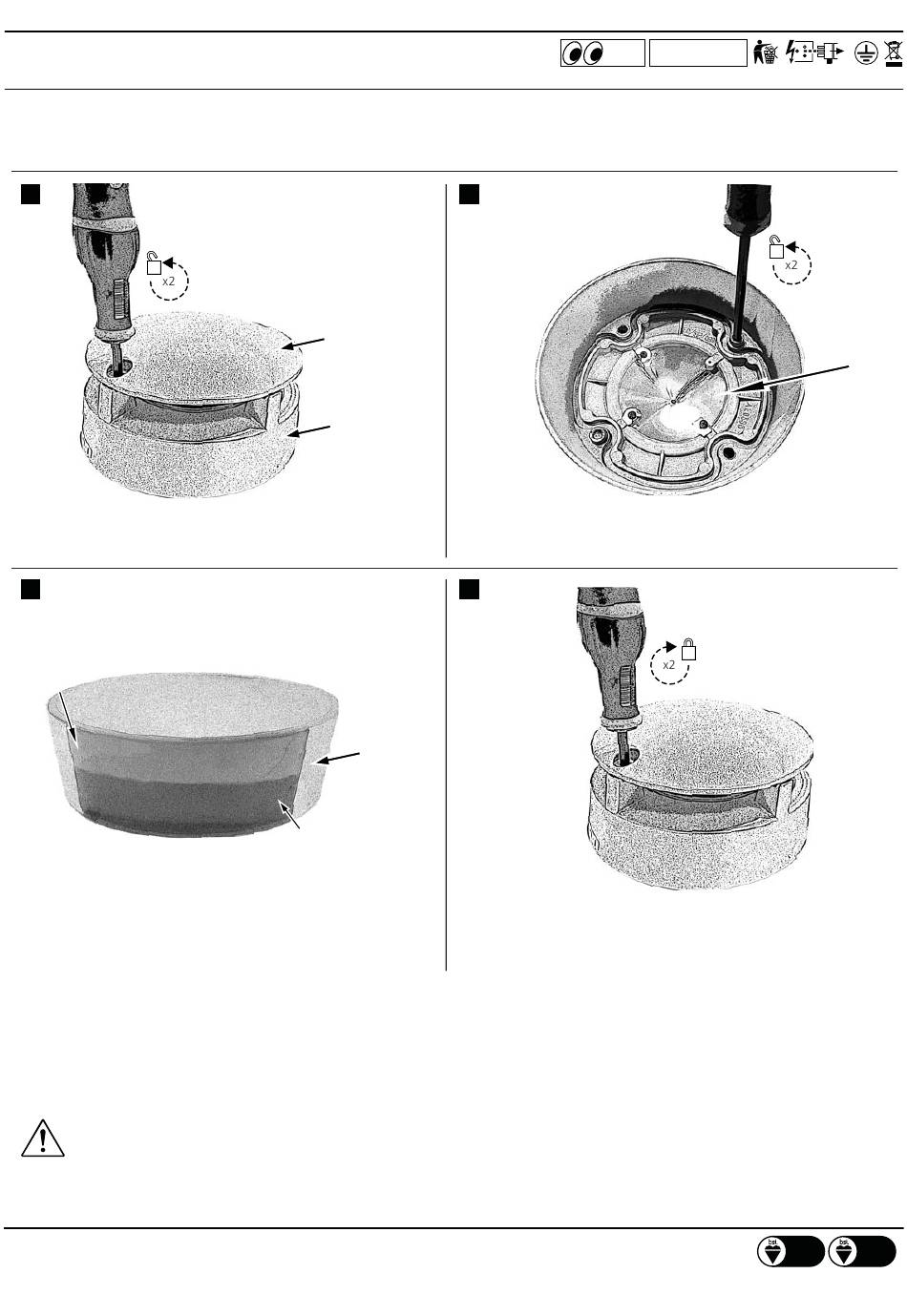

- Loosen the two screws on the cap and open the unit.
- Disconnect the electrical wires and separate the base from
the rest of the body.
3
Double-sided tape towards top
- Stick the double-sided tape to the shade element.
- Remove the top film from the tape on the shade element
and stick it inside the screen, keeping the double-sided tape
towards the top and making sure that the lower edge of the shade
element is lined up with the lower edge of the screen.
CAREFULLY CHECK THE CONDITION OF THE GASKETS BEFORE CLOSING THE UNIT. IF THEY ARE DEFORMED OR DAMAGED IN ANY WAY, REPLACE THEM.
ALSO CHECK THAT THEY ARE PROPERLY SEATED.
Concord
2
Cap
Body
- Loosen the two screws in the body and remove the screen and the
4
Screen
Shade element
- Reassemble the screen and screw on the cap from inside the body.
- Reconnect the wires and close the unit by tightening the screws
Feilo Sylvania Europe LTD
Avis Way, Newhaven East Sussex BN9 0ED UK
www.feilosylvania.com
IS500
cap, being careful not to deform the reflector.
on the cap.
