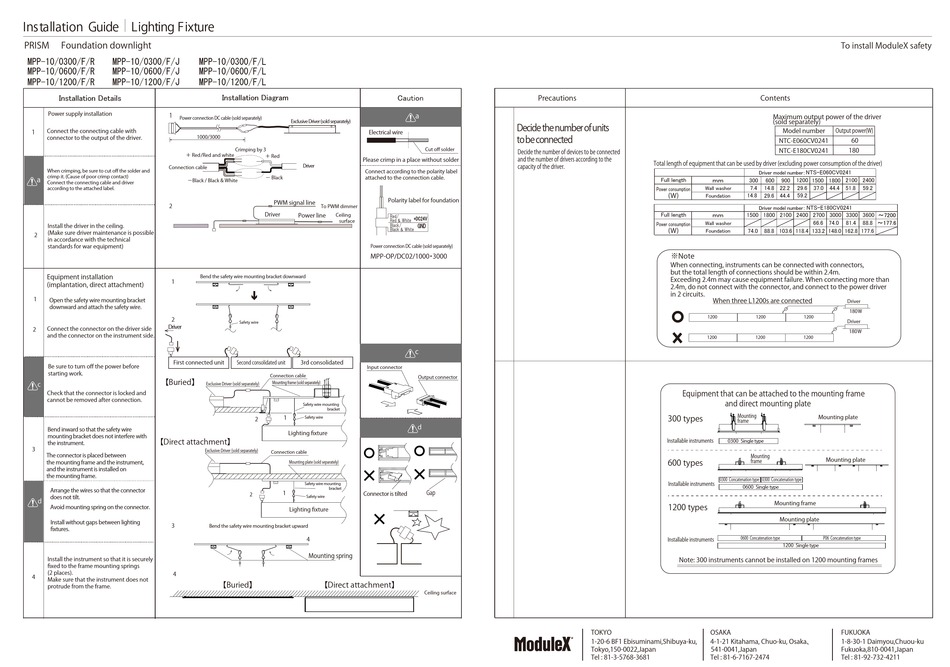

Modulex MPP-10/0300/F/R Installation Manual page 2

Installation Guide Lighting Fixture
PRISM Foundation downlight
MPP-10/0300/F/R MPP-10/0300/F/J MPP-10/0300/F/L
MPP-10/0600/F/R MPP-10/0600/F/J MPP-10/0600/F/L
MPP-10/1200/F/R MPP-10/1200/F/J MPP-10/1200/F/L
Installation Details
Power supply installation
1
Power connection DC cable (sold separately)
1 Connect the connecting cable with
connector to the output of the driver. 1000/3000
＋ Red /Red and white
Connection cable
When crimping, be sure to cut off the solder and
crimp it. (Cause of poor crimp contact)
a
−Black / Black & White
Connect the connecting cable and driver
according to the attached label.
2
Install the driver in the ceiling.
(Make sure driver maintenance is possible
2
in accordance with the technical
standards for war equipment)
Equipment installation
Bend the safety wire mounting bracket downward
1
(implantation, direct attachment)
1
Open the safety wire mounting bracket
downward and attach the safety wire.
2
Driver
2 Connect the connector on the driver side
and the connector on the instrument side.
First connected unit
Be sure to turn off the power before
starting work.
【Buried】
c
Check that the connector is locked and
cannot be removed after connection.
Bend inward so that the safety wire
mounting bracket does not interfere with
【Direct attachment】
the instrument.
3
The connector is placed between
the mounting frame and the instrument,
and the instrument is installed on
the mounting frame.
Arrange the wires so that the connector
does not tilt.
d
Avoid mounting spring on the connector.
Install without gaps between lighting
3
fixtures.
Install the instrument so that it is securely
fixed to the frame mounting springs
(2 places).
4
4
Make sure that the instrument does not
protrude from the frame.
Installation Diagram
Exclusive Driver (sold separately)
Electrical wire
Crimping by 3
＋ Red
Please crimp in a place without solder
Driver
Connect according to the polarity label
− Black attached to the connection cable.
PWM signal line
To PWM dimmer
Driver
Power line
Ceiling
surface
Power connection DC cable (sold separately)
MPP-OP/DC02/1000 ・ 3000
Safety wire
Second consolidated unit 3rd consolidated
Input connector
Connection cable
Mounting frame (sold separately)
Exclusive Driver (sold separately)
Safety wire mounting
bracket
1
2 Safety wire
Lighting fixture
Exclusive Driver (sold separately)
Connection cable
Mounting plate (sold separately)
Safety wire mounting
bracket
1
Connector is tilted
2
Safety wire
Lighting fixture
Bend the safety wire mounting bracket upward
4
Mounting spring
【Buried】 【Direct attachment】
Precautions
Caution
a
Decide the number of units
to be connected
Cut off solder
Decide the number of devices to be connected
and the number of drivers according to the
capacity of the driver.
Polarity label for foundation
c
Output connector
d
Gap
Ceiling surface
Total length of equipment that can be used by driver (excluding power consumption of the driver)
Full length 300
Wall washer 7.4
Power consumption
(W)
14.8
Foundation
Full length 1500
Wall washer
Power consumption
(W)
Foundation 74.0
※Note
When connecting, instruments can be connected with connectors,
but the total length of connections should be within 2.4m.
Exceeding 2.4m may cause equipment failure. When connecting more than
2.4m, do not connect with the connector, and connect to the power driver
in 2 circuits.
When three L1200s are connected
1200
1200
Equipment that can be attached to the mounting frame
and direct mounting plate
300 types Mounting
frame
Installable instruments
0300 Single type
600 types
0300 Concatenation type
Installable instruments
0600 Single type
1200 types
0600 Concatenation type
Installable instruments
Note: 300 instruments cannot be installed on 1200 mounting frames
TOKYO OSAKA
R 1-20-6 BF1 Ebisuminami,Shibuya-ku, 4-1-21 Kitahama, Chuo-ku, Osaka、
Tokyo,150-0022,Japan 541-0041,Japan
Tel : 81-3-5768-3681 Tel : 81-6-7167-2474
To install ModuleX safety
Contents
Maximum output power of the driver
(sold separately)
Model number Output power(W)
NTC-E060CV0241 60
NTC-E180CV0241 180
NTS-E060CV0241
600 900 1200 1500 1800 2100 2400
14.8 22.2 29.6 37.0 44.4 51.8 59.2
29.6 44.4 59.2
NTS-E180CV0241
1800 2100 2400 2700 3000 3300 3600
66.6 74.0 81.4 88.8
88.8 103.6 118.4 133.2 148.0 162.8 177.6
Driver
180Ｗ
1200 1200
Driver
180Ｗ
1200 1200
Mounting plate
Mounting
Mounting plate
frame
0300 Concatenation type
Mounting frame
Mounting plate
P06 Concatenation type
1200 Single type
FUKUOKA
1-8-30-1 Daimyou,Chuou-ku
Fukuoka,810-0041,Japan
Tel : 81-92-732-4211
