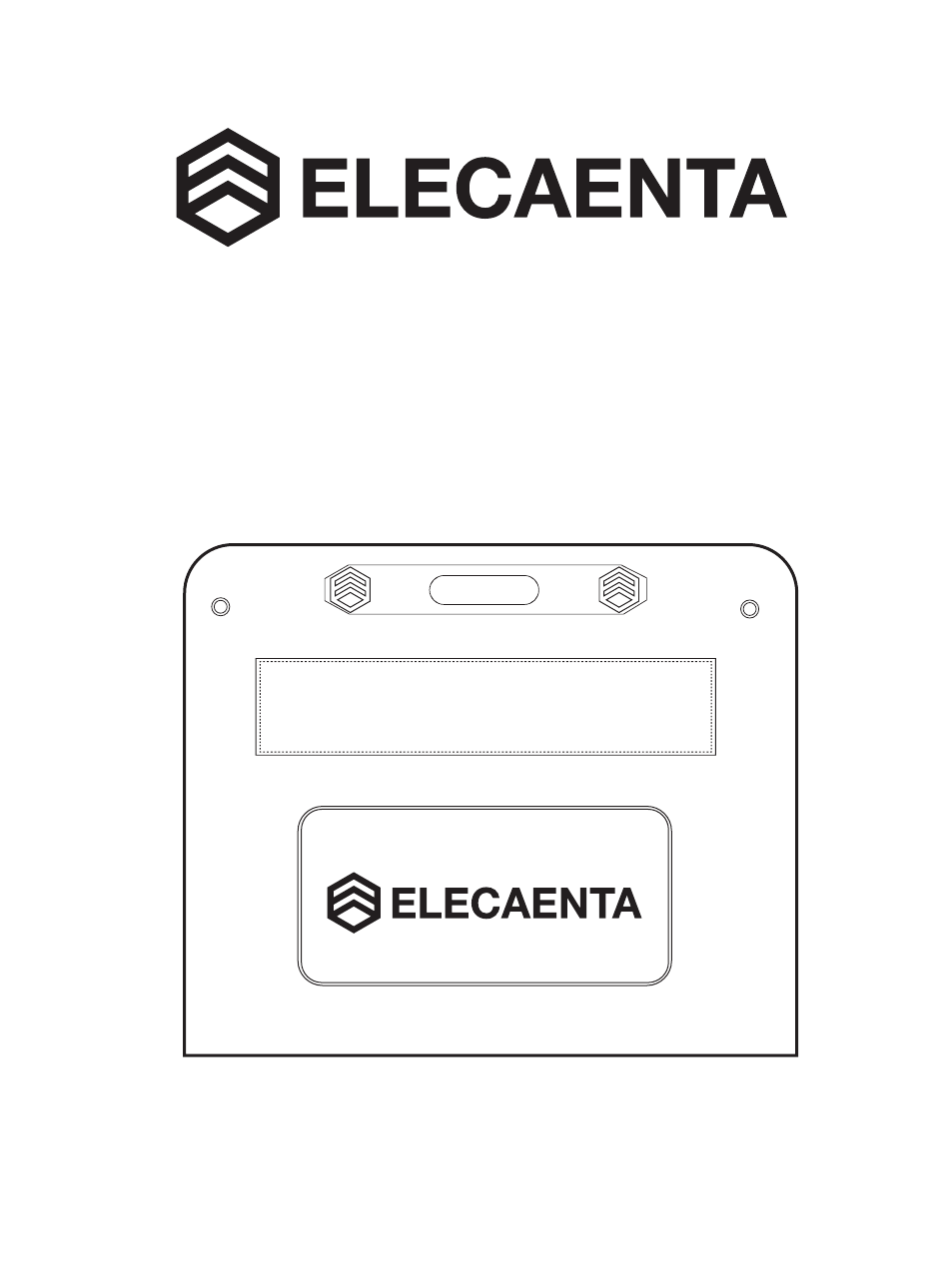

- Page 1 300W PORTABLE SOLAR PANEL USER MANUAL Model: Uranus-300 Contact Us: support@caenta.com 24 Months Warranty...
-
Page 2: Product Introduction
Product Introduction ELECAENTA Uranus-300 300W Portable solar panels are a great way to recharge your RV batteries (power stations) when dry camping. Whether you’re looking for easy-to-set portable solar panels for RV, hiking, or camping, ELECAENTA will see you through your adventure —... -
Page 3: What's In The Box
ELECAENTA 300W Solar Panel Specifications Model Uranus-300 Solar Cell Type Monocrystalline Silicon Panel Material Ultra-light Flexible ETFE Conversion Efficiency Up to 24% Peak Power 300W Voltage Current 7.69A Folded Size 62*72*4cm Expanded Size 236*72*2cm Weight 6.3KG Waterproof Level IP54 Operate Temperature -10～65℃... -
Page 4: Operation Guidance
Operation Guidance 1.Unfold the solar panel. Spread and stabilize it under direct sunlight and ensure it is facing towards the sun. 2.Elevate the solar panel above the ground by using the kickstands. This will help to adjust to the optimal angle facing towards the sun and prevent from overheating by increasing airflow. - Page 5 Male XT60 Output The product is male XT60 output ports.
- Page 6 3M Female XT60 to Female XT60 Cable The product comes with a 3-meters long XT60 cable. You can start charging by directly connecting to an electronic device that supports XT60 input. 2-in-1 Cable (Male XT60 to Anderson/8020) There is a 2-in-1 cable in the package for your extensive use. It has one Anderson Port and one 8020 port.
- Page 7 Connecting the Solar Panels in Parallel or in Series Wire Solar Panels in Parallel Using MC4 cables for parallel connection: (I).First, connect the solar panel with the 3M female XT60 to female XT60 cable. Ⅰ (II).Second, connect the female XT60 cable to the male XT60 to MC4 cable (included in the package), and do the same steps for the other solar panel.
- Page 8 (III).Then, find the 4 poles (2 positive poles and 2 negative poles), connect them with the MC4 Solar Connectors Y Branch Parallel Cable (sold separately); (IV).Finally, connect the Solar MC4 parallel connection cable to MC4 input cable that can charge your unit to charge your unit. Solar MC4 parallel connection cable (sold separately) Ⅳ...
- Page 9 Wire Solar Panels in Series Using MC4 cables for series connection (I).First, connect the solar panel with the 3M female XT60 to female XT60 cable. Ⅰ (II).Second, connect the female XT60 cable to the male XT60 to MC4 cable (included in the package);...
- Page 10 (III).Then, connect the male connector of the MC4 cable to the female connector of the other MC4 cable; (IV)Finally, connect the MC4 input cable that can charge your unit to charge your unit. Ⅲ Ⅳ...
-
Page 11: Precautions For Use
Precautions for Use 1. When charging with solar panels, the strong sun may cause the solar panels to heat up, so please be careful, otherwise you may get burned when you touch it. 2. This solar panel works best when it is sunny. In cloudy or shaded areas, the operating efficiency may be reduced. - Page 12 Please Do Not Do the Below Behavior. The below behavior of damaging the solar panel will cause the solar panel to crack, reduce its efficiency, or even become unusable. The free warranty period does not cover damage caused by improper use of the product. FAQ: ●Why doesn’t my solar panel reach its rated 300W? When a solar panel is actually being used, it is normal that the actual power does not...
- Page 13 Yes, but please confirm the input port of your power station. The output port of ELECAENTA 300W solar panel is XT60, and there are a XT60 to MC4 cable, it can compatible with most solar generators on the market.
- Page 14 ★ Premium Extended Warranty Plan: 24-month warranty →36-month warranty ★ To participate in the Extended Warranty Program, simply email your Order Number to ELECAENTA Customer Support for product registration. You will have the opportunity to upgrade the 2 year warranty to 3 years for free! ★...
