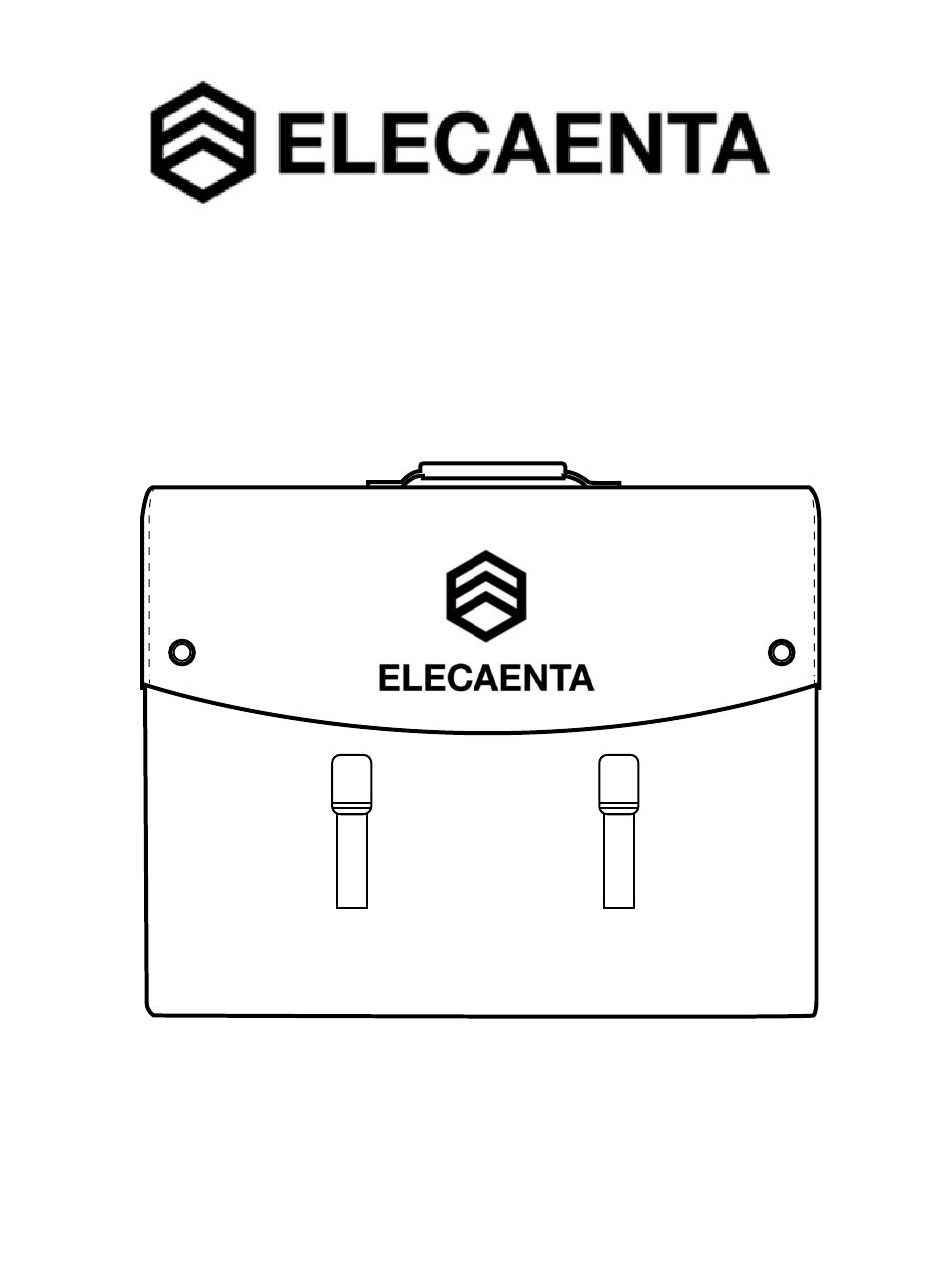

- Page 1 120W PORTABLE SOLAR PANEL USER MANUAL Model: LSFC-120 Contact Us: support@caenta.com 12 Months Warranty...
-
Page 2: Product Introduction
Product Introduction ELECAENTA LSFC-120 120W foldable solar panel can provide clean, renewable and economical power to your electronic devices. In addition to charging small USB electronic devices (such as smartphones, laptops, mobile batteries and portable fans), it can also charge DC devices such as (such as portable power stations). -
Page 3: What's In The Box
ELECAENTA 120W Solar Panel Specifications Model LSFC-120 Solar Cell Type Monocrystalline Silicon Panel material ETFE Conversion Efficiency Up to 24% Nominal Capacity 120W Voltage 18V (Open Circuit Voltage: 23-25V) Current 6.6A (Short-Circuit Current: 7.2A) USB-QC 3.0 Output 5V/3.4A、9V/2.5A、12V/2A (MAX) PD 45W USB C Output 5V/4.5A、9V/3A、12V/3A、15V/3A (MAX) PD45W... -
Page 4: Operation Guidance
Operation Guidance 1.Unfold the solar panel. Spread and stabilize it under direct sunlight and ensure it is facing towards the sun. When the solar panel senses sunlight, the red LED indicator on the junction box will light up. 2.Elevate the solar panel above the ground by using the kickstands. This will help to adjust to the optimal angle facing towards the sun and prevent from overheating by increasing airflow. - Page 5 DC Output The product comes with a 3-meters long DC cable, and the size of this DC plug is 5.5 * 2.1mm. You can start charging by directly connecting to an electronic device with a 5.5 * 2.1 mm DC input port. 10 DC Size Conversion Plugs If the DC plug size of your device to be charged is different from the one of the solar panel, you can choose 1 from the rest 10 DC size conversion plugs that come with the...
- Page 6 3-in-1 Cable (DC5521 to Anderson/ XT60/ 8020) There is a 3-in-1 cable in the package for your extensive use. It has one Anderson port, one XT60 port and one 8020 port. DC5521 to MC4 Cable There is a DC5521 to MC4 cable in the package, which can be connected to MC4 cable of your product to charge your device.
-
Page 7: Fast Charging
USB QC 3.0 Output for Fast Charging There is a USB QC 3.0 output on the solar panel (5V/3.4A, 9V/2.5A, 12V/2A max) USB QC 3.0 Fast Charging PD 45W USB C Fast Charging There is a USB C output on the solar panel (5V/4.5A, 9V/3A, 12V/3A, 15V/3A max. PD 45W ) 45W USB C Fast Charging... - Page 8 Connecting the Solar Panels in Parallel or in Series Wire Solar Panels in Parallel 1. Paralleling directly using our DC5521 solar parallel connection cables (sold separately); 2. If using MC4 cables for parallel connection: (I). First, connect the DC5521 cable on the solar panel with the DC5521 to MC4 cable (included in the package), and do the same steps for the other solar panel.
- Page 9 Wire Solar Panels in Series Using MC4 cables for series connection (I). First, connect the DC5521 cable on the solar panel with the DC5521 to MC4 cable (included in the package). (II). Then, connect the male connector of the MC4 cable to the female connector of the other MC4 cable;...
-
Page 10: Precautions For Use
Precautions for Use 1. When charging with solar panels, the strong sun may cause the solar panels to heat up, so please be careful, otherwise you may get burned when you touch it. 2. This solar panel works best when it is sunny. In cloudy or shaded areas, the operating efficiency may be reduced. - Page 11 Please Do Not Do the Behavior Below The below behavior of damaging the solar panel will cause the solar panel to crack, reduce its efficiency, or even become unusable. The free warranty period does not cover damage caused by improper use of the product. FAQ: ●Why doesn’t my solar panel reach its rated 120W? When a solar panel is actually being used, it is normal that the actual power does not...
- Page 12 Yes, but please confirm the input port of your power station. The DC output size of ELECAENTA 120W solar panel is 5.5*2.1mm, and there is a DC5521 to MC4 cable, a 3-in-1 DC5521 to Anderson/XT60/DC8020 cable, it can compatible with most solar generators on the market.
- Page 13 ● Can I connect ELECAENTA 120W solar panel and other brand solar panels together in parallel or in series ? No, you can't do that. Different solar panels have different output voltages and currents, so when the panels are connected in parallel or in series, the solar panels can be damaged.
-
Page 14: Warranty Information
Warranty Extension Plan: 12-month warranty →24-month warranty To participate in the Warranty Extension Program, please send your Order Number to ELECAENTA Customer Support Email. You will get a chance to upgrade one year warranty to two years for free!
