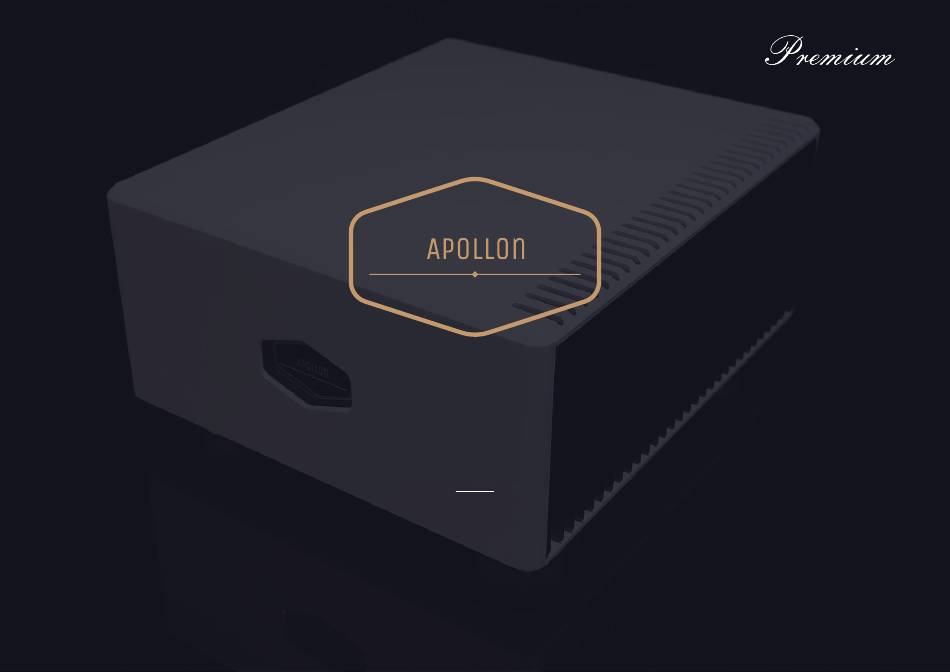

- Page 1 APOLLON AUDIO PNC1200 MONOBLOCK REFERENCE MANUAL HANDMADE IN SLOVENIA - EUROPE V 1.0 2022...
-
Page 2: Table Of Contents
Table of contents Safety warnings EXPERIENCE SOUND Introduction THAT PUTS A SMILE Front panel controls ON YOUR FACE Back panel connections Connectivity diagram Technical specifications Components... -
Page 3: Safety Warnings
Safety warnings 1. Please read and follow these instructions before using the amplifier. 2. Do not use this apparatus near water. 3. Clean only with a dry cloth. 4. Do not block any ventilation openings. 5. Do not install near any heat sources (including amplifiers)that produce heat. 7. -
Page 4: Introduction
At Apollon Audio we use only the best materials and connectors available on the market and also give you the option of configuring the enclosure to what suits you the best. -
Page 5: Front Panel Controls
Front panel LOGO WITH LED LIGHT Brightness control for led front light Power ON/OFF button (off, 30%, 60%, 100%) -
Page 6: Back Panel Connections
Back panel Line Input (XLR) Trigger Input select Power Input 230V or 110V RCA Input Gain setting(db) Speaker output Turn power off before inserting or removing cables. When rack mounting it is recommended to leave space above the unit to allow free air circulation. -
Page 7: Connectivity Diagram
Connectivity diagram Trigger optional 230V 110V Power Input 110V RCA or XLR RCA or XLR Audio source... -
Page 8: Technical Specifications
Technical specifications True Mono Design Frequency Response: 0 – 50k Hz +0/-3dB Low Distortion: THD+N – – 0.0005 % 20Hz-20kHz High Input Impedance 100K Signal to noise ratio: 137dB 28 dB Gain Ultra High Damping Factor High Current Output Max 40A Capable of driving 2ohm (for the Most Demanding of Speakers) Power rating: 1200W @ 2ohm | 700W @ 4ohm | 400W @ 8ohm Case Dimensions: 350mm depth x 156mm height (with feet) x 280 mm width Weight: 11 kg... -
Page 9: Components
Components Hypex SMPS1200A700 (2 pcs.) Purifi 1ET7040SA amplifier (2 pcs.) Apollon Audio PET Input Buffer Board (2 pcs.) Weiss OP2-BP Op Amp (4 pcs.) Linear Power supply with LT3045/LT3094 (2 pcs.) Apollon Control Board for standby control Neutrik silver plated XLR line input socket (2 pcs.) WBT 0703 AG binding posts (4 pcs.) - Page 10 Apollon Audio d.o.o. info@apollonaudio.com I www.apollonaudio.com...
