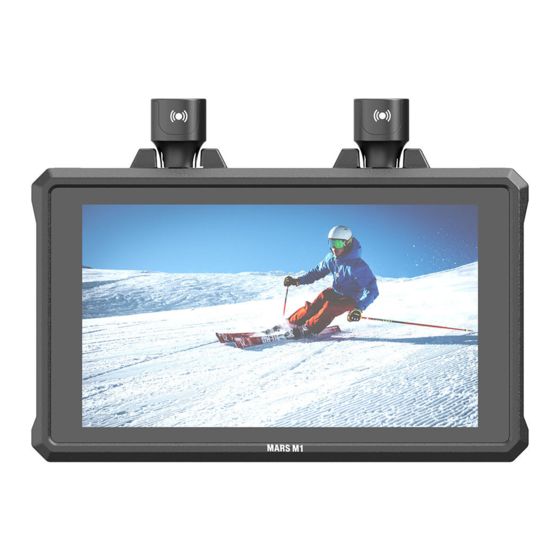

Mars M1
User Guide
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mars M1 and is the answer not in the manual?

Questions and answers

Related Manuals for Hollyland Mars M1

Summary of Contents for Hollyland Mars M1

  • Page 1 Mars M1 User Guide V1.0...

  • Page 2: Specifications

    Specifications Category Item Details Size & Interface Weight 380g (without antenna) Size 152*96*40mm (without antenna) Interface DC IN: 2.0mm Power Port DC OUT: 2.0mm Power Port SDI IN: 3G SDI HDMI IN: HDMI 1.4b HDMI OUT: HDMI 1.4b TYPE C: USB 2.0 OTG 3.5mm Headphone Monitor Interface Antenna: SMA Male Port Wireless...
  • Page 3 Output Video Format TX HDMI： 720p 50/59.94/60Hz 1080i 50/59.94/60Hz 1080p 23.98/24/25/29.97/30/50/59.94/60Hz 3840*2160p 23.98/24/25/29.97/30Hz 4096*2160p 23.98/24/25/29.97/30Hz RX HDMI： 720p 50/59.94/60Hz 1080i 50/59.94/60Hz 1080p 23.98/24/25/29.97/30/50/59.94/60Hz Color Depth Mode 8bit, RGB limit/full，YUV444/422 Input Audio Format SDI Embedded 2 channels， HDMI Embedded up to 8 channels Output Audio Format HDMI Embedded up to 8 channels Transmission...

  • Page 4: Packing List

    2. Packing List Name 1. Monitor 2. Capsule Antenna 3. Tempered Glass Screen Protector 4. OTG Adapter 5. D-Tap to DC Cable 6. User Manual 7. Warranty Card...

  • Page 5: Interface & Keys

    3. Interface & Keys Interface Function 1. 3.5mm Earphone Interface Monitor the audio through 3.5mm TRRS earphone 2. 1/4 Screw Hole Mount horizontally on camera through magic arm 3. USB Interface USB upgrade, 3D-LUT import 4. Power, Lock Screen Key Long-press 3s to power ON/OFF;...

  • Page 6: Status Display

    4. Status Display Status Detail 1. Device Mode Current mode: 【Transmitter】/【Receiver】 2. Channel Mars M1 current channel 3. Connection RX1/RX2 connection signal 4. Video Input Format Video Input: Display current video input format No Video Input: Display 【NO VIDEO】 5. LUT name display Displays the loaded LUT file name 6.
  • Page 7 5. Setting Tip: Click 【Setting】 icon in the bottom right corner to enter the menu Transmitter Status:...
  • Page 8 Receiver Status: Display Settings：...

  • Page 9: Channel Switch

    TX or RX mode. 5.3. Pair Operation: (1) Mars M1 as a TX/RX to enter the menu【Wireless Settings】--> 【Pair】 --> Click Pair (2) RX/TX to enter the pairing mode. Note: TX and RX need to enter pairing mode at the same time.

  • Page 10: Language Setting

    5.5. Brightness Operation: Enter menu 【Display Settings】--> 【Brightness】 --> Drag the slider to adjust brightness 5.6. Volume Operation: Enter menu 【Display Settings】--> 【Volume】 --> Drag the slider to adjust the monitoring volume 5.7. UV Display Settings UV Display: Display/Turn off【Audio Level Display】 Operation: Enter menu 【Display Settings】-->...

  • Page 11: Function Description

    Function description Features Details 1. Waveform (WFM) Display the distribution of brightness or black and white information in the image in the horizontal direction, press and drag the waveform to change the display position of the waveform 2. Vectorscope Displays the degree of saturation of each color in the image, press and drag the vector map to change the display position of the vector map 3.
  • Page 12 7. RGB & Gray In "Gray" mode, all colors are disabled and the image only displays a gray image. In "Red", "Green", "Blue" mode, only the corresponding color in the image is displayed 8. Cropping Block the upper and lower sides of the image according to the set aspect ratio to change the aspect ratio of the image.
  • Page 13 14. Horizontal/vertical Flip Mirror the screen horizontally or vertically 15. Assistive Grid You can turn on/off the Jiugongge auxiliary composition Turn on the recording mode in the settings, 16. record click the record button to record a video of up to 3 minutes 17.
  • Page 14 ①【3D-LUT】Function switching, import operate: ● Put the LUT file into the U disk formatted as FAT32, and use the OTG adapter to connect the U disk to the [USB-C] interface of Xiaojian ● Click the [LUT icon] of Xiaojian, select [LUT import], and wait for the system to retrieve the LUT file to be loaded in the U disk Note: The suffix of the LUT file must be [.cube], and the file name cannot exceed 128 letters...
  • Page 15 7.2. LUT application operate: ● Click the LUT icon to apply the LUT file on the F1 button by default ● Click other buttons to apply the LUT on the corresponding button ● Click the selected button again to close the corresponding LUT application ●...
  • Page 16 V2.1.0.3 version 8. Recording mode（After ） 8.1、Enable recording mode operate: ● Click the Settings button ● Select Display Settings at the top to enter the Display Settings interface ● Click the record mode switch on the display interface to turn on/off the record mode ●...
  • Page 17 Lens :Ver.02 ILCE-7SM2 Ver.3.01 Lens :Ver.02 C500 Mark II 1.0.5.1 Canon Lens EOSR5 Ver.1.4.0 Lens 1.0.2 Canon 5D MarkIV Ver.1.2.1 Lens :Ver.1.0.2 BMPCC 6K Ver 7.3 FUJIFILM XS-10 8.2、Record operate: ● Click the red record button on the right side of the screen to start recording, the screen will have a red border during the recording process ●...

  • Page 18: Installation

    4. Sun Shield Shield from direct sunlight when used outdoors 5. Monitor Connect to big monitor to review 6. Hand Shank Mount it to handle the Mars M1 easily 7. USB Disk Connect USB flash disk to upgrade.
  • Page 19 Power by V-mount / G-mount battery 3. DC Adapter Powre by DC Adapter (6~16V) 4. Shoulder Girdle Mount it to hang Mars M1 over your shoulder 5. Tripod Mount it to the tripod when using as RX 6. Cold shoe to Camera Mount it on the camera cold shoe when using as TX 7.
  • Page 20 Connect to camera output as monitor (also a TX) 1. Connect to Camera as TX 2. Mars M1 as RX Mars M1 as RX to monitor (Can also output to big monitor) 3. Connect to Mars 4K RX Connect to Mars 4K RX to monitor...
  • Page 21 The WIFI name is 【"HLD_"+"SN"】. You can check the wifi info on 【Device Info】 WiFi default password: 12345678 Operation: ● Set Mars M1 to【Transmitter】 mode ● Open WIFI setting on smartphone, and search WIFI name 【HLD_XXXXXXX】 ● Connect WIFI enter default password: 12345678...
  • Page 22 10. Scan Channels (Only work in Receiver mode) Operation: Enter menu 【Wireless Settings】--> 【Channel Switch】 --> Click 【Scan】 to check the clean channel.
  • Page 23 1. When in receiver mode, Mars M1 SDI IN without output? A: The SDI port on Mars M1 is SDI IN, so it only work as Transmitter Mode, in Receiver mode it won't work. 2. Why it show "x" on one of signal icon when working in TX mode? A: Mars M1 support 2 RX when working in TX mode, so if you only connect 1 RX, the other signal icon will show "x".
  • Page 24 4. Does Mars M1 support 4K input and output? A: Mars M1 supports up to 4K30 input but it only shows 1080p on the screen, and it just transmit 1080p when as transmitter. 5. How to Import LUT file to Mars M1? ●...
  • Page 25 ● Scan channels on RX to check whether there is interference. 11. How can I use Mars M1 to power my Camera through DC out interface? A: DC OUT can power the camera when power via NP-F battery or DC IN. You just need a 2.0mm DC Port to...
  • Page 26 12. Does Mars M1 supports decimal / fractional video format? A: Mars M1 supports HDMI / SDI input decimal video format such as 23.98/29.97/59.94, and output decimal video format from HDMI out.
