Chipset Communication UDS-3C21 Quick Installation Manual

Introduction

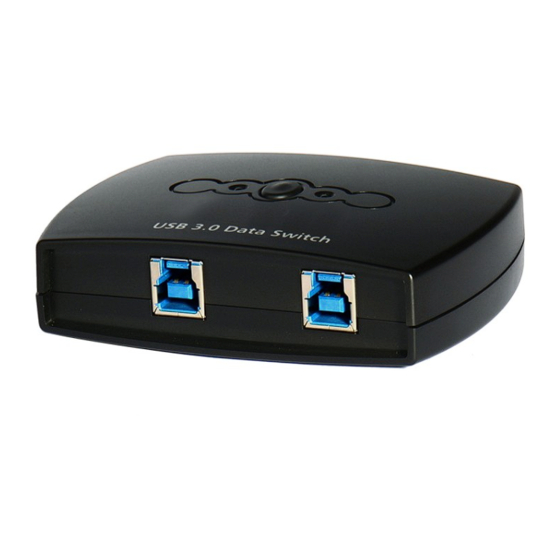

The intelligent USB 3.0 Data Switch allows you sharing a single USB 3.0 peripheral with 2/4 different computer
systems, avoiding the cost of purchasing duplicate peripherals or the hassle of swapping cables from one system to
another.
This unit delivers speed and flexibility, with simple push-button controls for switching between computers, and
supports Super Speed USB bandwidth (up to 5 Gbps) ensuring fast data transfers to/from your shared peripheral
device. The switch is also backward compatible with USB 2.0/1.1 (480Mbps, 12Mbps respectively), so you don't
have to worry about your computer or older peripherals not performing.
The switch can also be connected to a USB hub, to expand the number of devices you can share between the 2/4
connected systems, or to a USB drive enclosure or docking station, for a shared external storage solution..
Features
USB 3.0 data transfer rates up to 5 Gbps
Fully Compliant with USB specification 1.1, 2.0 and 3.0
Push-button controls for switching between computers
By bus powered, no additional power adapter required
Compatible OS thru USB 2.0: Windows 98SE /ME /2000 /XP /Vista /7 /8 /8.1 /10 /11; Mac OS 8.6 or higher
Compatible OS thru USB 3.0: Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11; Mac OS X Mountain Lion or higher
Plug-and-Play, no software or drivers required
Specification
Model No.
Data Transfer Rate
LED
PC Selector
USB Specification
Connector
Power Mode
Extension Cable Length
Housing
Dimension (L x W x H)
USB 3.0 2-Port/4-Port Data Switch
Quick Installation Guide
1.5M / 12M / 480M / 5G bps
USB 1.1/2.0/3.0 compliant
Upstream USB 3.0 B Female x 2
Downstream
Input
Output
UDS-3C21
2
Push button
USB 3.0 A Female
Bus powered
Max. 2m
Max.1m
Plastic
95 x 69 x 26 mm
UDS-3C41
1.5M / 12M / 480M / 5G bps
4
Push button
USB 1.1/2.0/3.0 compliant
USB 3.0 B Female x 4
USB 3.0 A Female
Bus powered
Max. 2m
Max.1m
Plastic
95 x 69 x 26 mm
