Introduction
The intelligent USB 3.0 Data Switch allows you to share a single USB 3.0 peripheral with 2 different computer
systems, avoiding the cost of purchasing duplicate peripherals or the hassle of swapping cables from one system to
the others. Functions simple port selection via push button whether one of the two hosts is disconnected. The
working memory (last channel setting) won't be terminated no matter the unit shutdown and restarted. (Default
setting is switched to PC1 after powered on the unit; and then it will change to the last channel setting after
restarting the unit.)
The switch can also be connected to a USB hub, to expand the number of devices you can share between the 2
connected systems, or to a USB drive enclosure or docking station, for a shared external storage solution.
Features
USB 3.0 data transfer rates up to 5 Gbps
Fully Compliant with USB specification 1.1, 2.0 and 3.0
Functions simple port selection via push button whether one of the two hosts be disconnected
Supports memory function, the working memory won't be terminated no matter the unit shutdown and
restarted
Easily wall mounting design (two hook holes and magnet attached)
By bus powered, no additional power adapter required
Compatible OS thru USB 2.0: Windows 98SE / ME / 2000 / XP / Vista / 7 / 8 / 8.1 /10 / 11;Mac OS 8.6 or higher
Compatible OS thru USB 3.0: Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11; Mac OS X Mountain Lion or higher
Plug-and-Play, no software or drivers required
Specification
Model No.
Data Transfer Rate
LED
PC Selector
USB Specification
Connector
Power Mode
Extension Cable Length
Environmental
Housing
Dimension (L x W x H)
2-Port USB 3.0 Data Switch
Quick Installation Guide
Upstream
Downstream
Input
Output
Operating Temperature
Storage Temperature
Humidity
USB-DS32
1.5 / 12 / 480 / 5G bps
2
Push button
USB 1.1 / 2.0 / 3.0 compliant
USB 3.0 B Female x 2
USB 3.0 A Female
Bus powered
Max. 2m
Max. 1.5m
0–40°C
-20–60°C
0–80% RH, Non-condensing
Plastic
106 x 56 x 25 mm
Advertisement
Table of Contents
Related Manuals for Chipset Communication USB-DS32
Summary of Contents for Chipset Communication USB-DS32
- Page 1 Compatible OS thru USB 3.0: Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11; Mac OS X Mountain Lion or higher Plug-and-Play, no software or drivers required Specification Model No. USB-DS32 Data Transfer Rate 1.5 / 12 / 480 / 5G bps PC Selector...

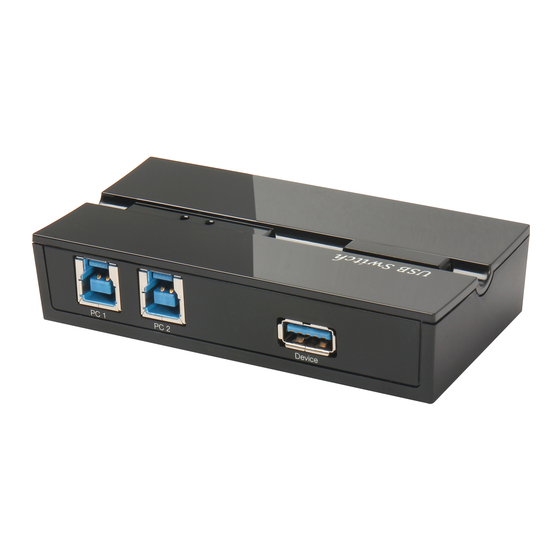

- Page 2 Physical Diagram USB-DS32 Upper LED indicator (PC1, PC2) Push button (PC selector) Front USB 3.0 port (to Device) USB 3.0 Type B (Host port)
- Page 3 Bottom Pads Hook holes Pads Magnet plate Installation Install the necessary drivers for the peripheral device on each computer it will be shared between Turn Off all the computers & peripheral device you intent to connect together via the switch before continuing with the installation.
- Page 4 Regulatory Compliance Disclaimer Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any other commercial damage, including but not limited to special, incidental, consequential, or other damages.
