Introduction

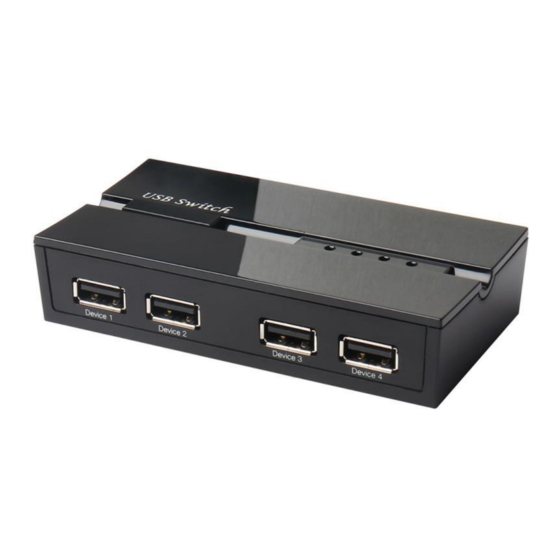

The 2x2/4x4 USB 2.0 Data Switch allows users to share 2/4 USB devices between 2/4 different computers. It is USB 2.0
compliant, supports data transfer rate up to 480Mbps and backwards compatible with USB 2.0 and USB1.1; avoiding the cost of
purchasing duplicate peripherals or the hassle of swapping cables from one system to the others. Functions simple port
selection via push button whether one of the two or some of the 4 hosts be disconnected. The working memory (last channel
setting) won't be terminated no matter the unit shutdown and restarted. (Default setting is switched to PC1 after powered on the
unit; and then it will change to the last channel setting after restarting the unit.)
The switch can also be connected to a USB hub, to expand the number of devices you can share between the 2/4 connected
systems, or to a USB drive enclosure or docking station, for a shared external storage solution.
Features
USB 2.0 data transfer rates up to 480 Mbps
Fully Compliant with USB specification 1.1, 2.0
Enables 2/4 computers to share 2/4 USB 2.0 devices; Functions simple port selection via push button whether one of the
two or some of the 4 hosts be disconnected
Supports memory function, the working memory won't be terminated no matter the unit shutdown and restarted
Easily wall mounting design (two hook holes and magnet attached)
Compatible OS: Windows 98SE / ME / 2000 / XP / Vista / 7 / 8 / 8.1 / 10 / 11; Mac OS 8.6 or higher
Plug-and-Play, no software or drivers required
Specification
Model No.
Data Transfer Rate
LED
PC Selector
USB Specification
Upstream
Connector
Downstream
Power Supply
Input
Extension Cable Length
Output
Operating Temperature
Environmental
Storage Temperature
Humidity
Housing
Dimension (L x W x H)
2x2/4x4 USB 2.0 Data Switch
Quick Installation Guide
USB-DS22H
1.5M / 12M / 480M
2
Push button
USB 1.1 / 2.0 compliant
USB 2.0 B Female x 2
USB 2.0 A Female x 2
5VDC 1A
Max. 2m
Max. 2m
0–40°C
-20–60°C
0–80% RH, Non-condensing
Plastic
106 x 56 x 25 mm
USB-DS44H
1.5M / 12M / 480M
4
Push button
USB 1.1 / 2.0 compliant
USB 2.0 B Female x 4
USB 2.0 A Female x 4
5VDC 2A
Max. 2m
Max. 2m
0–40°C
-20–60°C
0–80% RH, Non-condensing
Plastic
106 x 56 x 25 mm
Advertisement
Table of Contents
Related Manuals for Chipset Communication USB-DS22H
Summary of Contents for Chipset Communication USB-DS22H
- Page 1 Compatible OS: Windows 98SE / ME / 2000 / XP / Vista / 7 / 8 / 8.1 / 10 / 11; Mac OS 8.6 or higher Plug-and-Play, no software or drivers required Specification Model No. USB-DS22H USB-DS44H Data Transfer Rate 1.5M / 12M / 480M 1.5M / 12M / 480M...
-
Page 2: Physical Diagram
Physical Diagram USB-DS22H LED indicator Upper (PC1, PC2) Push button (PC selector) Front Power jack USB 2.0 Type B USB 2.0 port (Host port) (to Device) - Page 3 Bottom Pads Hook holes Pads Magnet plate USB-DS44H Upper Push button (PC selector) LED indicator (PC1~PC4)
- Page 4 Front Power jack USB 2.0 Type B (Host port) Rear USB 2.0 port (to Device)
-
Page 5: Operation
Hook holes Bottom Pads Pads Magnet plates Installation Install the necessary drivers for the peripheral device on each computer it will be shared between Turn Off all the computers & peripheral device you intent to connect together via the switch before continuing with the installation. -
Page 6: Fcc Compliance Statement
Regulatory Compliance Disclaimer Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any other commercial damage, including but not limited to special, incidental, consequential, or other damages.
