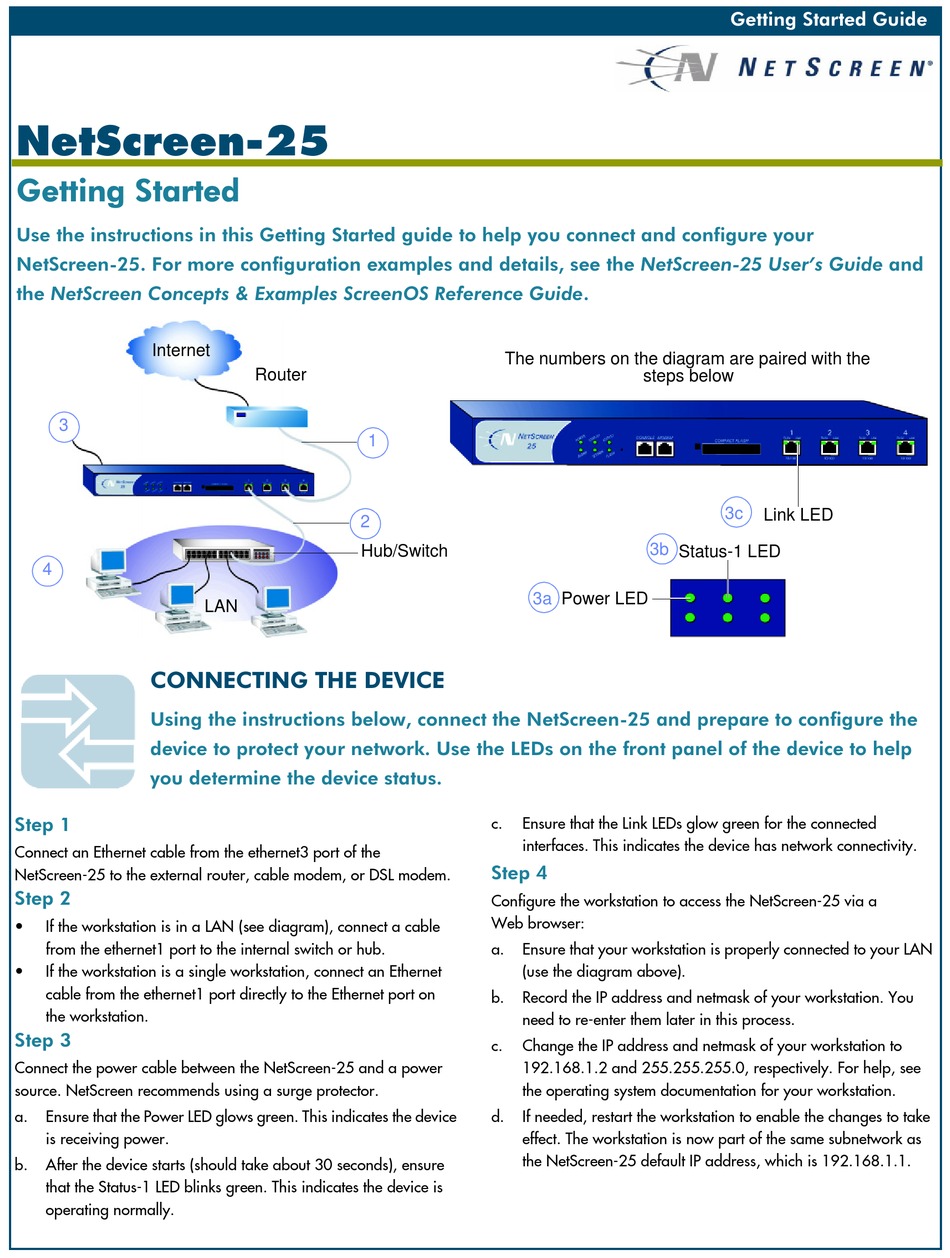

NetScreen-25
*HWWLQJ 6WDUWHG
8VH WKH LQVWUXFWLRQV LQ WKLV *HWWLQJ 6WDUWHG JXLGH WR KHOS \RX FRQQHFW DQG FRQILJXUH \RXU
1HW6FUHHQ )RU PRUH FRQILJXUDWLRQ H[DPSOHV DQG GHWDLOV VHH WKH 1HW6FUHHQ 8VHU·V *XLGH DQG
WKH 1HW6FUHHQ &RQFHSWV
Internet
3
4
&211(&7,1* 7+( '(9,&(
8VLQJ WKH LQVWUXFWLRQV EHORZ FRQQHFW WKH 1HW6FUHHQ DQG SUHSDUH WR FRQILJXUH WKH
GHYLFH WR SURWHFW \RXU QHWZRUN 8VH WKH /('V RQ WKH IURQW SDQHO RI WKH GHYLFH WR KHOS
\RX GHWHUPLQH WKH GHYLFH VWDWXV
6WHS
Connect an Ethernet cable from the ethernet3 port of the
NetScreen-25 to the external router, cable modem, or DSL modem.
6WHS
•
If the workstation is in a LAN (see diagram), connect a cable
from the ethernet1 port to the internal switch or hub.
If the workstation is a single workstation, connect an Ethernet
•
cable from the ethernet1 port directly to the Ethernet port on
the workstation.
6WHS
Connect the power cable between the NetScreen-25 and a power
source. NetScreen recommends using a surge protector.
a.
Ensure that the Power LED glows green. This indicates the device
is receiving power.
b.
After the device starts (should take about 30 seconds), ensure
that the Status-1 LED blinks green. This indicates the device is
operating normally.
([DPSOHV 6FUHHQ26 5HIHUHQFH *XLGH
Router
1
2
Hub/Switch
LAN
The numbers on the diagram are paired with the
steps below
3b
3a
Power LED
c.
Ensure that the Link LEDs glow green for the connected
interfaces. This indicates the device has network connectivity.
6WHS
Configure the workstation to access the NetScreen-25 via a
Web browser:
a.
Ensure that your workstation is properly connected to your LAN
(use the diagram above).
b.
Record the IP address and netmask of your workstation. You
need to re-enter them later in this process.
c.
Change the IP address and netmask of your workstation to
192.168.1.2 and 255.255.255.0, respectively. For help, see
the operating system documentation for your workstation.
d.
If needed, restart the workstation to enable the changes to take
effect. The workstation is now part of the same subnetwork as
the NetScreen-25 default IP address, which is 192.168.1.1.
*HWWLQJ 6WDUWHG *XLGH
3c
Link LED
Status-1 LED
