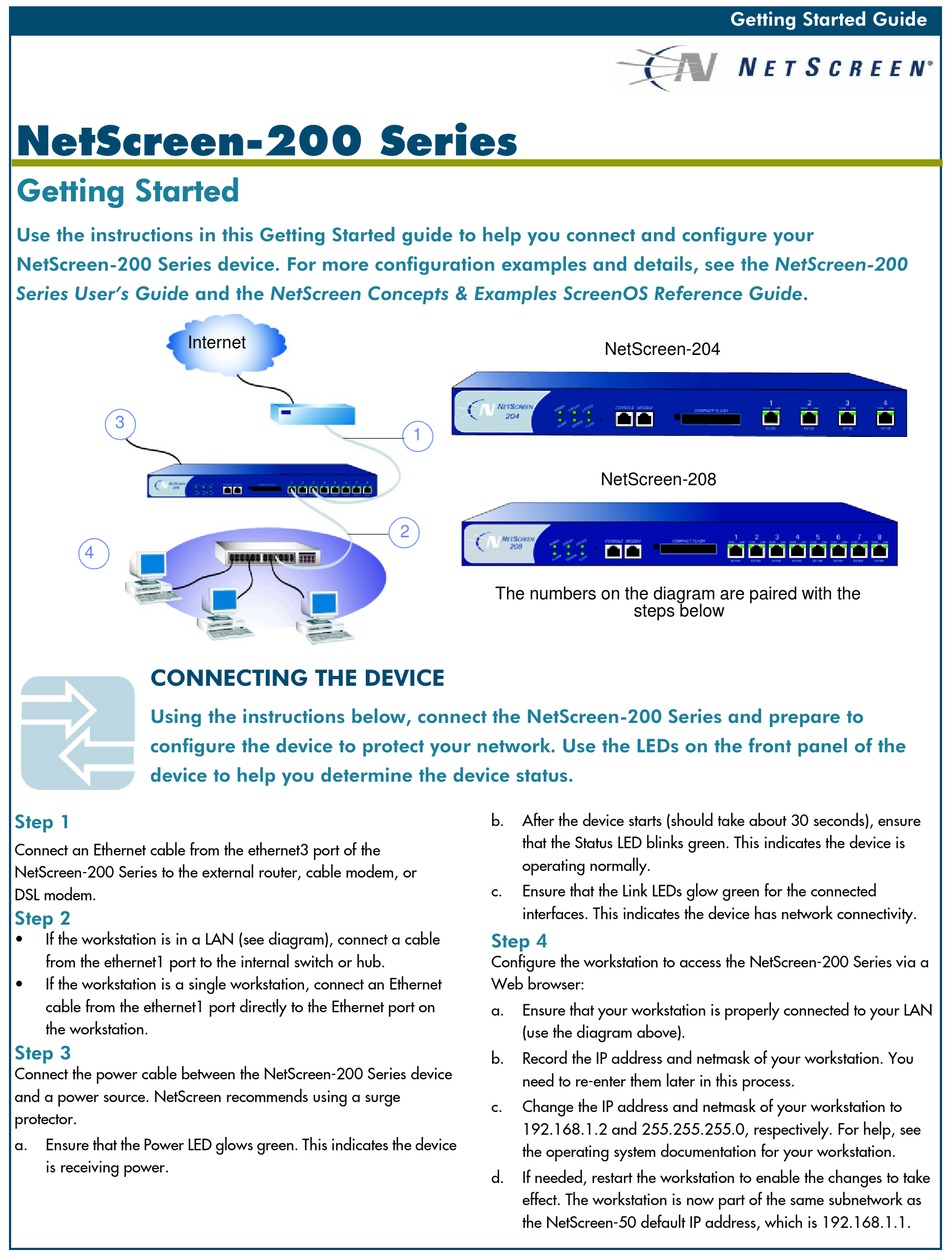

NetScreen-200 Series
*HWWLQJ 6WDUWHG
8VH WKH LQVWUXFWLRQV LQ WKLV *HWWLQJ 6WDUWHG JXLGH WR KHOS \RX FRQQHFW DQG FRQILJXUH \RXU
1HW6FUHHQ 6HULHV GHYLFH )RU PRUH FRQILJXUDWLRQ H[DPSOHV DQG GHWDLOV VHH WKH 1HW6FUHHQ
6HULHV 8VHU·V *XLGH DQG WKH 1HW6FUHHQ &RQFHSWV
Internet
3
4
&211(&7,1* 7+( '(9,&(
8VLQJ WKH LQVWUXFWLRQV EHORZ FRQQHFW WKH 1HW6FUHHQ 6HULHV DQG SUHSDUH WR
FRQILJXUH WKH GHYLFH WR SURWHFW \RXU QHWZRUN 8VH WKH /('V RQ WKH IURQW SDQHO RI WKH
GHYLFH WR KHOS \RX GHWHUPLQH WKH GHYLFH VWDWXV
6WHS
Connect an Ethernet cable from the ethernet3 port of the
NetScreen-200 Series to the external router, cable modem, or
DSL modem.
6WHS
If the workstation is in a LAN (see diagram), connect a cable
•
from the ethernet1 port to the internal switch or hub.
If the workstation is a single workstation, connect an Ethernet
•
cable from the ethernet1 port directly to the Ethernet port on
the workstation.
6WHS
Connect the power cable between the NetScreen-200 Series device
and a power source. NetScreen recommends using a surge
protector.
a.
Ensure that the Power LED glows green. This indicates the device
is receiving power.
([DPSOHV 6FUHHQ26 5HIHUHQFH *XLGH
1
2
The numbers on the diagram are paired with the
b.
After the device starts (should take about 30 seconds), ensure
that the Status LED blinks green. This indicates the device is
operating normally.
c.
Ensure that the Link LEDs glow green for the connected
interfaces. This indicates the device has network connectivity.
6WHS
Configure the workstation to access the NetScreen-200 Series via a
Web browser:
a.
Ensure that your workstation is properly connected to your LAN
(use the diagram above).
b.
Record the IP address and netmask of your workstation. You
need to re-enter them later in this process.
c.
Change the IP address and netmask of your workstation to
192.168.1.2 and 255.255.255.0, respectively. For help, see
the operating system documentation for your workstation.
d.
If needed, restart the workstation to enable the changes to take
effect. The workstation is now part of the same subnetwork as
the NetScreen-50 default IP address, which is 192.168.1.1.
*HWWLQJ 6WDUWHG *XLGH
NetScreen-204
NetScreen-208
steps below
