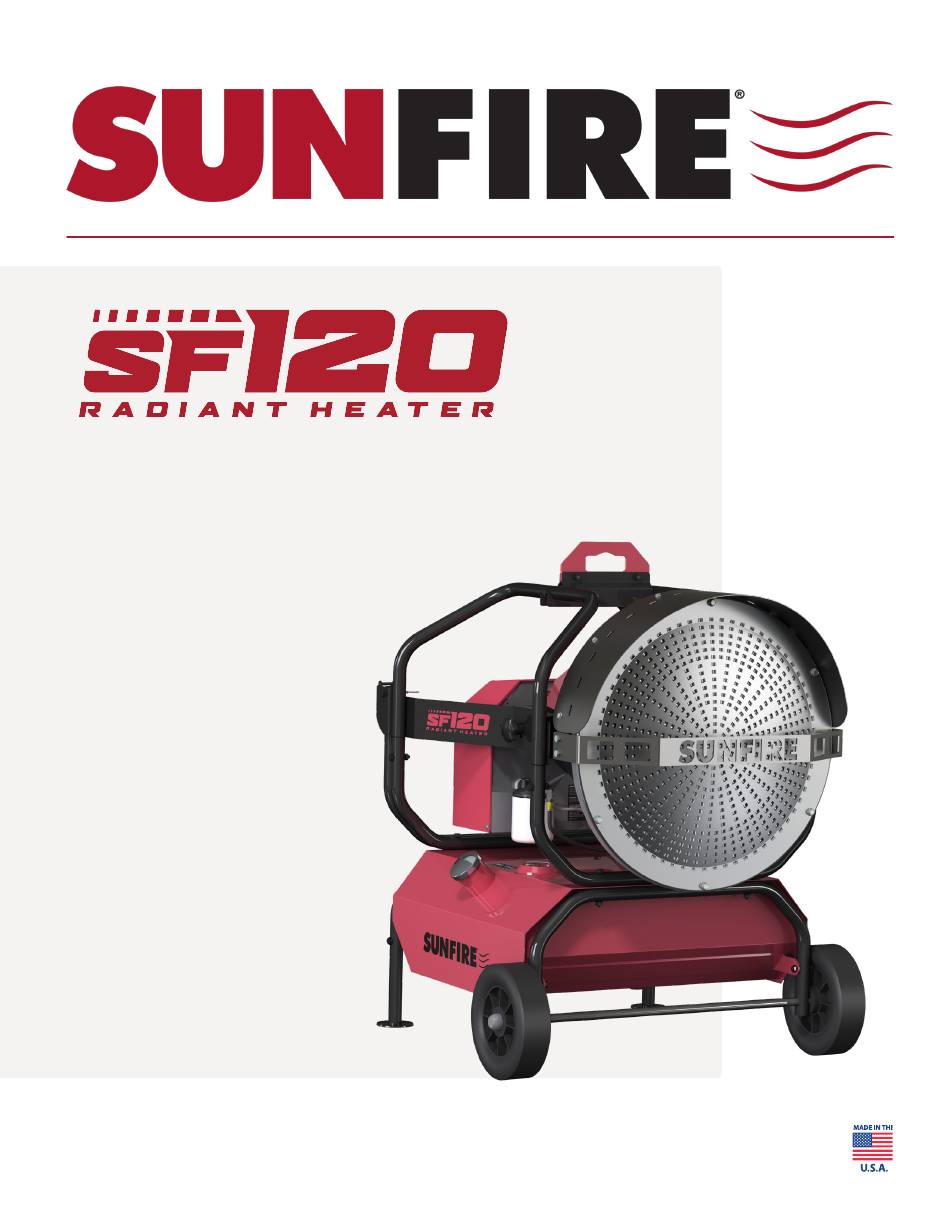

- Page 1 Operation & Service Manual 4109 Capital Circle Drive | Janesville WI, 53546 sunfireheaters.com | +1 (855) 251-1649...
-
Page 3: Safety Information
Before you begin... SAFETY, CODES, AND REGULATIONS: Thank you for purchasing a SunFire product. SunFire heaters are designed and tested for safe, reliable, long-term operation, though proper operation, fuel quality control, and regular maintenance are required. Please read and understand this manual completely before attempting to operate or service the product. - Page 4 Safety Information: Failure to comply with specified requirements and minimum clearances can be dangerous and may become a fire hazard. Additional clearances may be necessary for accessibility or to comply with local codes. This appliance is equipped with a three-prong grounding plug for your protection against electric shock hazard and should be plugged into a grounded, three-prong power supply capable of supplying proper voltage and amperage.
- Page 5 WARNING ⛽ NO GASOLINE! This product is designed for use with Diesel, No.2 heating oil, or kerosene ONLY! • To avoid added risk of fire or explosion, never use gasoline, crankcase drainings, naphtha, paint thinners, alcohol, or any other unapproved fuels. •...
- Page 6 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 7: Safety Labels
Safety Labels: WARNING AVERTISSEMENT READ MANUAL BEFORE USE LIRE LE MANUEL AVANT UTILISATION Never use gasoline or waste oil. 1. Ne jamais utiliser d’essence ou d’huile usée. 2. Never push RESET button more than twice. If heater doesn’t start, 2. Ne jamais appuyer plus de deux fois sur le bouton RESET. Si l’appareil follow troubleshooting in manual. - Page 8 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 9: Table Of Contents
Table of Contents Safety Information: Safety, Codes, and Regulations: Conventions Used in this Manual: Safety Labels: Key Features: Specifications: Fuel Requirement: Fuel Input: Fuel Tank Capacity: Electrical Requirement: Operating Temperature Range*: Minimum Clearance to Combustible Material: Weight: Dimensions: Getting Started: Identifying Terms: Package Contents: Assembly:... - Page 10 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 11: Key Features
SUNFIRE: The most advanced, most durable portable multifuel radiant heater made in America Key Features: LOW NOISE ODORLESS Turn up the heat without More heat having to turn up the Less noxious fumes volume ZERO CO EMISSIONS ZERO BREEZE/DUST 99%+ efficiency for... -
Page 12: Specifications
Specifications: min. 7’ 39” (2.13 m) 99 cm 33.4” 84.8 cm For use on non- combustible flooring or with heat-rejecting 28.6” 33.2” 72.5 cm 84.3 cm MINIMUM CLEARANCE TO COMBUSTIBLE MATERIAL: Front: 84” (213.36 cm) Left/Right Side: 36” (91.4 cm) Back: N/A Below: For use on non-combustible flooring or with heat-rejecting mat... -
Page 13: Getting Started
Getting Started: IDENTIFYING TERMS: Please familiarize yourself with the parts of the heater as they will be referred to throughout this manual: 1. Power Cord 10. Burner Cover 18. Adjustable Handle 2. Fuel Tank 11. PRIME Switch 19. Handle-Position Locking Pin 3. -
Page 14: Package Contents
PACKAGE CONTENTS: Please review the package contents and ensure that all materials are present. If you find something is missing, contact SunFire for assistance. DO NOT RETURN THE HEATER TO THE STORE where it was purchased. 1. Heater Assembly Not to scale 2. -
Page 15: Assembly
ASSEMBLY: When unpacking the unit, some assembly is required before initial use. This process can be completed individually, but a helper may be useful for some steps. Do not add fuel to the heater until the assembly process is complete. The following tools will be used in the assembly process: •... - Page 16 Getting Started: TO ASSEMBLE THE UNIT (CONT.): 3. When attaching the leg assembly to the heater, locate the two (2) leveling feet included in the packaging and screw them into the threads in the ends of the foot assembly frame. ATTACH FEET 4.
- Page 17 TO ASSEMBLE THE UNIT (CONT.): 6. Carefully, right the unit onto its lower support frame and wheels by rolling it sideways. Do not lay the heater on the dome face at any time. Check the stability of the heater as it sits on a level floor. If the heater rocks or is otherwise unstable, rotate the leveling feet to stabilize the heater.
- Page 18 Getting Started: TO ASSEMBLE THE UNIT (CONT.): 8. With a 5/16” powered driver, use the visor screws provided to affix the dome visor to the top of the dome face. Start at one end of the visor and move along the length of the visor to shape it to the dome.
-
Page 19: Normal Operation
Normal Operation: This section will cover normal orientation and operation of the SunFire SF-120. TO ADJUST THE TILT ANGLE: Use the knobs on the sides of the unit to adjust the tilt angle of the dome face. Tighten the knobs when adjustment is complete. -
Page 20: Controls
Normal Operation: CONTROLS: The unit’s controls are labeled and located on the burner cover. STARTUP / COMMENCEZ SHUTDOWN / FERMER Turn heater on. Heater will fire within 15 seconds. Turn heater o . Blower will continue to cool down heater for 5 minutes. ON/OFF RESET If heater fails to fire, press reset button for 1 second... -
Page 21: Operation In Sub-Freezing Temperatures
Use of100% kerosene may also be necessary in this scenario. Optional Accessories: FUEL-FILTER HEATING BAND: SunFire heaters can be fitted with a fuel-filter heating band to assist fuel flow in cold conditions. HEATING BAND PLACEMENT: INSTALL HEATING BAND Slip the heating band securely around the filter element. -
Page 22: Maintenance & Service
Replace the filter with a genuine SunFire filter element. Apply a small amount of clean oil to the rubber o-ring. Tighten the filter snugly after the o-ring contacts the filter head. Do not over tighten. -
Page 23: Burner Service
INSPECT FLAME SENSOR If the flame sensor shows signs of damage, troubleshoot the unit to determine and correct the cause and replace the flame sensor before resuming operation of the unit. Contact SunFire technical service for assistance. sunfireheaters.com +1 (855) 251-1649... - Page 24 REMOVE NOZZLE SUBASSEMBLY INSPECT COMBUSTION CHAMBER Some visible cracks in the insulation material are normal. If portions of the insulation are broken or missing, replace the insulation before resuming operation of the unit. Contact SunFire technical service for assistance. sunfireheaters.com...
-
Page 25: General Maintenance
Only use authentic SunFire parts. Inspect the nozzle adapter before replacing the nozzle. If the threads have been damaged or show score marks, replace the entire nozzle-line assembly. -
Page 26: Flame Adjustment
If the unit still will not establish a flame, it may require service. Refer to the Troubleshooting section in this manual or contact SunFire for assistance. 3. When the heater has established a flame, slowly close the air shutter until the flames approach and just begin to escape the dome face, then slowly open the air shutter until no flame or smoke is emitted from the dome face. -
Page 27: Wiring Diagram (High Voltage)
WIRING DIAGRAM (HIGH VOLTAGE): sunfireheaters.com +1 (855) 251-1649... -
Page 28: Wiring Diagram (Low Voltage)
WIRING DIAGRAM (LOW VOLTAGE): sunfireheaters.com +1 (855) 251-1649... -
Page 29: Troubleshooting
If your issue was not described here, or for further assistance, please contact your local AUTHORIZED SUNFIRE DEALER or find more information at sunfireheater.com/support where you can access the latest support information and manuals. Or call the manufacturer directly at (855) 251-1649. -
Page 30: Warranty & Legal Information
SUNFIRE will not be liable for any incidental or consequential damages directly or indirectly related to the sales, handling or use of the equipment, and in any event SUNFIRE in connection with the equipment, including for claims based on negligence or strict liability, is limited to the purchase price. - Page 32 Rock Energy Systems, LLC 4109 Capital Circle, Janesville, WI 53546 SunFireHeaters.com SUNFIRE is a registered trademark of Rock Energy Systems, LLC P/N 81010898 - Rev-B - October 2022...
