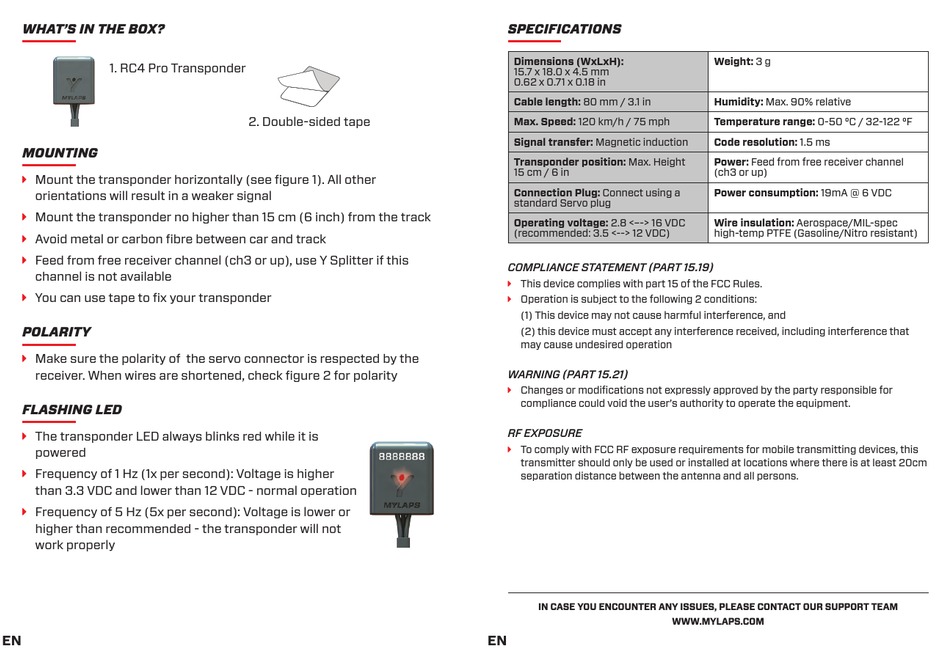

Mylaps RC4 PRO Quick Start Manual page 2

WHAT'S IN THE BOX?
1. RC4 Pro Transponder
MOUNTING
Mount the transponder horizontally (see figure 1). All other

orientations will result in a weaker signal
Mount the transponder no higher than 15 cm (6 inch) from the track

Avoid metal or carbon fibre between car and track

Feed from free receiver channel (ch3 or up), use Y Splitter if this

channel is not available
You can use tape to fix your transponder

POLARITY
Make sure the polarity of the servo connector is respected by the

receiver. When wires are shortened, check figure 2 for polarity
FLASHING LED
The transponder LED always blinks red while it is

powered
Frequency of 1 Hz (1x per second): Voltage is higher

than 3.3 VDC and lower than 12 VDC - normal operation
Frequency of 5 Hz (5x per second): Voltage is lower or

higher than recommended - the transponder will not
work properly
EN
2. Double-sided tape
SPECIFICATIONS
Dimensions (WxLxH):
15.7 x 18.0 x 4.5 mm
0.62 x 0.71 x 0.18 in
Cable length: 80 mm / 3.1 in
Max. Speed: 120 km/h / 75 mph
Signal transfer: Magnetic induction
Transponder position: Max. Height
15 cm / 6 in
Connection Plug: Connect using a
standard Servo plug
Operating voltage: 2.8 <–-> 16 VDC
(recommended: 3.5 <--> 12 VDC)
COMPLIANCE STATEMENT (PART 15.19)
This device complies with part 15 of the FCC Rules.

Operation is subject to the following 2 conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation
WARNING (PART 15.21)
Changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.
RF EXPOSURE
To comply with FCC RF exposure requirements for mobile transmitting devices, this

transmitter should only be used or installed at locations where there is at least 20cm
separation distance between the antenna and all persons.
IN CASE YOU ENCOUNTER ANY ISSUES, PLEASE CONTACT OUR SUPPORT TEAM
EN
Weight: 3 g
Humidity: Max. 90% relative
Temperature range: 0-50 °C / 32-122 °F
Code resolution: 1.5 ms
Power: Feed from free receiver channel
(ch3 or up)
Power consumption: 19mA @ 6 VDC
Wire insulation: Aerospace/MIL-spec
high-temp PTFE (Gasoline/Nitro resistant)
WWW.MYLAPS.COM
