SPAR FOOD MACHINERY MFG. CO., LTD.
SP-B80HI PLANETARY MIXER
(Include Model SP-B80H, SP-B80I, SP-B80)
MI XER
S
SPAR
R
PA
Installation, Operation and
Maintenance Instructions
2008.March
SPAR FOOD MACHINERY MFG. CO., LTD.
NO.145, 11th Industry Rd. Ta Li City, Taichung Hsien, Taiwan, 412 R.O.C.
Tel ： (886)4-2491-7585
Fax ： (886)4-2491-7565
http://www.sparmixers.com
e-mail ： spar@tcts.seed.net.tw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-B80HI and is the answer not in the manual?

Questions and answers

Related Manuals for Spar SP-B80HI

Summary of Contents for Spar SP-B80HI

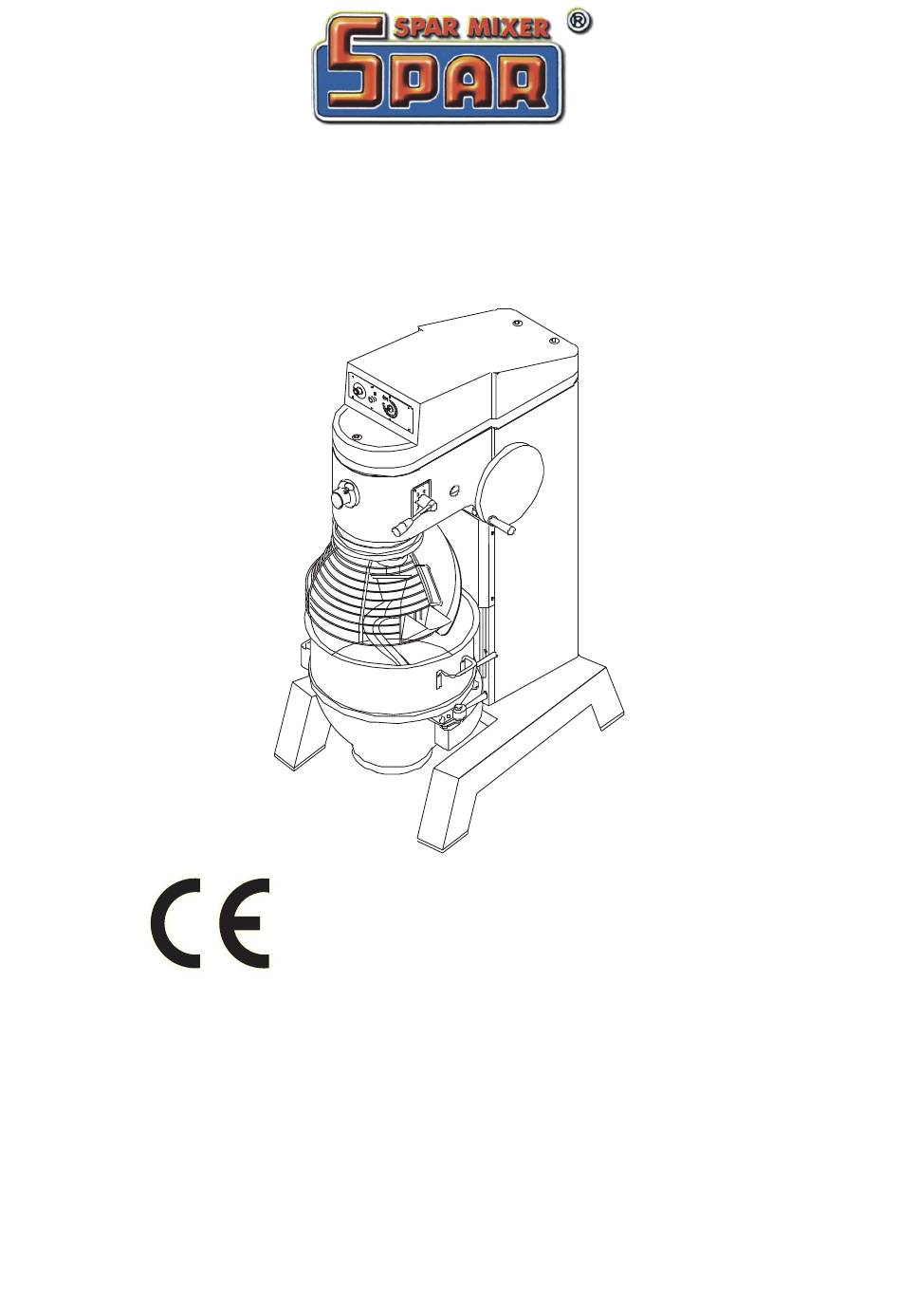

  • Page 1 SPAR FOOD MACHINERY MFG. CO., LTD. SP-B80HI PLANETARY MIXER (Include Model SP-B80H, SP-B80I, SP-B80) MI XER SPAR Installation, Operation and Maintenance Instructions 2008.March SPAR FOOD MACHINERY MFG. CO., LTD. NO.145, 11th Industry Rd. Ta Li City, Taichung Hsien, Taiwan, 412 R.O.C.

  • Page 2: Table Of Contents

    SP-B80HI / SP-B80I Planetary Mixer SP- B80HI / SP-B80I PLANETARY MIXER SPECIFICATION CONTENTS Model SP-B80HI / SP-B80I Specification……………………………….1 80 Quarts Installation…………………………………3 Bowl Size (I.D. 50 x H. 46.8 x TH. 2 cm) Electrical Connection……………………...3 Motor 3 H.P. Safety………………………………….……4 Correct Use of the Mixer………………….4 220V/380V/415V Gear Oil Meter……………………………...4...
  • Page 3 SP-B80HI / SP-B80I Planetary Mixer...

  • Page 4: Installation

    If SP-B80HI / B80I is a floor type planetary the shaft goes counterclockwise, please mixer designed for commercial use by the replace the wires: R.S.T. (USA) L1, L2, L3, professional caterer.

  • Page 5: Safety

    If the motor labors or the belt slips, stop the machine and reduce the size of the mix immediately. Damage resulting from improper use is not covered by the SPAR warranty. In terms of operator safety, the mixer is...

  • Page 6: Fitting The Bowl

    Note: Always wash agitator with mild * Note: Only SP-B80HI and SP-B80I are soap and apply light quantity of mineral equipped with bowl guard. oil to planetary shaft after cleaning.

  • Page 7: Speed Selection

    SP-B80HI / SP-B80I Planetary Mixer SPEED SELECTION C: Timer SP-B80HI/ SP-B80I are equipped with a Before changing speed, the mixer must 15 minutes timer. In terms of timing operation, always be stopped by pressing the red button. timer must be set at least more than 5 The necessary speed can then be selected minutes.

  • Page 8: Attachments

    For the same * Note: Only SP-B80HI and SP-B80H are reason ensure that the beater shaft and each equipped with Attachment Hub. of the sockets on the tools are cleaned thoroughly.

  • Page 9: Mixing Capacit Ies

    Recommended weight for a finished mix unless otherwise stated. Water content e.g. 25# flour / 12.5# water = 50% moisture. For pizza dough with lower moisture content, please consult SPAR For higher gluten flour reduce dough batch by 25%. Table 3...

  • Page 10: Maintenance

    SP-B80HI / SP-B80I Planetary Mixer MAINTENANCE Regular maintenance is necessary on all machines if they are to remain in good working condition. It is strongly recommended that all maintenance must be carried out by trained technicians from a SPAR appointed distributor.
  • Page 11 SP-B80HI / SP-B80I Planetary Mixer Warning We recommended that do not lean the mixer over 35 degree during the transportation to avoid the gear leaking from the gear oil container After replacing the parts by technicians, please screw back tightly with anti-leaking coat to avoid the gear oil leaking after replacement.

  • Page 12: Electrical Wiring Diagram

    SP-B80HI / SP-B80I Planetary Mixer Electrical Diagram – SP-B80HI 220V Single Phase (Include Model SP-B80I) Item Description Manufature Part number Qty Rem. S1 EMERGENCY STOP BUTTON Telemecanique XB2-BS542 S2 START BUTTON Telemecanique XB2-BW3361B S3 MICROSWITCH (interlock guard) Omron D2VW-5-1M MICROSWITCH (transmission gear)
  • Page 13 SP-B80HI / SP-B80I Planetary Mixer Electrical Diagram – SP-B80HI 220V Single Phase (Include Model SP-B80I)
  • Page 14 SP-B80HI / SP-B80I Planetary Mixer Electrical Diagram – SP-B80HI 230V/400V Three-Phase (Include Model SP-B80I) Item Description Manufature Part number Qty Rem. S1 EMERGENCY STOP BUTTON Telemecanique XB2-BS542 S2 START BUTTON Telemecanique XB2-BW3361B S3 MICROSWITCH (interlock guard) G.G.T MFI MFR MICROSWITCH (transmission gear)
  • Page 15 SP-B80HI / SP-B80I Planetary Mixer Electrical Diagram – SP-B80HI 230V/400V Three-Phase (Include Model SP-B80I)
  • Page 16 QUALITY CONTROL SPAR uses state of the art CNC machines to cut all body castings and mill all gears and shafts. Samples from each batch are evaluated to exacting standards by a computerized Italian MPM 3-dimensional analyzer.
