Instruction Manual for HI-Series Mixer
(SP-100A, SP-200A, SP-30HA, SP-40HA, SP-60HA, SP-A80HI, SP-B80HI)
Manufactured for Robot Coupe Australia & NZ Pty Ltd.
ROBOT COUPE AUSTRALIA & NZ Pty Ltd
Unit 3 / 43 Herbert Street, Artarmon NSW 2064, AUSTRALIA
Tel (02) 9478 0300
www.robotcoupe.com.au
info@robotcoupe.com.au
CONTENTS
................................................................. P. 2
................................................................. P. 3
................................................................. P. 4
................................................................. P. 11
................................................................. P. 12
................................................................. P. 12
................................................................. P. 13
................................................................. P. 14
................................................................. P. 15
Model
#:__________________
Serial
#:__________________
Revised Date: MAY, 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI Series and is the answer not in the manual?

Questions and answers

Related Manuals for Spar HI Series

Summary of Contents for Spar HI Series

  • Page 1: Table Of Contents

    Model #:__________________ Serial #:__________________ SPAR FOOD MACHINERY MFG, CO., LTD. Instruction Manual for HI-Series Mixer (SP-100A, SP-200A, SP-30HA, SP-40HA, SP-60HA, SP-A80HI, SP-B80HI) Manufactured for Robot Coupe Australia & NZ Pty Ltd. ROBOT COUPE AUSTRALIA & NZ Pty Ltd Unit 3 / 43 Herbert Street, Artarmon NSW 2064, AUSTRALIA Tel (02) 9478 0300 www.robotcoupe.com.au...

  • Page 2: Overall View Of The Mixer

    NEVER bypass, alter or modify this machine. Doing so may create hazard and will void warranty.  Avoid exposing to vibration environment  If you have any questions, please contact any local representative or SPAR directly. Overall View of the Mixer...

  • Page 3: Installation Instructions

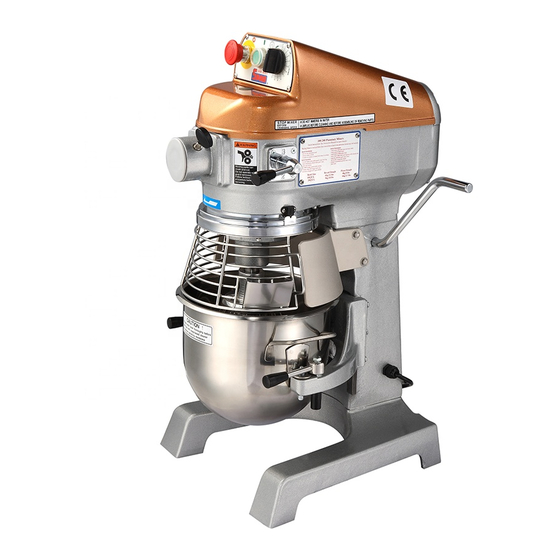

    Installation Instructions Model SP-60HA Bowl B) Removable Bowl Guard C) Planetary Shaft D) Attachment Hub* E) Control Panel F) Gear Lever G) Additions Chute H) Bowl Lift Handle (Wheel) I) Bowl Cradle NOTE: Attachment Hub is optional. Control Panel A) Emergency Stop B) Start C) Timer** NOTE: Timer is optional on Model SP-100A, SP-100A/nh,...
  • Page 4 should be BOLTED in position using all four holes located in the legs. Installation Instructions DO NOT attempt to lift the mixer alone. Clean the mixer before use. It is normal for the factory to apply a generous amount of grease in and on the machine before initial use.

  • Page 5: Operating Instructions

    Electrical equipment is designed to withstand to protect against the effects of transportation, and storage temperature within a range of -25℃ to +55℃ and for short periods not exceeding 24h at up to +70℃. Operating Instructions BEFORE USING THE MIXER Before using the mixer, ensure that all users are familiar with the correct operation of the machine.
  • Page 6 TOOL SELECTION Spiral Dough Hook: Heavy mixes The beater, whisk and spiral dough hook are tools for such as dough, pie pastry. . the work implied by their names. Do not use the beater for dough making or the whisk for anything other than Whisk: Light mixes such as whisking, aerating or mixing light mixtures.
  • Page 7 The interlocking bowl guard now is available to remove for cleaning purpose. With separated handles, it can easy take out the bowl guard and cleaning in a sink or dishwasher. Open / Closing the Bowl Guard: To open the bowl guard, holding the separated handle, and rotating clockwise.
  • Page 8 feature of Solid Safety Guard is to eliminate the exposure of flour when mixing bread dough. CONTROLS The Timer (C) is arranged to automatically stop the machine after the selected interval. An untimed position is provided for manually controlled mixing cycles. Before starting the mixer it is necessary to set the mixing duration or select the manual position –...
  • Page 9 SP-A80HI, SP-100A SP-200A SP-30HA SP-40HA SP-60HA Model SP-B80HI, SP-30A SP-40A SP-60A SP-100A/nh SP-200A/nh Noise Noise 67.3 dB 65.5 dB 64.4 dB 61.9 dB 60.1 dB 59.1 dB Level SPEED SELECTION Before changing speeds, the mixer must always be STOPPED first. The necessary speed can then be selected before restarting the machine by pressing the Green Start Button.
  • Page 10 Operating Instructions BOWL SCRAPER NOTE: Bowl Scraper is an optional accessory. Please consult the local dealer for ordering. The Bowl Scraper is used in conjunction with the Beater or Wire Whip agitator. The Bowl Scraper is easily attached to the mounted bracket when needed. While the agitator is mixing the product, the scraper is continuously scraping the entire inside of the mixing bowl.
  • Page 11 Operating Instructions ATTACHMENTS NOTE: Attachment Hub is optional. The ranges of attachments that can be operated from the Attachment Hub are listed below. When using an attachment, lubricate the Drive Stud (D) using a food quality grease or oil. To fix to the mixer refer to Figure 4. Release the Thumbscrew (G) and slide the shaft of the attachment into the hub ensuring that the Drive Stud (D) engages in the socket within the hub.

  • Page 12: Cleaning Instructions

    Cleaning Instructions CARE OF YOUR MIXER CAUTION: ALWAYS DISCONNECT OR UNPLUG THE ELECTRICAL POWER FROM THE MIXER BEFORE CLEANING. The mixer is designed for simple maintenance carried out by operators. It may be necessary from time to time to apply a little Vaseline and oil to the rods on which the bowl cradle slides. If so, use a little food quality lubricant, ensuring that there is no excess oil that could contaminate the food mix.

  • Page 13: Limited Warranty

    Limited Warranty GUARANTEE SPAR provides one year guarantee, either the date of dispatch from our factory, or the date of purchase from one of our approved distributors. We will replace any defected parts resulted from faulty design, material or workmanship, provided that no alteration, addition or repair has been carried out except by an authorized Service Agent and provided that such defective part(s) be returned to the Company’s nearest authorized representative, postage paid.
  • Page 14 No power to mixer Check plug socket Mixer not plugged into a live socket or not switched on Check wiring in plug Plug incorrectly wired – rewire correctly Check fuse in plug Possible faulty fuse – replace fuse Check or change cable Cable damaged or split –...

  • Page 15: Capacity Chart Table

    Capacity Chart Table ATTACHMENT APPLICATION FOOD PRODUCTS RECOMMENDATIONS Agitator / SP-A80HI & Product SP-100A SP-200A SP-30HA SP-40HA SP-60HA Speed SP-B80HI Bowl Capacity Bowl 10 LITER 20 LITER 30 LITER 40 LITER 60 LITER 80 LITER Waffle or Hot Cake Batter Beater 4.7L 7.6L...

  • Page 16: Mixer Agitator/Application

    FLAT BEATER  Multipurpose agitator  Mashing potatoes  Use 1 speed for starting MIXER AGITATOR/APPLICATION  Mixing cakes  Medium speed for finishing  Icings WIRE WHIP  Maximum blending of air  Whipping cream  2 & 3 speeds for 3 speed into light products ...
  • Page 17 QUALITY CONTROL  SPAR uses state of the art CNC machines to cut all body castings and mill all gears and shafts. Samples from each batch are evaluated to exacting standards by a computerized Italian MPM 3-dimensional analyzer.
