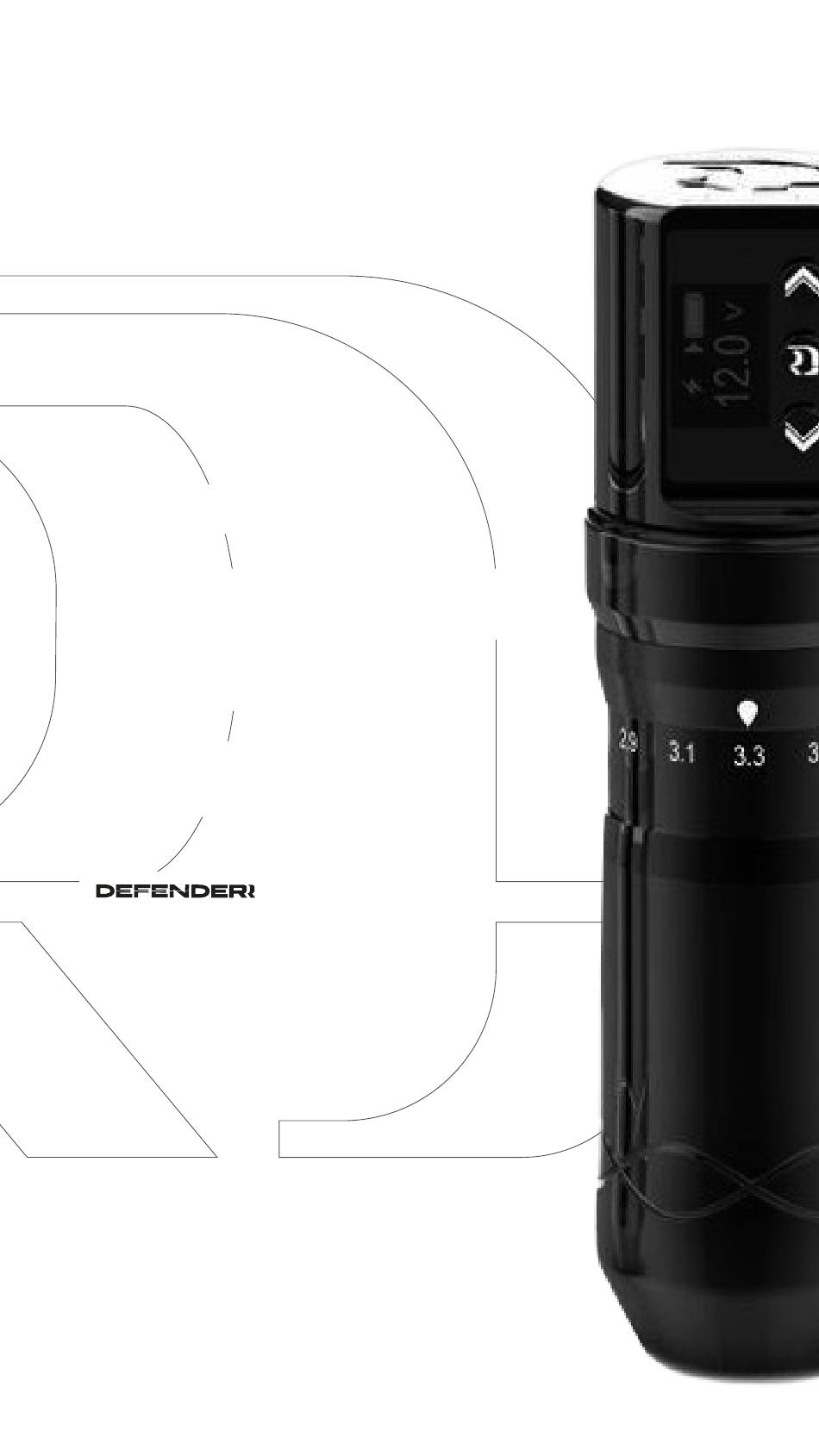

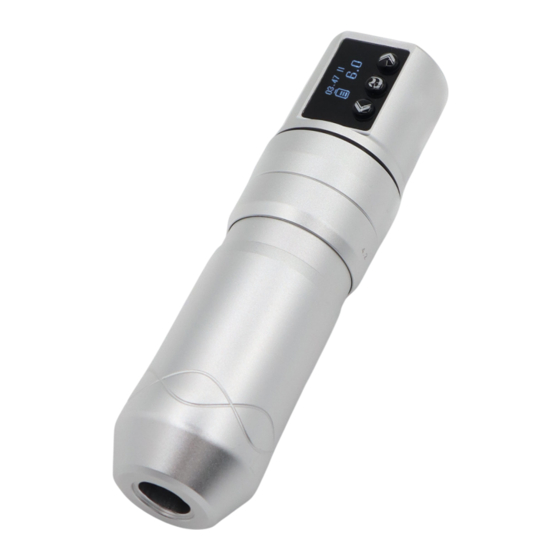

- Page 1 VECTOR Wireless device revolution in the industry of permanent makeup...
- Page 2 Defenderr is the first company to develop and to release a wireless PMU device with a built-in interchangeable needle stroke mechanism. VECTOR has everything a PMU artist dreams of—a versatile and manoeuvrable device, which can be fully adjusted to work with any technique very easily.
- Page 3 Mobility and comfort Choosing a wireless device, you expand your capabilities, freeing yourself from wires and the restrictions associated with them.However, the device can operate not only from a battery, but also from a standard unit through an additional adapter with an RCA connector. Continuous battery life: ≈...
- Page 4 Built-in eccentric The VECTOR device combines three devices in one, because it is equipped with 7 interchangeable eccentrics, which could be switched easily on the maniple. A short needle stroke will work perfectly with high coverage coloring and linear technique; the medium stroke is suitable...
- Page 5 VECTOR is a collapsible device that is subject to service maintenance and replacement of all its parts in case of breakage.
- Page 6 Easy navigation VECTOR is equipped with a new generation processor that provides flawless control. The LED display responds to your touch instantly, allowing you to adjust the power of the device comfortably. Battery indicator. Timer for calculating working time, which can be paused.
- Page 7 Control Holding down the power button turns the device on and off. A quick double-click on the power button turns the Jump-start feature on and off. Voltage increase Battery indicator Power button Voltage decrease Adjustment step 0,1 V Short press of the central button - pause.
- Page 8 Needle stroke adjustment *putting the device on hold beforehand is recommended Needle stick-out adjustment...
-
Page 9: Specifications
Specifications Lengt 123 mm Adjustable needle 2.4 2.7 3.0 3.3 hang out 3.6 3.9 4.2 mm Weight 188 g Motor power Rotational 6.500 rpm speed Voltage 4 — 12 V Weight with box 496 g device , Equipment 2 batteries RCA adapter RCA clipcord , charging cable... - Page 10 Сolors Stealth, Gunmetal, Chromium, Baby Blue Designed in the USA...
- Page 11 Battery Capacity 1500mAh Type polymer lithium Charging time 2 hours Battery life ≈5 hours Charger DC 5V/2A (Type-C USB cable) protection from short Safety circuit, overcharging and overdischarging...
- Page 12 Equipment Device, 2 batteries, RCA adapter RCA clipcord , charging cable, Friction Stabilizing O-Ring.
- Page 13 Swivel holder Charging USB Type-C Cartridge slot Repair kit RCA slot Friction Stabilizing O-Ring RCA adapter Warranty card RCA clip cord Battery...
-
Page 14: Installing The Battery
Installing the battery... -
Page 15: Detaching The Battery
Detaching the battery... - Page 16 Installing the RCA adapter...
- Page 17 Detaching the RCA adapter...
- Page 18 Features Pls load needle at the unit was paused,dont attach needle when machine is running. Machine will start with previously adjusted Voltage. Charging bar will appear and run when is charging. TIMER start to working when machine is running and colon is blinking as well,when the unit is paused or stopped,TIMER will be paused or stopped,Timer record will be cleaned when the unit is turned off.
- Page 19 Error remind E1: The display shows E1 which is short circuit protection.Restart the unit to run agian. If it cannot be activated, please switch the battery pack to another pen to check is it working. If it does not work, pls replace another battery pack.
-
Page 20: Warranty
Warranty Device will be covered by a 1-year warranty from the date of purchase. Exclusions: The warranty does not coverage extend to damage caused by misuse, abuse, unauthorized modification, improper storage conditions, lightning, or natural disasters. The warranty does not cover parts that are subject to normal wear and tear, such as power cords. -
Page 21: Limits Of Liability
The device was disassembled or underwent self-repair (without the manufacturer's permission). The device or its components have been changed. Limits of Liability Should the product fail, your sole recourse shall be repair or replacement, as described in the preceding paragraphs. We will not be held liable to you or any other party for any damages that result from the failure of this product. - Page 22 What can I do in case of malfunction of the device? Send an email to service@defenderrsupply.com with a description of the problem. Please, attach a video to the letter in order for us to make primary diagnostics and find a solution. Estimated response time is 3 business days.
- Page 23 For partnership and cooperation info@defenderrsupply.com www.defenderrsupply.com @defenderrofficial English speakers @defenderrsupply Russian speakers © Defenderr Co.
