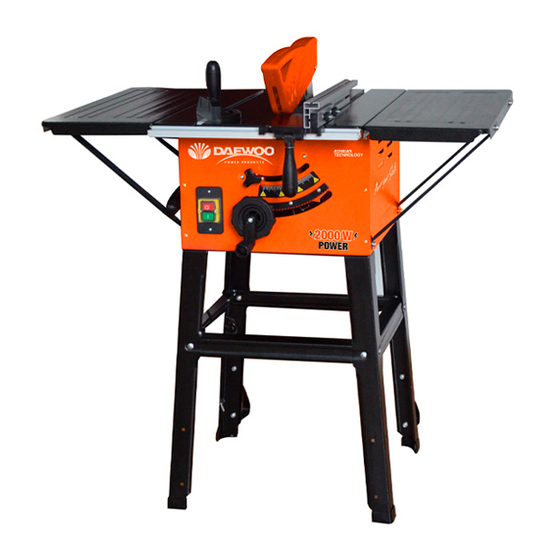

DATS250
Table saw
USER'S MANUAL
www.daewoopowerproducts.com
Manufactured under license of Daewoo International Corporation, Korea

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DATS250 and is the answer not in the manual?

Questions and answers

Summary of Contents for Daewoo DATS250

  • Page 1 DATS250 Table saw USER'S MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
  • Page 2: Table Of Contents

    INDEX 1. SYMBOLS MAYBE USE IN LABEL OR MANUAL .................. 2 2. GENERAL SAFETY INSTRUCTIONS ...................... 3 3. STORAGE ..............................6 4. TRANSPORT ............................6 5. MAINTENANCE ............................6 6. ENVIROMENT PROTECTION ........................6 7. INSTALLATION AND ASSEMBLY ......................9 8.
  • Page 3: Symbols Maybe Use In Label Or Manual

    We recommend: Read through the complete text in the operating instructions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.
  • Page 4: General Safety Instructions

    2. GENERAL SAFETY INSTRUCTIONS Proper use of the product The machine is designed for trimming as well as cutting wood and plastic both lengthwise and cross-wise (only with cross stopper), in accordance with the size of the machine. The machine is not designed to cut firewood.
  • Page 5 sharp edges. 12. Secure work Where possible use clamps or a vice to hold the work. It is safer than using your hand. 13. Do not overreach Keep proper footing and balance at all times. 14. Maintain tools with care Keep cutting tools sharp and clean for better and safer performance.
  • Page 6: Storage

    before it is connected. • The machine may only be used within the specified limitations for voltage, power and nominal rotation speed. • If necessary, only use extension cords that are appropriate for both the machine and the environ- ment. If in doubt, ask an expert in electrical matters. •...
  • Page 7: Maintenance

    5. MAINTENANCE WARNING! Prior to any adjustment, maintenance or service work disconnect the mains power plug! • Only those maintenance and fault elimination tasks described in these operating instructions may be carried out. Any other tasks must be completed by a specialist. •...
  • Page 8 vary from country to country. This information, however, will enable the user of the machine to make a better evaluation of the hazard and risk. Protection category II...
  • Page 9 Package list (Pic.3) Layout (Pic.1&Pic.2) 1. Width extension table x2pcs 1. Width extension table 2. Cross stop x1pc 2. Cross stop 3. Saw blade guard 3. Saw blade guard x1pc 4. Parallel stop/Fence 4. Parallel stop x1pc 5. Adjusting and locking grip 4-1.
  • Page 10: Installation And Assembly

    7. INSTALLATION AND ASSEMBLY Before starting the equipment • The equipment must be set up where it can stand securely, i.e. it should be bolted to a workbench, a universal base frame or similar. • All covers and safety devices have to be properly fitted before the equipment is switched on. •...
  • Page 11 9.1 Assembling the base frame (Pic.4-Pic.7) 1. Turn the saw upside down and place it on the floor. 2. Use round head screws (d), Flat washer (c) and Spring washers (b) and nuts (a)to fasten the four support stands(8) loosely to the saw (Pic.4),each support stands will use 2 sets screws.For this please use the Open-ended wrench.
  • Page 12 9.3 Fitting / removing the saw blade guard 1.Turn the round handle (7)in clockwise to set the blade to the required cutting depth. 2. The distance between the blade and the splitter (13) should be max. 5 mm. (Pic. 9). 3.Place the saw blade guard (3) together with the screw which is fixed together with the saw blade guard when you take out from package, so you need loose the screw from saw blade guard firstly and then make it on top of the splitter (13) so that the screw is snug in the hole (as Pic.10).
  • Page 13 • Turn the handle wheel to set the desired angle on the scale and lock the grip (5). • Lock the handle wheel (7) again in the required angle position. 9.4 Parallel stop 9.4.1 Stop height (Pic.11 &11.1&Pic.12&12.1) • The fence(4-1) for the parallel stop (4) has two different guide faces (high and low). •...
  • Page 14 9.4.3 Cutting width (Pic.13) • The parallel stop (4) has to be used when making longitudinal cuts in wooden workpieces. • The parallel stop (4)should be mounted on the right-hand side of the saw blade (16). • Place the parallel stop(4) on the the scale plate (18) . •...
  • Page 15: Operation

    9.6 Changing the table insert (Pic. 16) IMPORTANT! Pull out the power plug. 1. To prevent increased likelihood of injury, the table insert (17) should be changed whenever it is worn or damaged. 2. Remove the 2 countersunk head screws (17a&17b). 3.
  • Page 16 10.1 Making longitudinal cuts (Pic.18) Longitudinal cutting (also known as slitting) is when you use the saw to cut along the grain of the wood. Press one edge of the workpiece against the parallel stop (4&4-1) while the flat side lies on the saw table .
  • Page 17 as far as the front edge of the saw blade guard (3). • Always push the workpiece through to the end of the splitter (13). • The offcut piece remains on the saw table until the blade (16) is back in its position of rest. •...
  • Page 18: Trouble Shooting

    9. TROUBLE SHOOTING Problem Cause Remedy Machine doesn’t work. No power. Check mains socket, cable, replace the switch. Power cable doesn’t connect switch. Machine doesn’t run smoothly. Check the cutting disc for Replace the disc. damage. Cutting power too low. Flange on cutting disc loosen.
  • Page 19: Exploded View And Spare Part List

    11. EXPLODED VIEW AND SPARE PART LIST...
  • Page 20 56. The chuck 1. Steel plate mesa 2. Hexagon screw M6*12 57. Saw blade guard 3. Self-locking nut 58. The distributor is fixed 4. Main work table 59. A table saw brake column 5. Plastic insert 60. A table saw brake spring 6.
  • Page 21: Warranty

    WARRANTY CARD Product model Date of sale Company Serial number Client's signature Username The product is in good conditions and fully complete. Read and agree the terms of the warranty. GUARANTEE The warranty period starts from the date of sale of the products and covers 6 months for all power products. During the warranty period, free failures caused due to the use of poor-quality materials in the production and manufacturer workmanship admitted fault are removed.
  • Page 22 Manufactured under license of Daewoo International Corporation, Korea...
