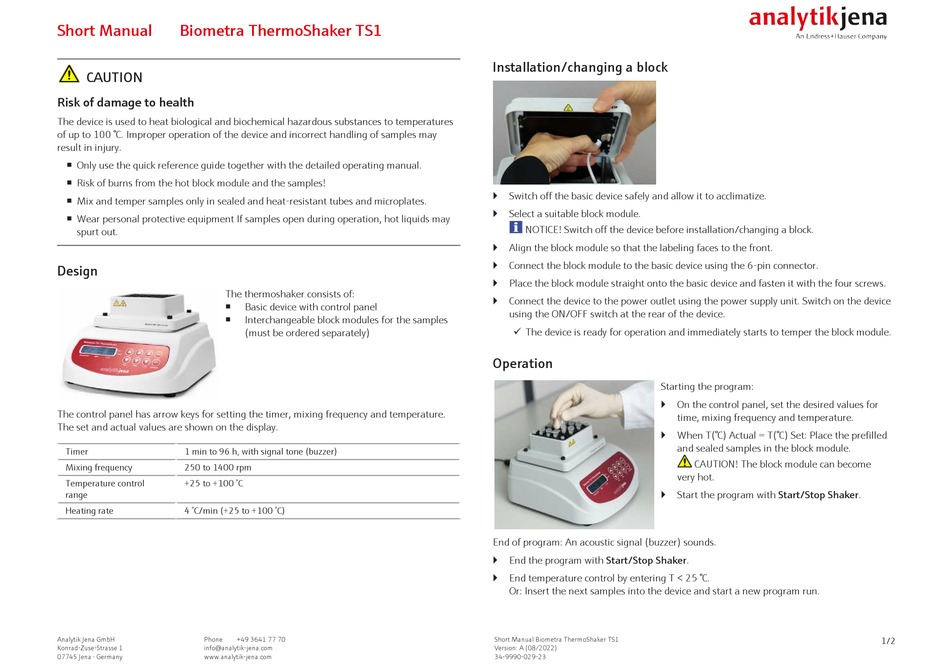

Short Manual Biometra ThermoShaker TS1
CAUTION
Risk of damage to health
The device is used to heat biological and biochemical hazardous substances to temperatures
of up to 100 °C. Improper operation of the device and incorrect handling of samples may
result in injury.
¡ Only use the quick reference guide together with the detailed operating manual.
¡ Risk of burns from the hot block module and the samples!
¡ Mix and temper samples only in sealed and heat-resistant tubes and microplates.
¡ Wear personal protective equipment If samples open during operation, hot liquids may
spurt out.
Design

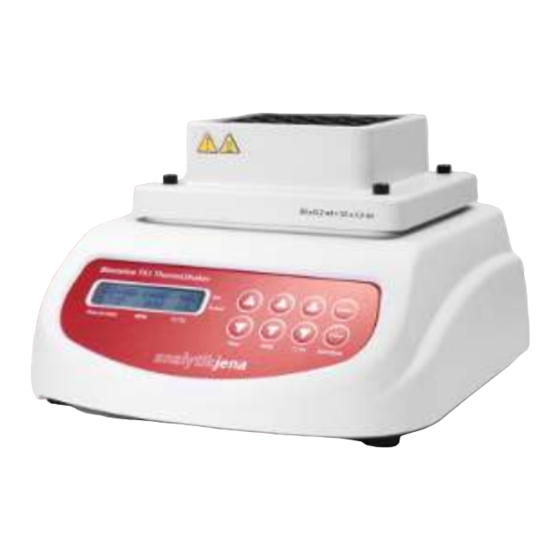

The thermoshaker consists of:
¡
¡
The control panel has arrow keys for setting the timer, mixing frequency and temperature.
The set and actual values are shown on the display.
Timer 1 min to 96 h, with signal tone (buzzer)
Mixing frequency 250 to 1400 rpm
Temperature control +25 to +100 °C
range
Heating rate 4 °C/min (+25 to +100 °C)
Analytik Jena GmbH Phone +49 3641 77 70
Konrad-Zuse-Strasse 1 info@analytik-jena.com
07745 Jena ⋅ Germany www.analytik-jena.com
Basic device with control panel
Interchangeable block modules for the samples
(must be ordered separately)
Installation/changing a block
} Switch off the basic device safely and allow it to acclimatize.
} Select a suitable block module.
NOTICE! Switch off the device before installation/changing a block.
} Align the block module so that the labeling faces to the front.
} Connect the block module to the basic device using the 6-pin connector.
} Place the block module straight onto the basic device and fasten it with the four screws.
} Connect the device to the power outlet using the power supply unit. Switch on the device
using the ON/OFF switch at the rear of the device.
ü The device is ready for operation and immediately starts to temper the block module.
Operation
Starting the program:
} On the control panel, set the desired values for
} When T(°C) Actual = T(°C) Set: Place the prefilled
} Start the program with Start/Stop Shaker.
End of program: An acoustic signal (buzzer) sounds.
} End the program with Start/Stop Shaker.
} End temperature control by entering T < 25 °C.
Or: Insert the next samples into the device and start a new program run.
Short Manual Biometra ThermoShaker TS1
Version: A (08/2022)
34-9990-029-23
time, mixing frequency and temperature.
and sealed samples in the block module.
CAUTION! The block module can become
very hot.
1/2
