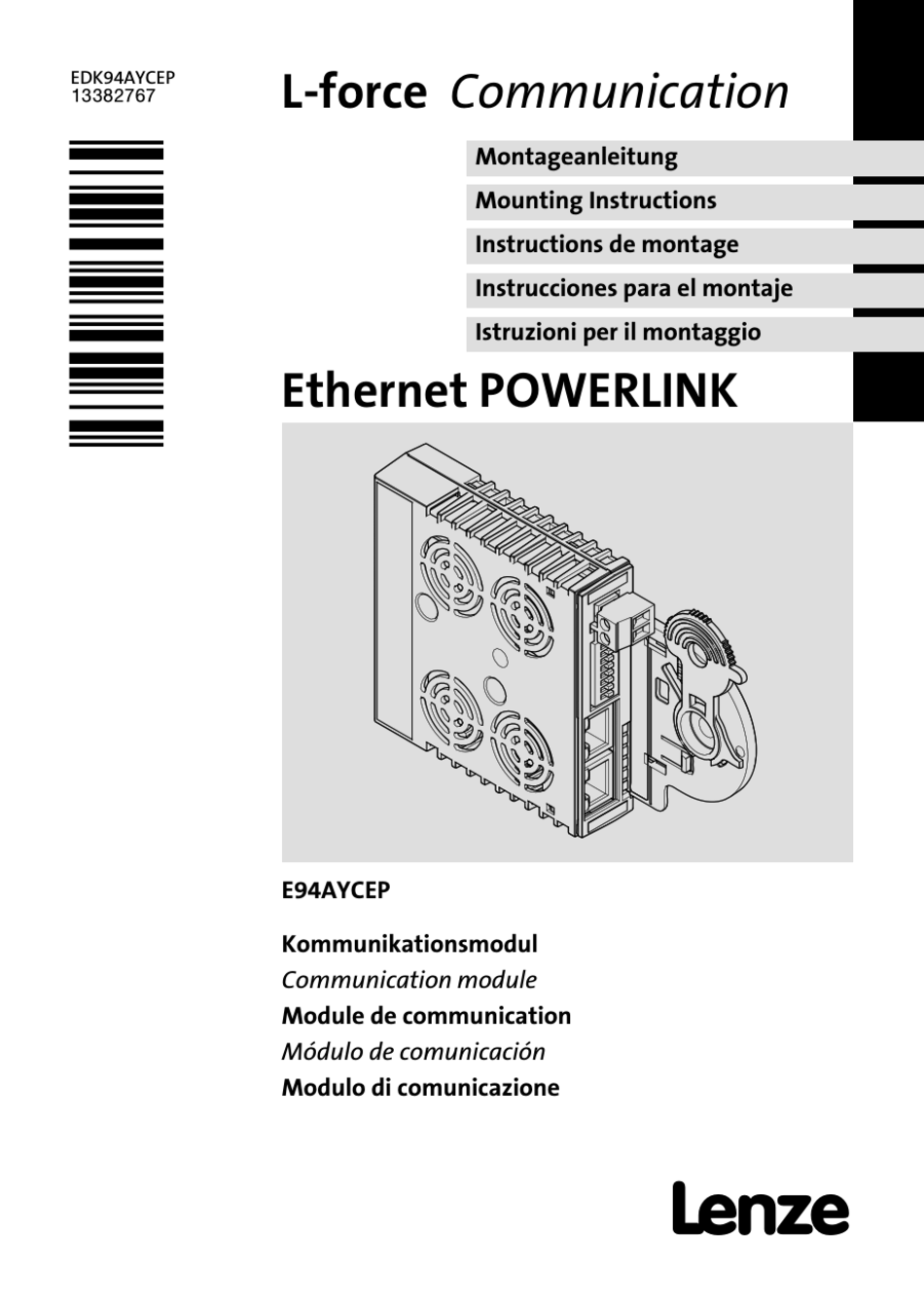

- Page 1 EDK94AYCEP L−force Communication .G<d Montageanleitung Mounting Instructions Instructions de montage Instrucciones para el montaje Istruzioni per il montaggio Ethernet POWERLINK E94AYCEP Kommunikationsmodul Communication module Module de communication Módulo de comunicación Modulo di comunicazione...
- Page 2 Lesen Sie zuerst diese Anleitung, bevor Sie mit den Arbeiten beginnen! Beachten Sie die enthaltenen Sicherheitshinweise. Please read these instructions before you start working! Follow the enclosed safety instructions. Veuillez lire attentivement cette documentation avant toute action ! Les consignes de sécurité doivent impérativement être respectées. Lea las instrucciones antes de empezar a trabajar.
- Page 3 E94YCEP001A E94YCEP017...
- Page 4 Legend for fold−out page Pos. Description Detailed information X210 Connection for external voltage supply ^ 42 2−pole plug connector with screw connection Ethernet POWERLINK connections X211 ^ 39 RJ45 socket according to IEC 60603−7 X212 ^ 43 S233 DIP switches for addressing the node ^ 45 LED status displays for diagnostics 0Fig.
-
Page 5: Table Of Contents
Contents About this documentation ......... . . Conventions used . -
Page 6: About This Documentation
ƒ information on the mechanical and electrical installation of the communication module; ƒ safety instructions which must be observed by all means; ƒ information about versions of the Lenze standard devices to be used; ƒ Information on the LED status displays. Validity information... -
Page 7: Conventions Used
About this documentation Conventions used Conventions used This documentation uses the following conventions to distinguish between different types of information: Type of information Identification Examples/notes Numbers Decimal separator Point The decimal point is used throughout this documentation. Example: 1234.56 Symbols Page reference Reference to another page with additional information... -
Page 8: Notes Used
About this documentation Notes used Notes used The following pictographs and signal words are used in this documentation to indicate dangers and important information: Safety instructions Structure of safety instructions: Danger! (characterises the type and severity of danger) Note (describes the danger and gives information about how to prevent dangerous situations) Pictograph and signal word Meaning... - Page 9 About this documentation Notes used Application notes Pictograph and signal word Meaning Important note to ensure troublefree operation Note! Useful tip for simple handling Tip! Reference to another documentation EDK94AYCEP DE/EN/FR/ES/IT 4.0...
-
Page 10: Safety Instructions
Safety instructions Safety instructions Danger! Inappropriate handling of the communication module and the standard device can cause serious personal injury and material damage. Observe the safety instructions and residual hazards described in the documentation for the standard device. Stop! Electrostatic discharge Electronic components of the communication module can be damaged or destroyed through electrostatic discharge. -
Page 11: Product Description
ƒ Managing node (support of up to 50 nodes) ƒ Controlled node Application as directed The communication module ... ƒ is an accessory module which can be used in conjunction with the following Lenze standard devices: Product series Type designation... -
Page 12: Identification
Product description Identification Identification E94YCEI003C ‚ ƒ 0.50 Product series Device generation Module identification: extension module Module type: communication module Ethernet POWERLINK Hardware version Software version EDK94AYCEP DE/EN/FR/ES/IT 4.0... -
Page 13: Technical Data
Technical data General data Technical data General data Field Values Order designation E94AYCEP Communication profile Ethernet POWERLINK V2 Communication medium S/FTP (Screened Foiled Twisted Pair, ISO/IEC 11801 or EN 50173), CAT Interface for RJ45: Standard Ethernet (according to IEEE 802.3), 100Base−TX (fast communication Ethernet) Cable length between... -
Page 14: Dimensions
Technical data Dimensions Dimensions E94YCXX005 89 mm 134 mm 87 mm 23 mm EDK94AYCEP DE/EN/FR/ES/IT 4.0... -
Page 15: Mechanical Installation
Mechanical installation Mechanical installation Mounting E94YCXX001G Dismounting E94AYCXX001H EDK94AYCEP DE/EN/FR/ES/IT 4.0... -
Page 16: Electrical Installation
Electrical installation Wiring according to EMC Electrical installation Wiring according to EMC In typical systems, standard shielding of the Ethernet cables is sufficient. In environments with a very high level of interference, immunity to noise can be improved by additionally earthing the cable shield on both sides. Observe the following notes for this: 1. -
Page 17: Ethernet Powerlink Connection
Electrical installation Ethernet POWERLINK connection Ethernet POWERLINK connection You can use a standard Ethernet patch cable for connection to the communication module (see "Ethernet cable specifications" (^ 41)). Mounting and dismounting of the Ethernet cables has been optimised for the use of connectors according to the "Automation Initiative of German Domestic Automobile Manufacturers"... - Page 18 Electrical installation Ethernet POWERLINK connection Pin assignment RJ45 socket Signal Tx + Tx − Rx + − − Rx − − E94YCEP004C − Tip! The Ethernet POWERLINK interfaces are equipped with an auto−MDIX function. This function adapts the polarity of the RJ45 interfaces such that independently of the polarity of the opposite Ethernet POWERLINK interface and the cable type used (standard patch cable or crossover cable) a connection is established.
- Page 19 Electrical installation Ethernet POWERLINK connection Ethernet cable specifications Note! Only use cables complying with the below specifications. Specification of the Ethernet cable Ethernet standard Standard Ethernet (in accordance with IEEE 802.3), 100Base−TX (Fast Ethernet) Cable type S/FTP (Screened Foiled Twisted Pair, ISO/IEC 11801 or EN 50173), CAT 5e Damping 23.2 dB (at 100 MHz and per 100 m)
-
Page 20: External Voltage Supply
Electrical installation External voltage supply External voltage supply Note! Always use a separate power supply unit in every control cabinet and safely separate it according to EN 61800−5−1 ("SELV"/"PELV") in the case of external voltage supply and larger distances between the control cabinets. The external voltage supply of the communication module is required if the Ethernet POWERLINK communication is to be continued in case the supply of the standard device fails.
