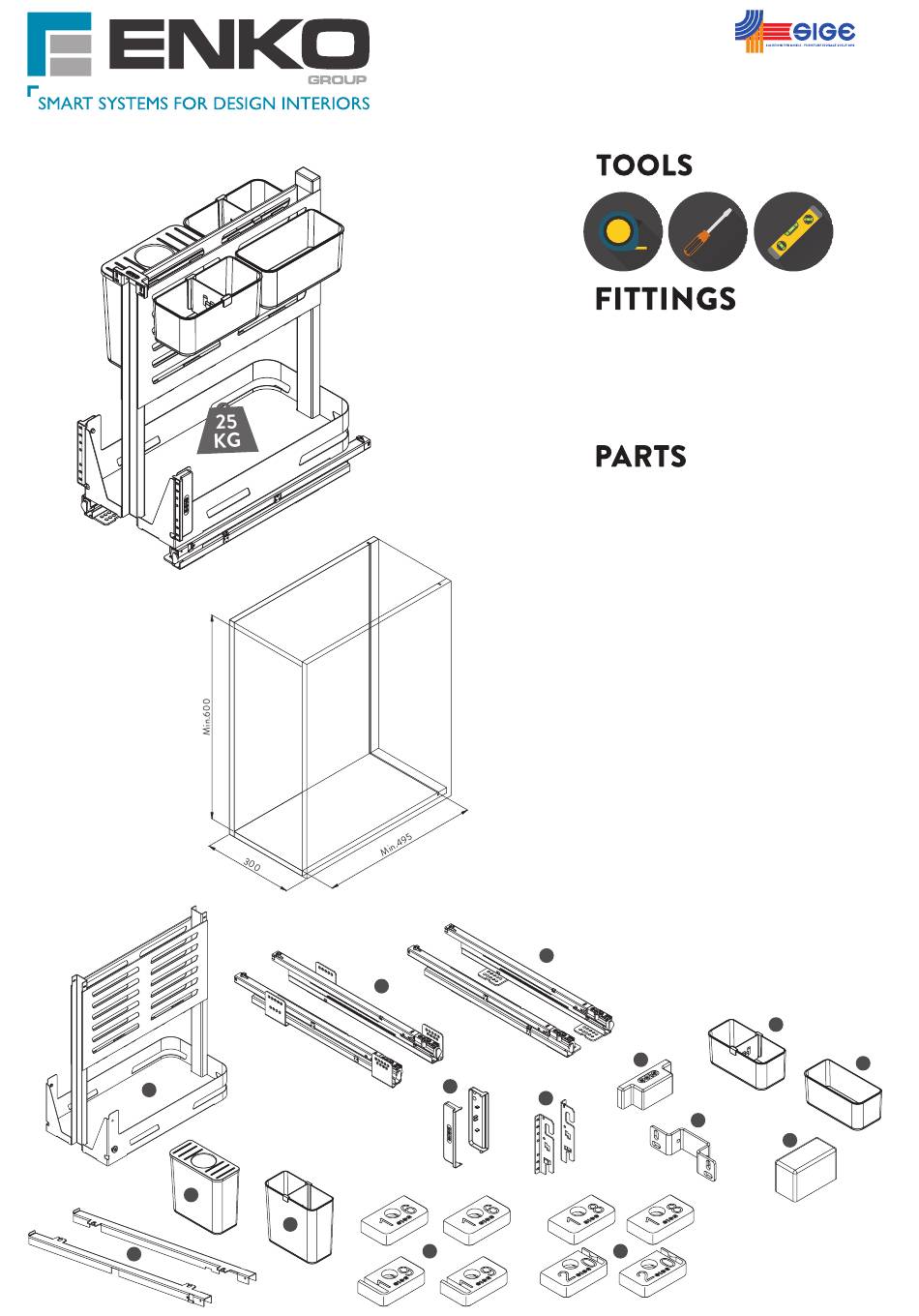

SIGE MULTI-HUB
INSTALLATION INSTRUCTIONS
D C
B
C
N
H
H
G
G
F
14 x 4x16 Self-tapping Screws
4 x 6.3x12 Eurovite Screws
2 x M4x8 Screws
8 x 3.9x13 Self-tapping Screws
2 x M6x10 Screws
2 x
Washers
A. 1 x Basket
B. 1 x Side Slides Set
C. 1 x Bottom Slides Set
D. 2 x Slides Carter
E. 1 x Cabinet Side Thickness Spacer Kit 18/20mm
F. 1 x Cabinet Side Thickness Spacer Kit 16/19mm
G. 1 x Door Fixing Bracket Kit
H. 2 x Door Fixing Covers
I. 1 x Top Door Fixing Bracket
J. 1 x Top Door Fixing Cover
K. 1 x Frame Back Cover
L. 1 x Spoon Holder Bucket Kit
M. 1 x Knife Holder Bucket Kit
N. 1 x Spice Holder Bucket Kit
O. 1 x Hanging Basket
J
K
I
J
F
E
O N
P
O
K
L
Advertisement
Table of Contents
Related Manuals for Enko SIGE MULTI-HUB
Summary of Contents for Enko SIGE MULTI-HUB
- Page 1 SIGE MULTI-HUB INSTALLATION INSTRUCTIONS 14 x 4x16 Self-tapping Screws 4 x 6.3x12 Eurovite Screws 2 x M4x8 Screws 8 x 3.9x13 Self-tapping Screws 2 x M6x10 Screws Washers A. 1 x Basket B. 1 x Side Slides Set C. 1 x Bottom Slides Set D.
- Page 2 8x 4x16 Place slides B or C respecting showed data and screw them in the cabinet. NB: Follow the the data on the left for side fixing slides B or the data on the right for bottom fixing slides C. 163,5 MIDDLE LINE 6x 3.9x13...
- Page 3 4x 6.3x12 Screw the carter D onto the shelf using the 6.3x12 eurovites. CLICK! Fit basket A on slides B or C. 2x M4x8 Pre-assemble the top door fixing bracket I on basket A. Mount the door on basket A and pre-assemble the M6x10 screws and washers as shown.
- Page 4 2x 3.9x13 Adjust the door up and down by turning the eccentric screw, then tighten the two M6x10 screws. Fix the top door fixing bracket I to the door by using two 3.9x13 screws. Adjust the door inclination to the front or to the back, than tighten the two M4x8 screws. Mount the buckets.
