Ameriwood HOME Carver 5990296COM Manual

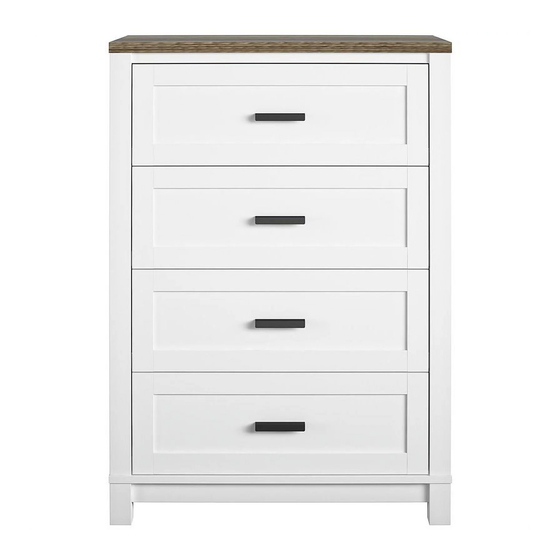

4 drawer dresser
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
5990296COM
Carver 4 Drawer Dresser
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
B345990296COM 00NHH
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
You
Tube
Tough

Advertisement

loading
Need help?

Need help?

Do you have a question about the Carver 5990296COM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ameriwood HOME Carver 5990296COM

Summary of Contents for Ameriwood HOME Carver 5990296COM

  • Page 1 Visit: www.ameriwoodhome.com Tough Assembly Difficulty Meter WARNING Follow Ameriwood Home - Unit can tip over causing severe injury or death. Tube - Anchor unit to stud in wall (if instructed to). - Do Not allow children to climb on unit.

  • Page 2: Helpful Hints

    Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit ameriwoodhome.com Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 2 ESTIMATED ASSEMBLY TIME: 1.5 HOUR - Open your item in the area you plan to keep it to avoid excessive heavy lifting.

  • Page 3: Before You Start

    Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight.

  • Page 4: Board Identification

    Board Identification Not Actual Size 5990296 5990296 5990296 010NHH 020NHH 030NHH TOP PANEL LEFT SIDE PANEL RIGHT SIDE PANEL 5990296 5990296 5990296 040NHH 050NHH 060NHH BOTTOM PANEL TOP MOLDING LEFT DRAWER SIDE 5990296 5990296 5990296 070NHH 080NHH 090NHH RIGHT DRAWER SIDE DRAWER FRONT DRAWER BACK ameriwoodhome.com...
  • Page 5 Board Identification Not Actual Size 5990296 5990296 5990296 100NHH 110NHH 120NHH DRAWER BOTTOM SIDE RAIL 5990296 5990296 5990296 130NHH 140NHH 150NHH FRONT & BACK RAIL DRAWER SUPPORT BACK PANEL 5990296 5990296 160NHH 170NHH FRONT SUPPORT BACK SUPPORT ameriwoodhome.com Tube...
  • Page 6 Board Identification Not Actual Size ameriwoodhome.com Tube...

  • Page 7: Part List

    Hardware Bag Reference Number: 25990296COM 0NHH Part List Not Actual Size Ø6X32 mm Ø15X10 mm Ø8X25 mm × 42 × 42 × 30 CAM BOLT CAM LOCK WOOD DOWEL TNHH0001 TNHH0002 TNHH0005 Ø3.5X14 mm Ø4X40 mm × 18 × 60 ×...
  • Page 8 Part List Not Actual Size × 4 × 1 HANDLE ANTI TIPPING KIT TNHH0013 TNHH0014 ameriwoodhome.com Tube...
  • Page 9 STEP Ø6X32 mm × 36 × 1 1.1 Attach (1) to (A), (H), (I) & (L) as illustrated. Do NOT over tighten. 1.2 Attach L-bracket (11) to (A) with short screw as illustrated. I x4 L x4 H x4 ameriwoodhome.com Tube...
  • Page 10 STEP Ø8X25 mm × 34 2.1 Attach (3) to (M), (K), (Q), (P) & (N) as illustrated M x2 K x2 Q x2 P x1 N x4 ameriwoodhome.com Tube...
  • Page 11 STEP Ø6X32 mm Ø8X25 mm × 3 × 4 Ø3.5X14 mm ( CR ) × 16 × 4 3.1 Attach (1) to (C) as illustrated. Do NOT over tighten. 3.2 Attach (9) to (C) with (5) as illustrated. 3.3 Attach (3) to (C) as illustrated Screw Position ameriwoodhome.com Tube...
  • Page 12 STEP Ø6X32 mm Ø8X25 mm × 3 × 4 Ø3.5X14 mm ( CL ) × 16 × 4 4.1 Attach (1) to (B) as illustrated. Do NOT over tighten. 4.2 Attach (9) to (B) with (5) as illustrated. 4.3 Attach (3) to (B) as illustrated Screw Position ameriwoodhome.com Tube...
  • Page 13 STEP M4X40 mm × 3 5.1 Attach (E) to (A) with (6) as illustrated. ameriwoodhome.com Tube...
  • Page 14 STEP Ø15X10 mm × 8 Proper orientation of CAM LOCK 6.1 Attach (L) to (K), (M) with (2) as illustrated. ameriwoodhome.com Tube...
  • Page 15 STEP M4X40 mm × 4 7.1 Attach (D) to (L) with (6) as illustrated. ameriwoodhome.com Tube...
  • Page 16 STEP Ø3.5X14 mm × 4 × 2 8.1 Attach (9) to (M) & (D) with (5) as illustrated. ameriwoodhome.com Tube...
  • Page 17 STEP Ø15X10 mm × 3 Proper orientation of CAM LOCK 9.1 Attach (P), (Q) to (B) with (2) as illustrated. ameriwoodhome.com Tube...
  • Page 18 STEP Ø15X10 mm × 3 Proper orientation of CAM LOCK 10.1 Attach (C) to (P) & (Q) with (2) as illustrated. ameriwoodhome.com Tube...
  • Page 19 STEP M4X40 mm × 4 11.1 Attach sample from Step 8 to (B) & (C) with (6) as illustrated. ameriwoodhome.com Tube...
  • Page 20 STEP Ø15X10 mm × 4 Proper orientation of CAM LOCK 12.1 Attach (A) to (B) & (C) with (2) as illustrated. ameriwoodhome.com Tube...
  • Page 21 STEP × 18 13.1 Attach (O) to sample from step (12) with (4) straight into the raw edges as illustrated. CAUTION: · Ensure that the unit is square. · Distance from corner to corner must be equal as shown. ameriwoodhome.com Tube...
  • Page 22 STEP Ø15X10 mm × 20 Proper orientation of CAM LOCK 14.1 Attach (F), (G) & (N) to (H) with (2) as illustrated. ameriwoodhome.com Tube...
  • Page 23 STEP 15.1 Slip (J) in inside the groove of (H), (F) & (G) ameriwoodhome.com Tube...
  • Page 24 STEP Ø15X10 mm × 4 Proper orientation of CAM LOCK M4X40 mm × 16 16.1 Attach (I) to (G) & (F) with (6) as illustrated. 16.2 Attach (I) to (N) with (2) as illustrated. ameriwoodhome.com Tube...
  • Page 25 STEP M4X16 mm × 8 × 4 17.1 Attach (10) to (H) with (7) as illustrated. ameriwoodhome.com Tube...
  • Page 26 STEP Ø3.5X14 mm ( DR & DL ) × 24 × 4 18.1 Attach (9) to sample from Step 17 with (5) as illustrated. Screw Position Screw Position ameriwoodhome.com Tube...
  • Page 27 STEP For Masonry, Concrete, or other wall materials: Consult your local hardware store for appropriate anchors to securely attach the safety bracket. × 1 hole WARNING stud Serious or fatal crushing injuries can occur from furnitur To prevent tip over. * Install tip over restraint provided.
  • Page 28 STEP 20.1 Insert the drawers. ameriwoodhome.com Tube...

  • Page 29: Maximum Loads

    Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 45.0 lbs./ 20.4 kg 35.0 lbs/ 15.9 kg (each drawer ) Warning: Risk of injury to persons - do not place a television on this furniture. This furniture is not approved for use with a television.
  • Page 30 Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You" to all of our customers for taking the time to assemble this Ameriwood Home product, and to give us your valuable feedback. ameriwoodhome.com Tube...
  • Page 31 Español Cubierta Delantera Este libro de instrucciones contiene información IMPORTANTE de seguridad. Por favor lea y manténgalo para referencia en el futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda. Llamenos al: 1-800-489-3351 (Gratis) Lunes - Viernes 9am - 5pm CST Visitar: www.ameriwoodhome.com PRECAUCION Este mueble puede volcarse y causar graves heridas y/o muerte.
  • Page 32 Español Identificación de los Paneles (Página 4-6) Lista de Piezas (Página 7-8) Este no es el tamaño real Este no es el tamaño real PANEL SUPERIOR PERNO DE LEVA PANEL LATERAL IZQUIERDO BLOQUEO DE LEVA PANEL LATERAL DERECHO PASADOR DE MADERA PANEL INFERIOR CLAVO MOLDURA SUPERIOR...
  • Page 33 Español Página 18 10.1 Fije (C) a (P) y (Q) con (2) como se ilustra. Página 19 11.1 Adjunte la muestra del Paso 8 a (B) y (C) con (6) como se ilustra. Página 20 12.1 Fije (A) a (B) y (C) con (2) como se ilustra. Página 21 13.1 Fije (O) a la muestra del paso (12) con (4) directamente en los bordes sin procesar como se ilustra.
  • Page 34 Visite el sitio web de su distribuidor local, califique el producto que compró y déjenos sus comentarios. Nos gustaría enviar un gran "Agradecimiento" a todos nuestros clientes por tomarse el tiempo de ensamblar este producto de Ameriwood Home, y por darnos sus valiosos comentarios. Gracias ameriwoodhome.com...
  • Page 35 Français Couverture Avant CE LIVRET D'INSTRUCTION CONTIENT DES INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ. VEUILLEZ LIRE ET GARDER POUR UNE RÉFÉRENCE FUTURE Ne retournez pas ce produit! Contactez notre équipe de service à la clientèle amicale d'abord pour obtenir de l'aide. Appelez-nous: 1-800-489-3351 (sans frais) du Lundi au Vendredi de 9h à...
  • Page 36 Français Identification des matériaux (Page 4-6) Liste des pièces (Page 7-8) Pas de taille réelle Pas de taille réelle PANNEAU SUPÉRIEUR BOULON DE CAME PANNEAU LATERAL GAUCHE VERROUILLAGE À CAME PANNEAU LATÉRAL DROIT GOUJON EN BOIS PANNEAU INFÉRIEUR CLOU MOULURE SUPÉRIEURE CÔTÉ...
  • Page 37 Français Page 18 10.1 Fixez (C) à (P) et (Q) avec (2) comme illustré. Page 19 11.1 Fixez l'échantillon de l'étape 8 à (B) et (C) avec (6) comme illustré. Page 20 12.1 Fixez (A) à (B) et (C) avec (2) comme illustré. Page 21 13.1 Fixez (O) à...
  • Page 38 Visitez le site Web de votre détaillant local, évaluez le produit que vous avez acheté et laissez-nous vos commentaires ! Nous tenons à offrir un grand "Merci" à tous nos clients pour avoir pris le temps d'assembler ce produit "Ameriwood Home", et de nous donner vos commentaires précieux. Merci ameriwoodhome.com...
