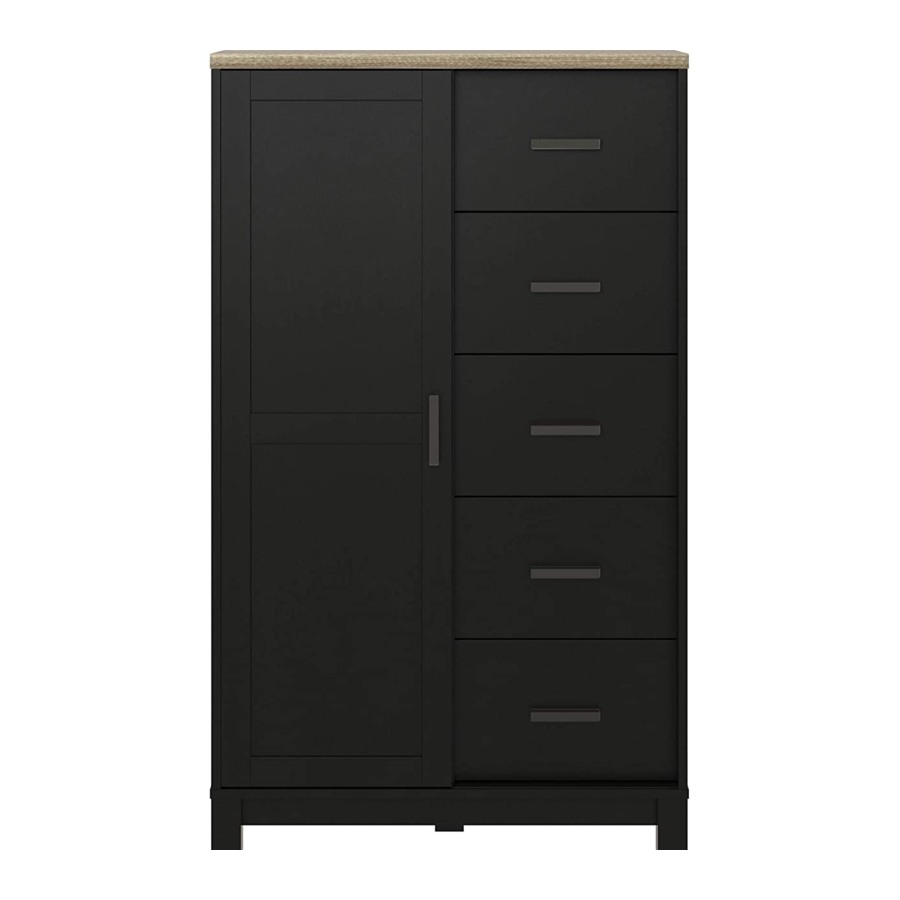

BBBBBBBBBB
BCCCCC CCCCCCCCCCC BCCCC
Date of Purchase: ____/____/_____
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNINC
–Unit can tip over causing severe injury or death.
–Anchor unit to stud in wall (if instructed to)
–Do not allow children climb on unit
–Put heavy items on lower shelves or drawers
BBBBBBBBBBBBB
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
Tough
Advertisement
Related Manuals for Ameriwood HOME 5991196COM
Summary of Contents for Ameriwood HOME 5991196COM
- Page 1 Easy Tough Assembly Difficulty Meter WARNINC Follow Ameriwood Home –Unit can tip over causing severe injury or death. –Anchor unit to stud in wall (if instructed to) –Do not allow children climb on unit –Put heavy items on lower shelves or drawers...
- Page 2 Do NOT return this product! Contact our friendly customer service team first for help Call us! Assembly Tips 1-800-489-3351 Monday-Friday 9am - 5pm CST Visit ameriwoodhome.com HCCpfuC HiCCC PEOPLE NEEDED FOR ASSEMBLY: 1-2 ESTIMATED ASSEMBLY TIME: 1 HOUR - Open your item in the area you plan to keep it for less heavy lifting - Identify, sort and count the parts before attempting assembly - Compression dowels are tapped in with a hammer - Slides are labeled with a R (right) and L (left) for proper placement...
- Page 3 BCfoCC You SCCCC Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight.
- Page 4 BoCCd IdCCt f cCt oC Not actual size T5991196010 T5991196020 T5991196030 TOP PANEL LEFT SIDE PANEL RIGHT SIDE PANEL T5991196040 T5991196050 T5991196060 BOTTOM PANEL PARTITION LEFT DRAWER SIDE T5991196080 T5991196070 T5991196090 FRONT DRAWER RIGHT DRAWER SIDE BACK DRAWER ameriwoodhome.com...
- Page 5 BoCCd IdCCt f cCt oC Not actual size T5991196100 T5991196110 T5991196120 DRAWER BOTTOM SIDE RAIL T5991196130 T5991196160 T5991196150 T5991196140 FRONT & BACK RAIL BACK PANEL SHELF DOOR T5991196170 T5991196180 CENTER LEG FRONT SUPPORT ameriwoodhome.com...
-
Page 6: Actual Size
Hardware Bag Reference Number: 25991196COM0 PCCC LiCC Actual Size TUD0001 TUD0002 TUD0004 Cam Bolt Cam Lock DOWEL 8 X 25 15-12 TUD0008 TUD0009 TUD0006 CBS 3.5 x 16 CBS 4 x 38 NAIL TUD0010 TUD0018 TUD0020 PH M4 X 18 SHELF HOLDER L-BRACKET ameriwoodhome.com... - Page 7 Hardware Bag Reference Number: 25991196COM0 PCCC LiCC Not Actual Size x5 SET TUD0016 TUD0012 DRAWER SLIDE 12“ HANDLE x1 set x2 SET TUD0021 TUD0019 ANTI TIPPING KIT SLIDING ROLLER ameriwoodhome.com...
- Page 8 Step 1 x1 SET TUD0021 TUD0001 Insert Cam Bolt and fully tighten it. Fix anti-tipping kit, do not fully tighten in this step * raw edges are shaded ameriwoodhome.com...
- Page 9 Step 2 TUD0001 Insert Cam Bolt and fully tighten it. * raw edges are shaded ameriwoodhome.com...
- Page 10 Step 3 Quick As s e mb l y TUD0004 TUD0002 Proper orientation of CAM LOCK Please ensure direction of Cam lock * raw edges are shaded ameriwoodhome.com...
- Page 11 Step 4 x2 SET TUD0010 TUD0012 TUD0008 TUD0019 Install sliding roller & handle. * raw edges are shaded ameriwoodhome.com...
- Page 12 Step 5 Fix legs to side rail by tighten the Cam Lock x2 SET * raw edges are shaded ameriwoodhome.com...
- Page 13 Step 6 Fix front rail & back rail by tighten the Cam Lock * raw edges are shaded ameriwoodhome.com...
- Page 14 Step 7 Fix side rail by tighten the Cam Lock * raw edges are shaded ameriwoodhome.com...
- Page 15 Step 8 TUD0009 Fix bottom panel by using screw. * raw edges are shaded ameriwoodhome.com...
- Page 16 Step 9 TUD0008 TUD0020 Secure bottom panel installation by using screw & L-Bracket. * raw edges are shaded ameriwoodhome.com...
- Page 17 Step 10 TUD0009 Attach center leg. * raw edges are shaded ameriwoodhome.com...
- Page 18 Step 11 Quick As s e mb l y Proper orientation of CAM LOCK TUD0018 TUD0002 TUD0004 Preparati on of left side panel * raw edges are shaded ameriwoodhome.com...
- Page 19 Step 12 x5 (CL) TUD0002 TUD0008 TUD0016 TUD0001 Preparati on of parti ti on panel LEFT FACE Screw Positi on * raw edges are shaded ameriwoodhome.com...
- Page 20 Step 13 Quick As s e mb l y Proper orientation of CAM LOCK TUD0018 TUD0004 Preparati on of parti ti on panel RIGHT FACE * raw edges are shaded ameriwoodhome.com...
- Page 21 Step 14 x5 (CR) TUD0001 TUD0002 TUD0004 TUD0016 TUD0008 Quick Preparati on of right side panel As s e mb l y Proper orientation of CAM LOCK Screw Positi on * raw edges are shaded ameriwoodhome.com...
- Page 22 Step 15 Attach front rail to the right side panel * raw edges are shaded ameriwoodhome.com...
- Page 23 Step 16 Attach to the partition panel * raw edges are shaded ameriwoodhome.com...
- Page 24 Step 17 TUD0009 Att ach left & right side panel, and parti ti on panel to bott om panel. Please fully ti ghten the screw. * raw edges are shaded ameriwoodhome.com...
- Page 25 Step 18 Attach top panel. * raw edges are shaded ameriwoodhome.com...
- Page 26 Step 19 IBPBRTANT! THE BACK PANEL IS A STRUCTURAL PART OF THIS UNIT AND MUST BE INSTALLED PROPERLY. TUD0006 Attached back panel as shown nailing straight into the raw edges. Ensure that the unit is square. Distance from corner to corner must be equal as shown. * raw edges are shaded ameriwoodhome.com...
- Page 27 Step 20 TUD0001 Preparation of drawer front. * raw edges are shaded ameriwoodhome.com...
- Page 28 Step 21 Quick As s e mb l y Proper orientation of CAM LOCK TUD0002 Preparation of left drawer side & right drawer side * raw edges are shaded ameriwoodhome.com...
- Page 29 Step 22 Attach drawer side to the drawer front x5 SET * raw edges are shaded ameriwoodhome.com...
- Page 30 Step 23 Slip in drawer bottom inside the groove x5 SET * raw edges are shaded ameriwoodhome.com...
- Page 31 Step 24 TUD0009 Attach drawer back and fully tighten it. x5 SET * raw edges are shaded ameriwoodhome.com...
- Page 32 Step 25 TUD0012 TUD0010 Attach the handle and tighten it from inside x5 SET * raw edges are shaded ameriwoodhome.com...
- Page 33 Step 26 x5 (DR & DL) TUD0016 TUD0008 Attach drawer slide DR & DL x5 SET Screw Position Screw Position * raw edges are shaded ameriwoodhome.com...
- Page 34 FoC BCCoCCy, BoCcCCCC, oC oCCCC wall materials: Consult your local hardware store for appropriate anchors to securely attach the safety bracket. IBPBRTANT: THIS UNIT MUST BE SECURE TO THE WALL TO HELP PREVENT TIPOVER. FOLLOW THESE INSTRUCTIONS TO INSTALL THE ANTI-TIPPING SAFETY BRACKET PROVIDED WITH THIS PRODUCT.
- Page 35 Step 27 Top roller STEP 1: Insert bottom roller into bottom rail STEP 2: Push down top roller before pushing the door inside. STEP 3: Properly align with top rail, then push the button from inside. STEP 4: Door installation success when top roller fully inserted in rail.
- Page 36 Step 28 Slide the door to the right. Insert the shelf. * raw edges are shaded ameriwoodhome.com...
- Page 37 Step 29 Slide the door to the left. Insert the drawers. * raw edges are shaded ameriwoodhome.com...
-
Page 38: Maximum Loads
Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 45 lbs. 20.4 kg 10 lbs. 4.5 kg Each drawers 25 lbs. 11.3 kg Each shelf Warning: Risk of serious injury to person - do not place a television on this furniture. - Page 39 We would like to extend a big “Thank You” to all Co CCCCCbCC CCiC ouC cuCCoCCCC foC CCkiCg CCC of our customers for taking the time to assemble SCCdC pCoducC, CCd Co giCC uC youC CCCuCbCC this Ameriwood Home product, and to give us your fCCdbCck. valuable feedback ameriwoodhome.com...
- Page 40 Español BubiCCCC DCCCCCCCC Este libro de instrucciones contiene información IMPORTANTE de seguridad. Por favor lea y manténgalo para referencia en el futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda. Llamenos al: 1-800-489-3351 (Gratis) Lunes - Viernes 9am - 5pm CST Visitar: www.ameriwoodhome.com PRECAUCION Este mueble puede volcarse y causar graves heridas y/o muerte.
- Page 41 Español Página 8 Inserte el perno de la leva y apriételo completamente. Fije el kit anti-vuelco, no apriete completamente en este paso Página 9 Inserte el perno de la leva y apriételo completamente. Página 10 Asegúrese de que la dirección del bloqueo de leva Página 11 Instale el rodillo deslizante y el mango Página 12...
- Page 42 Español Página 24 Conecte el panel lateral izquierdo y derecho y el panel de partición al panel inferior. Apriete completamente el tornillo Página 25 Fije el panel superior Página 26 . IBPBRTANTE! EL PANEL TRASERB ES UNA PARTE ESTRUBTURAL DE ESTA UNIDAD Y DEBE INSTALARSE CORRECTAMENTE.
- Page 43 Español Página 34 Para mampostería, hormigón u otros materiales de pared: Consulte con su ferretería local para anclajes apropiados para fijar firmemente el soporte de seguridad. IBPBRTANTE: ESTA UNIDAD DEBE SER ASEGURADA A LA PARED PARA AYUDAR. SIGA ESTAS INSTRUCCIONES PARA INSTALAR EL SOPORTE DE SEGURIDAD ANTI-TIPPING PROPORCIONADO CON ESTE PRODUCTO.
- Page 44 Visite el sitio web de su distribuidor local, califique su producto comprado y déjenos algunos comentarios! Nos gustaría extender un gran “Gracias” a todos nuestros clientes por tomarse el tiempo para montar este producto Ameriwood Home, y para darnos sus valiosos comentarios Gracias! * raw edges are shaded ameriwoodhome.com...
- Page 45 Français cCpoC CCCCC Ce livret d’instructions contient d’importantes informations de sécurité. S’il vous plaît lire et conserver pour référence ultérieure. Ne pas retourner ce produit! Contactez notre équipe de service à la clientèle amical pour aider. Appel: 1-800-489-3351 (gratuit) Lundi - Vendredi 9am - 5pm CST Visite: www.ameriwoodhome.com BISE EN CARDE Ce mobilier peut basculer et causer des blessures graves et / ou la mort.
- Page 46 Français pCgC 8 Insérez la came du boulon et serrer complètement. Réglez le kit anti-bout serrez pas complètement dans cette étape pCgC B Insérez la came du boulon et serrer complètement. pCgC B0 Assurez-vous que la direction de la serrure à came pCgC BB Installer un rouleau coulissant et une poignée pCgC B2...
- Page 47 Français PCgC 2B Connectez le panneau latéral gauche et à droite et le panneau de séparation au panneau inférieur. Serrez complètement la vis PCgC 2B Fixez le panneau supérieur. PCgC 2B IBPBRTANT! LE PANNEAU ARRIÈRE EST UNE PARTIE DE STRUBTURE ET BET APPAREIL DBIT ÊTRE INSTALLÉ CORRECTEMENT.
- Page 48 Français PCgC BB Maçonnerie, béton ou d’autres matériaux de paroi: Vérifiez auprès de votre magasin local de matériel pour les ancrages appropriés pour fixer fermement le sup- port de sécurité. IBPBRTANT: CET APPAREIL DOIT ÊTRE FIXÉ AU MUR POUR AIDER. CES INSTRUCTIONS POUR INSTALLER LE SUPPORT antibasculant DE SÉCURITÉ...
- Page 49 Visitez le site Web de votre distributeur local, classez votre produit acheté et laisser des commentaires! Nous aimerions étendre un grand “Merci” à tous nos clients pour prendre le temps de rassembler ce produit Ameriwood Home et de nous faire part de vos précieux commentaires Merci! * raw edges are shaded ameriwoodhome.com...
