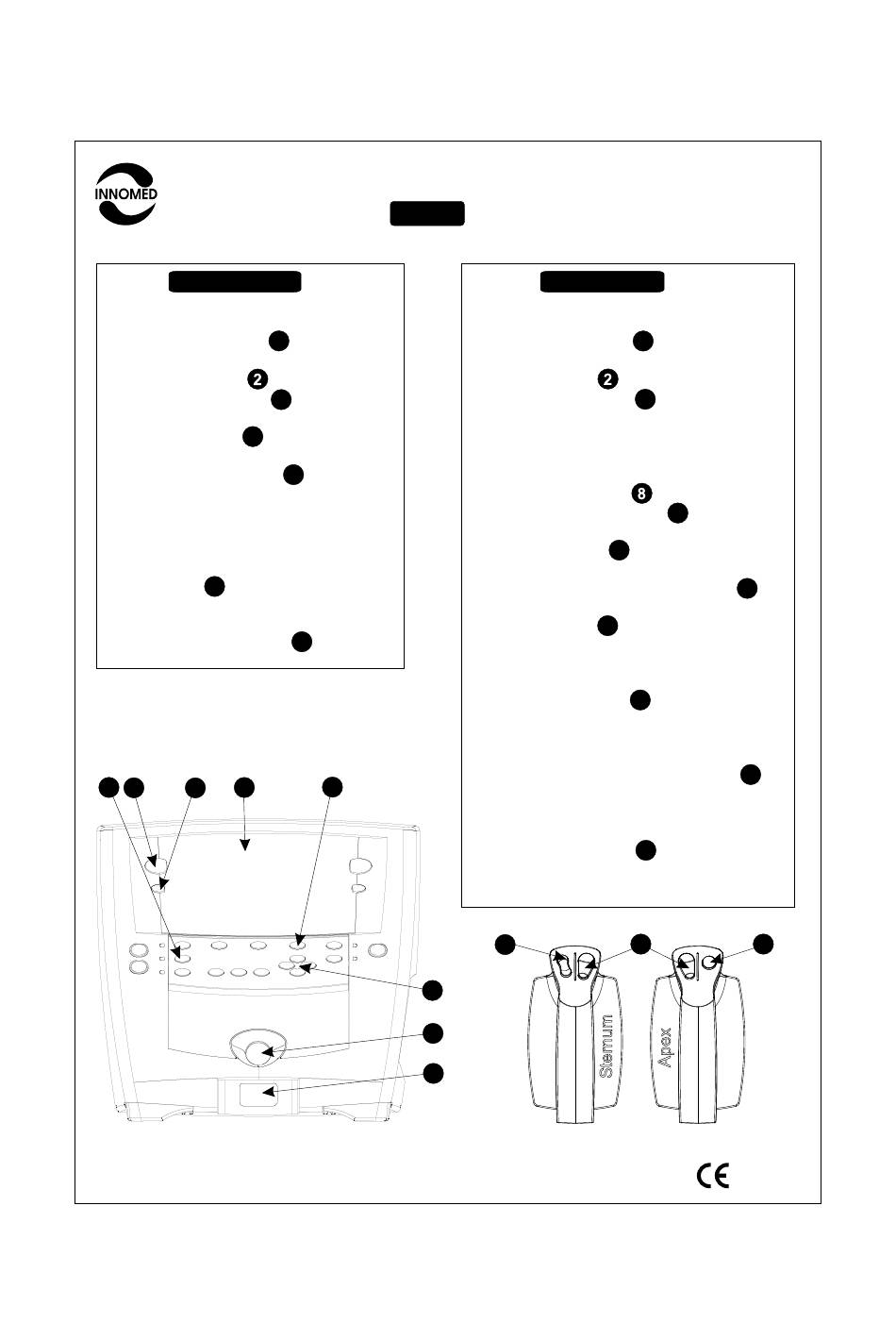

Innomed Medical Cardio-Aid 360-B Quick Manual

Cardio-Aid
Manual Asynchronous
Defibrillation with Paddles
• Switch on the device
•
Connect paddle connector at the front
of the defibrillator
•
Select Manual Mode
•
Check that there is no sync mode at the
4
top of the screen
•
Select energy level with the +/- buttons
on the Sternum paddle
•
Use gel on the paddles, place the
paddles on the patient and hold them
stable
•
Press charge button on Apex paddle
and wait until the charging is
6
completed. Do not move or remove
the paddles
•
Push the two Shock buttons on both
paddles simultaneously
3 1 11 4
Innomed Medical Inc.
Szabó J. u. 12, H-1146
Budapest, Hungary
360-B QUICK GUIDE
™
Using with Paddle
1 1
3
5
7
6
9
10
8
2
electrodes
Manual Synchronized
Cardioversion with Paddles
• Switch on the device
•
Connect paddle connector at the front of
the defibrillator
•
Select Manual Mode
•
Check the expiry date of the ECG
electrodes and attach them to the patient
•
Connect ECG cable at the front of the
defibrillator and connect the lead wires to
the ECG electrodes
•
Push Sync On soft button
•
Check that sync mode is displayed at the
4
top of the screen
•
Set up Latched or Non-Latched mode with
the Menu buttons in the Sync Menu
•
Select the appropriate ECG lead with good
11
quality signal. Observe the 'S' sync
markers on the screen above the ECG
curve
•
Select energy level with the +/- buttons on
5
the Sternum paddle
•
Use gel on the paddles, place the paddles
on the patient and hold them stable
•
Press charge button on Apex paddle and
wait until the charging is completed.
not move or remove the paddles!
•
Push and hold down the two Shock buttons
on both paddles simultaneously, until the
shock is delivered.
remove the paddles, nor release Shock
buttons until the shock is delivered!
5 7
1 1
3
9
10
6
Do
7
Do not move or
6
