Summary of Contents for Saito FA-100Ti

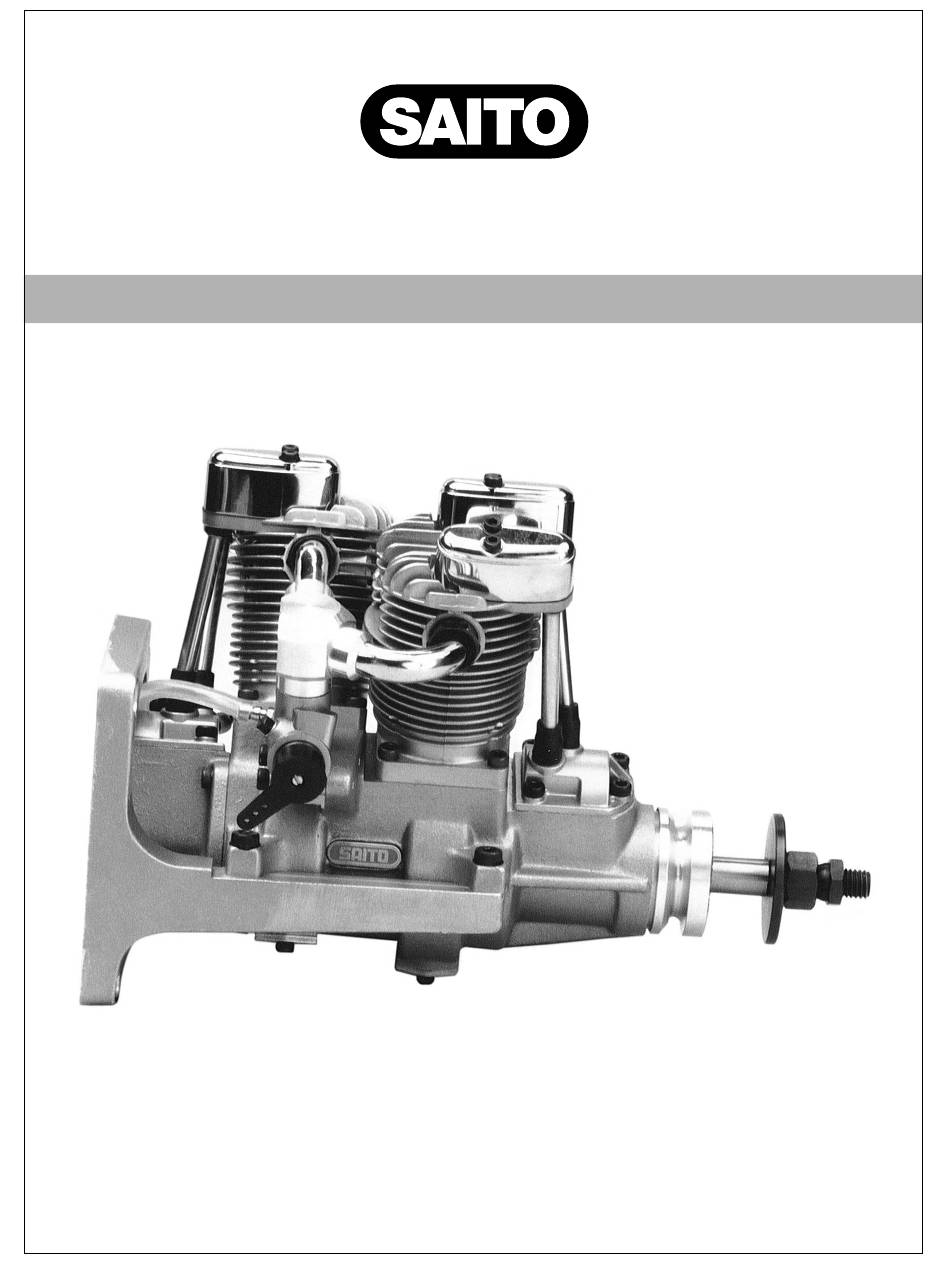

- Page 1 INLINE 4-STROKE ENGINES INSTRUCTION MANUAL FA-100Ti FA-200Ti...
- Page 2 Important Before you attempt to operate your [200Ti/100Ti] engine, please be sure to read through these instructions so that you may familiarize yourself with the various parts and other features of the engine. Failure to read and follow these instructions before you proceed to start your engine may result in engine damage and the...
-
Page 3: Safety Instructions
4. It is extremely important to balance the propeller prior to installation of the engine. Failure to do so may Always run your model engines in a well- cause damage to the Saito engine and/or the airframe. ● ventilated area. Similar to automotive engines,... - Page 4 Use the following procedure to install each muffler to the engine.(FA-200Ti is used as example) or the FA-200Ti, SAI182TD-111-1 and SAI182TD-111- 2 are the Part Numbers For the FA-100Ti, the flexible exhaust pipe is SAI100Ti- 111-1 and SAI100Ti.111-2(w/Pressure Fitting)
- Page 5 ® A Hangar 9 (HAN3011) Four-Cycle Super plug is fitted to the engine. Saito recommends use of 4-stroke plugs that are designed to operate in 4-stroke engines. Since the ignition of the fuel takes place at every fourth stroke of the piston instead of every second stroke (2- stroke engines) some 2-stroke plugs will not operate well in this engine.
-
Page 6: Starting The Engine
Note: It is not necessary to ignite all four glow connected to the pressure nipple on the muffler plugs in the dual plugged cylinder head Saito pipe or flexible muffler (optional). engines. It's only necessary to apply heat to one plug in each cylinder. -
Page 7: Hand Start
Saito considers the initial start-up and break-in process. 40 minutes of total run time sufficient for normal Break In of Engine break-in prior to the first flight. -
Page 8: Adjusting The Carburetor
Repeat the procedure of alternatively running 1. Set the throttle to open and start the engine, the engine fast then slow by varying the needle letting it warm up for a few minutes before valve position. Gradually increase the short making any adjustments. - Page 9 Replace the high-speed needle valve and follow The valve clearance has been correctly set at the Saito the instructions in the"Adjusting the Carburetor"section. factory. Usually you will not have to make adjustments 3.
-
Page 10: Troubleshooting
Incorrect glow plugs Change glow plugs Saito FA-200Ti engine. A chart that includes the part number and description of the various parts is provided. Incorrect or bad fuel Change fuel This is to assist you in easily identifying the respective Figure 3 parts of the FA-200Ti engine. - Page 11 Callout Description Part No. Callout Description Part No. Cam Gear(front) 182TD-34 83-1 Carburetor Body Assembly(left) 200Ti-83-1 Cam Gear(rear) 200Ti-35 High-Speed Needle Valve 200Ti-85 Cam Gear Shaft 170R3-36 High-Speed Needle Valve Extension 50-86 Steel Washer Set 120S-37 Throttle Barrel Assembly 91S-87 Tappet 50-38 Throttle Lever...
-
Page 12: Propeller Selection
Side and Top View with D - 8 6 4 - 4 . 2 ø Dimension Chart A - 7 3 Engine Specification Displacement: 32.90 cc Bore: 28.2x2 mm Stroke: 26.4x2 mm Weight: 1460 grams K(ISO): 8x1.25 mm Cylinder: AAC 16.5ccx2 Horsepower: Propeller: 16x8-18x10... - Page 13 FA-100Ti CHART Callout Description Part No. Callout Description Part No. Cylinder(left)(front) 100Ti01 Valve retainer 5048 Cylinder(right)(rear) 100Ti02 Rocker arm cover 5049A Piston 5606 Intake manifold(left)(front) 100Ti69 Piston pin 6507 Intake manifold(right)(rear) 100Ti70 Piston pin retainer 6508 Intake manifold nut 100T71...
- Page 14 Stroke Practical Range Weight Prop Cylinder Items (cc) (mm) (mm) (rpm) (in) (ISO) FA-100Ti 24.8 18.6 2,000-10,000 1,100 14 x 6-15 x 6 M8x 1.25 9cc x 2 OUTSIDE DIMENSIONS(mm) Items FA-100Ti Propeller Selection 14" x 6"-15" x 6": 8,000 9,500r.p.m.
-
Page 15: Consumer Warranty And Repair Policy
Champaign.IL 61822 If your engine needs repair, please do the following: Ship your engine in its original box, freight prepaid to: Horizin Service Center Attn: Saito Service 4105 Fieldstone Road Champaign, IL 61822 Phone:217-355-9511 Include complete name and address information inside the carton, as well as clearly writing it on the outer label/return address area. - Page 16 Consumer Warranty Registration Fill in and mail this form along with your dated sales receipt (send copy, keep original for your files) within 10 days of purchase to: Horizon Service Center Attn: Saito Warranty Dept. 4105 Fieldstone Road Champaign.IL 61822 Engine Type...
- Page 19 SAITO Distributred exclusively by Horizon Hobby, Inc., Champaign, IL 61822 www.horizonhobby.com Copyright2003 Stock #SAIMAN200Ti dated:MAY,2003...
