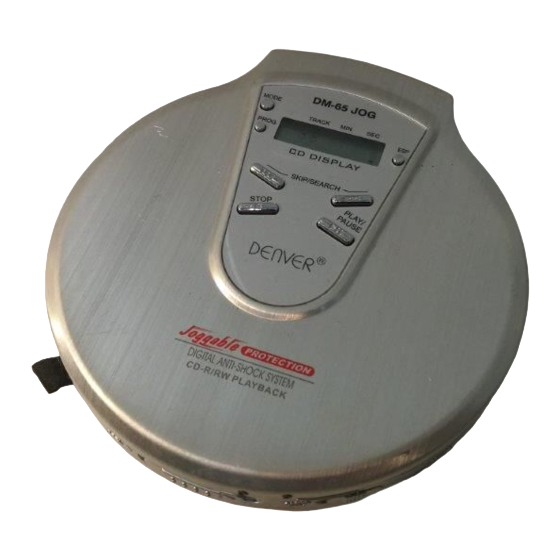

- Page 1 OPERATING INSTRUCTIONS DM-65 JOG/CARKIT 45 SECONDS ANTI-SHOCK PORTABLE CD PLAYER WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
- Page 2 Take care not to drop the unit or subject it to strong OPERATING shocks DM-65 JOG/CARKIT INSTRUCTIONS To keep dust fr m the pickup lens, keep the disc 45 SECONDS ANTI-SHOCK compartment lid closed after use. Never touch the...
-
Page 3: Using On Dry Cell Batteries
USING ON DRY CELL USING ON RECHARGEABLE BATTERIES BATTERIES Open the battery compartment and insert two LR6 Be sure to use size AA Ni-Cd 1.2V rechargeable (size AA) alkaline batteries with the marks batteries. which are commercially available correctly aligned. Be sure to read the instructions of the purchased rechargeable batteries before use Battery replacement... -
Page 4: Before Playback
BEFORE PLAYBACK HOLD switch Release the HOLD switch to OFF position before playback. When not using the unit, set the HOLD switch to the ON position, Accidentally pressed button will not function. If buttons are pressed when the HOLD HOLD switch is set to the ON position. - Page 5 PLAYBACK Connect the supplied headphone tot heP HONE ja ck. MODE KEY: NORMAL REPEAT ONE REPEAT ALL 1. Release HOLD to OFF position. 2. Place a disc. SHUFF INTRO 3. Press PLAY/PAUSE Playback starts from the first track. REPEAT ONE: " 1"light on display BASIC OPERATION and will repeat the track you selected...
-
Page 6: Connection To An External Unit
CONNECTION TO AN MAINTENANCE EXTERNAL UNIT To clean the lens If the lens become dirty, the player will skip or not Use a commercially available connection cord which play, If this occurs, clean the lens in the following. has a 3.5mm stereo plug at one and two phono plugs manner, To remove dust or dust particles, first use a at the other end. -
Page 7: Specifications
SPECIFICATIONS Tracking system 1-beam laser Laser pickup Semiconductor laser D/A conversion 8-times oversampling digital fillter +1- bit DAC Frequency response 20-20,000 Hz Outputs PHONES: stereo jack (3.5mm) [20mW+20mW, 32 ohms at 1 kHz] Line out stereo jack(3.5mm) 400mV/47Kohm Input DC 4.5V for external power from AC adaptor Power DC 3V fr m Alkaline batteries... - Page 8 SUBJECT TO MODIFICATION WITHOUT NOTICE!
