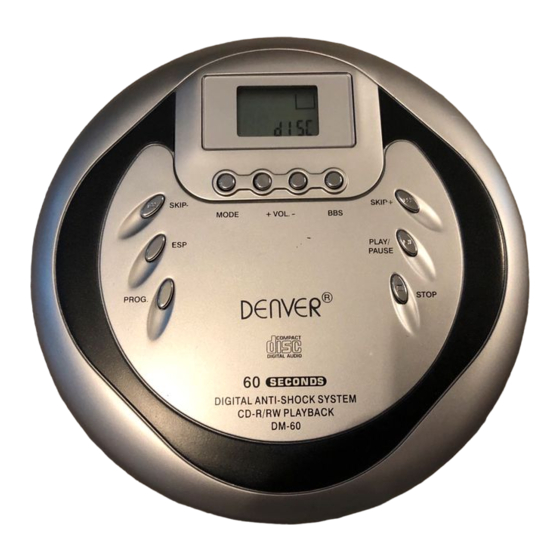

- Page 1 OPERATING INSTRUCTIONS DM-60 60 SECONDS ANTI-SHOCK PORTABLE CD PLAYER WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
- Page 2 Make sure that pins or other foreign objects do not get inside the player Take care not to drop the unit or subject it to DM-60 OPERATING strong shocks 60 SECONDS ANTI-SHOCK INSTRUCTIONS...
- Page 3 USING ON RECHARGE- USING ON DRY CELL ABLE BATTERIES BATTERIES Be sure to use size AA Ni-Cd or Ni-MH recharge- Open the battery compartment and insert two able batteries. which are commercially available LR6 (size AA) alkaline batteries with the + and Be sure to read the instructions of the marks correctly aligned.
-
Page 4: Before Playback
BEFORE PLAYBACK HOLD switch Release the HOLD switch to OFF position before playback. When not using the unit, set the HOLD switch to the ON position, Accidentally pressed button will not function, If buttons are pressed when HOLD the HOLD switch is set to the ON position. "HOLD"... -
Page 5: Basic Operation
MODE KEY: PLAYBACK NORMAL REPEAT ONE REPEAT ALL Connect the supplied headphone to the PHONE jack. SHUFF INTRO 1.Release HOLD to OFF position. 2.Place a disc. REPEAT ONE: " 1" light on display 3.Press PLAY/PAUSE and will repeat the track you Playback starts from the first track. -
Page 6: Maintenance
MAINTENANCE CONNECTION TO AN To clean the lens EXTERNAL UNIT If the lens become dirty, the player will skip or not play, If this occurs, clean the lens in the Use a commercially available connection cord following. manner, T o remove dust or dust which has a 3.5mm stereo plug at one and two particles, first use a camera lens blower/brush phono plugs at the other end. -
Page 7: Specifications
SPECIFICATIONS Tracking system 1-beam laser Laser pickup Semiconductor laser D/A conversion 8-times oversampling digital filter +1- bit DAC Frequency response 20-20,000Hz Outputs PHONES:stereo jack (3.5mm) [15mW+15mW,32 ohms at 1 KHZ] Input DC 4.5V for external power from AC adaptor. Power DC 3V from Alkaline batteries (2 x AA or LR6): Not included. - Page 8 Rechargeable Battery Power Insert one rechargeable battery into rechargeable battery sleeve as diagram shown so that negative polarity(-)position of battery is inserted into the rechargeable sleeve. Open the battery compartment and insert 2x LR6 (AA) size rechargeable Ni-Cd or Ni-Mh batteries (not supplied) place rechargeable battery with sleeve included as shown in diagram (only one battery need with the sleeve, the sleeve must be at negative polarity(-), otherwise the battery can not be recharged).
- Page 9 Please inquire at the community administration for the authorized disposal location. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S www.denver-electronics.com...
- Page 10 SUBJECT TO MODIFICATION WITHOUT NOTICE!
