Browning Fishing STALKER BSX1000 Instructions

SPINNING REEL
BSX1000, BSX2000, BSX3000, BSX4000
Congratulations on your purchase of a Browning ® Stalker™ spinning reel! This reel
is manufactured with the highest quality components and has been extensively tested
to ensure that your day on the water is more productive. Please take a moment to
familiarize yourself with the integrated performance-enhancing features of this reel
before use. This will help you to optimize the reel's settings and even further increase
your shing success. We wish you the best of luck in your future angling adventures!
Reel Specifications
Weight Max Line Capacity
Model Bearings (oz.) Drag(lbs.) mono/braid (lb./yds.) IPT Gear Ratio
BSX1000 7 (6+1) 8.7 5 4/165, 6/130, 8/100 22"
15/165, 20/130, 30/100
BSX2000 7 (6+1) 8.8 5 6/170 8/140 10/100 24"
20/170, 30/140, 40/100
BSX3000 7 (6+1) 10.3 11 8/235, 10/170,12/140 26"
30/235, 40/170, 50/140
BSX4000 7 (6+1) 10.4 11 10/215,12/180, 14/150 28"
40/215, 50/180, 65/105
• 7-(6+1)-Bearing System
• Durable Graphite Frame and Rotor
• Double-Anodized Aluminum Spool
• PowerLock™ Instant Anti-Reverse
• Machined-Aluminum Handle
Features and Operations Instructions
Front Drag
Your reel is equipped with a drag system to help you ght stronger, faster sh
without the risk of breaking your line. The drag can be adjusted by turning the knob on
the front side or spool end of the reel. To properly set the drag, you will need a spring
scale. Your drag should be set at 25% of the test rating of your line. Tie a loop in the
end of your main line. Run it though the guides of your rod and attach it to the hook on
the scale. Pull the scale until it registers 25% of the line rating. If you are using 6 lb.
test, then you should set your drag to start slipping at 1.5 lbs.
Durable Graphite Frame and Rotor
The frame and rotor were designed to be lightweight, durable, and corrosion
resistant.
Powerlock™ Instant Anti-Reverse
Your reel is equipped with our Powerlock instant anti-reverse system. This is a
special type of bearing that allows the handle to only turn forward. There is no play in
the handle, so you have complete control during the retrieve and no "loose" feeling,
which is important during stop-and-go retrieves.
Double-Anodized Aluminum Spool
The spool has been double-anodized to provide years of corrosion resistance.
Machined-Aluminum Handle
Your reel comes equipped with an exceptionally strong machined-aluminum handle
for peak durability. It has been anodized to prevent corrosion.
Browning Fishing Reels
®
Limited Warranty
Browning Fishing will repair or replace (at our discretion) any Browning Fishing
reel which proves to be defective in workmanship or materials within one year from
the original date of purchase. You must save your dated sales receipt for warranty
validation. This warranty gives you speci c legal rights, and you may have other
rights which vary from state to state or province to province.
For reels purchased through Bass Pro Shops ® catalogs or
Bass Pro Shops online:
5.1:1
• For reel replacement only: Return your reel postage prepaid with your dated
sales receipt to the Return Center address listed on your receipt.
5.1:1
• For reel repair only: Return your reel postage prepaid with a copy of your dated
sales receipt as proof of purchase and warranty validation to the Outdoor World
Rod & Reel Repair ® address below.
5.0:1
For reels purchased through Bass Pro Shops retail locations:
5.0:1
• For reel replacement only: Return your reel (postage prepaid if sending by
mail) along with your dated sales receipt to the store from which it was
purchased.
• For reel repair only: Return your reel postage prepaid with a copy of your dated
sales receipt as proof of purchase and warranty validation to the Outdoor World
Rod & Reel Repair address below.
Outdoor World Rod & Reel Repair
2300 E. Turner, Suite M
Springfield, MO 65803
This warranty does not cover lost parts, malfunctions, or damage due to abuse,
accidents, or normal wear. Failure to clean, lubricate, and provide reasonable and
necessary maintenance will void the warranty. Repairs needed to your reel due to
abnormal use or modi cation, or after warranty expiration, are available for a
reasonable charge from Outdoor World Rod & Reel Repair, providing the reel is
returned postage paid.
Except to the extent prohibited by applicable law, there are no warranties or
conditions, express or implied, other than those expressly set out herein. Browning
Fishing shall not, under any circumstances, be liable for an amount greater than the
actual purchase price of the product nor for any special, incidental, or
consequential damages suffered or incurred in connection with the product and
Browning Fishing does not assume, and does not authorize any person to assume
for it, any obligation or liability other than those expressly set out herein.
Reel Care And Lubrication
Your new reel is designed to provide years of dependable service. But like any
other precision machine, periodic cleaning and maintenance is required for
continued peak performance.
Reels made today require both a lightweight oil and grease. Oil and grease should
be used sparingly; too much can have a negative impact on reel performance.
There are lightweight oils and greases made speci cally for shing reels, that can
be found at basspro.com
As a rule of thumb, oils should be used to lubricate any moving part on the reel,
e.g. ball bearings, bushings, handle joints, bail springs, etc. Grease should be used
to lubricate the main drive gear and pinion gear.
We do not recommend using any multipurpose oils. Many of these oils have
properties that will attract dirt and dust to the internal parts. This may cause
excessive wear and reduce the life of the reel.
After each trip, the reel should be checked for dirt or sand. If it has been exposed
to saltwater, the spool should be removed and the entire reel rinsed in freshwater.
Dry with a soft cloth and lubricate the reel as described above.
For professional cleaning and maintenance,
send your reel postage prepaid to:
Outdoor World Rod & Reel Repair
2300 E. Turner, Suite M
Spring eld, MO 65803
Phone: (417) 873-5274 Fax: (417) 873-5280
Browning® trademarks licensed from Browning.

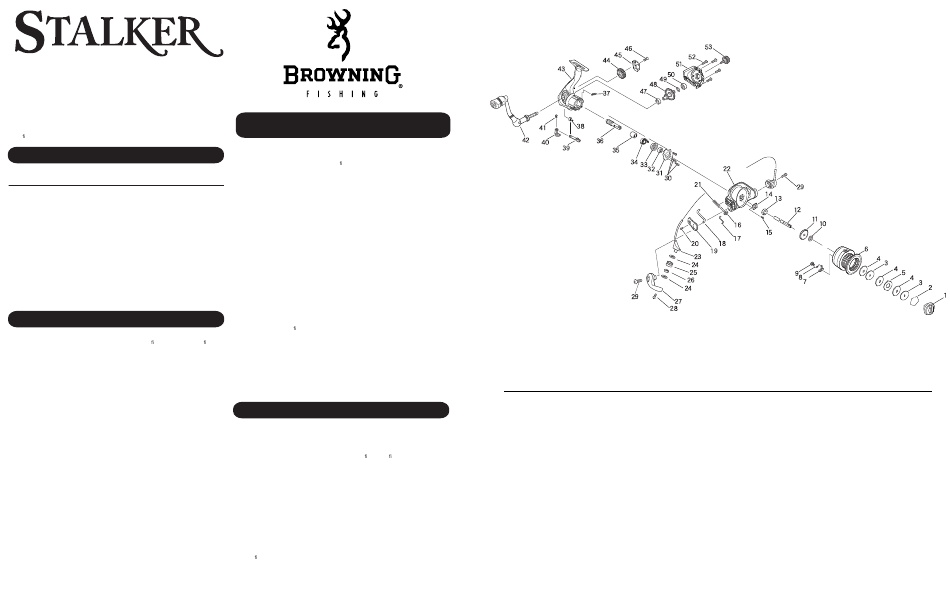

BROWNING STALKER SPINNING REEL: BSX1000, BSX2000, BSX3000, BSX4000
NO. PARTNAME
1 DRAG BUTTON ASSEMBLY
2 STOPPER SPRING
3 DRAG WASHER (X2)
4 DRAG WASHER (X3)
5 DRAG WASHER
6 SPOOL ASSEMBLY
7 CLICK CLAW
8 CLICK CLAW SPRING
9 CLICK CLAW SCREW
10 CLICK WASHER
11 CLICK
12 SHAFT
13 NUT
14 NUT WASHER
15 SCREW
16 SLIDER
17 LINK
18 KICK LEVER
19 COVER
BP143581
20 SCREW 39 ANTI-REVERSE CAM
21 DEAD POINT SPRING 40 ANTI-REVERSE LEVER
22 ROTOR ASSEMBLY 41 SCREW
23 BAIL ARM ASSEMBLY 42 HANDLE ASSEMBLY (X2 BALL BEARINGS)
24 WASHER (X2) 43 MAIN BODY ASSEMBLY
25 LINE ROLLER 44 BULL GEAR
26 BALL BEARING 45 OSCILLATOR
27 BAIL ARM LEVER 46 SCREW
28 SCREW 47 BALL BEARING
29 SCREW 48 MAIN GEAR
30 SCREW (X3) 49 WASHER
31 BEARING SUPPORT 50 BALL BEARING
32 BALL BEARING 51 SIDEPLATE ASSEMBLY
33 BALL BEARING COLLAR 52 SCREW (X4)
34 ONE-WAY CLUTCH ASSEMBLY 53 HANDLE CAP
35 INNER RING
36 PINION GEAR
37 ONE-WAY CLUTCH SPRING
38 ANTI-REVERSE SPRING
