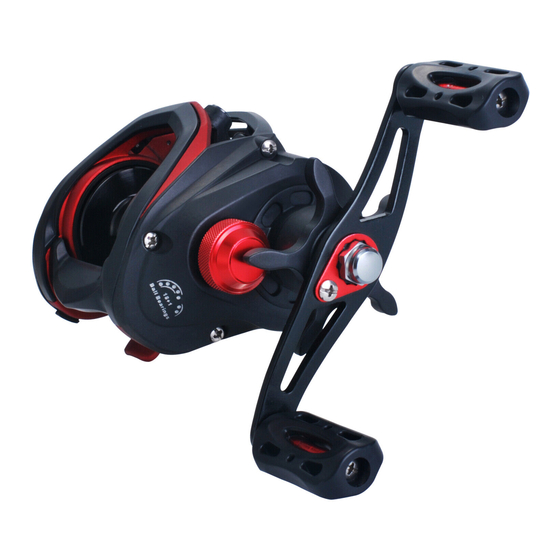

MAXUS
BAITCASTING REEL
MUS10SHHA/MUS10SHA/MUS10HA
Congratulations on your purchase of a Browning ® Maxus reel! This reel is
manufactured with the highest quality components and has been extensively tested
to ensure that your day on the water is more productive. Please take a moment to
familiarize yourself with the integrated performance-enhancing features of this reel
before use. This will help you to optimize the reel's settings and even further increase
your shing success. We wish you the best of luck in your future angling adventures!
Reel Specifications
Weight Max Line Capacity
Model Bearings (oz.) Drag(lbs.) mono/braid (lb./yds.) IPT Gear Ratio
MUS10SHHA 8 (7+1) 6.1 12 10/140, 12/130, 14/120 33"
30/150, 40/140, 50/115
MUS10SHA 8 (7+1) 6.1 12 10/140, 12/130, 14/120 30"
30/150, 40/140, 50/115
MUS10HA 8 (7+1) 6.1 12 10/140, 12/130, 14/120 27"
30/150, 40/140, 50/115
• 8 (7+1) Bearing System
• 1-pc. Aluminum Frame
• Dual Braking System
™
• Powerlock Instant Anti-Reverse
™
• Double-Anodized Spool

Features and Operations Instructions

Dual Braking System
™
Your reel is equipped with an easy-to-use Dual Braking System. This system
should be used to help eliminate backlash. It combines a 4-pin internal centrifugal
braking system with an externally adjustable 10-position magnetic system. Simply
rotate the dial on the palming sideplate to increase or decrease the magnetic force
that is exerted on the spool assembly. The 4-pin centrifugal system is engaged
automatically and requires no manual adjustment.

Cast Control System

The cast control knob is located on the handle side under the star drag. Its purpose
is to apply continuous friction to the end of the spool shaft, assisting the centrifugal
brake system in maintaining the correct spool speed. This helps to prevent
backlashes.
To set the cast control, tie on your lure and reel it to the tip of the rod. Tighten the
knob until it feels snug. Push the thumb bar. Your lure should not move. Hold the rod at
a 2 o'clock position and slowly turn the knob counter-clockwise until the lure starts to
fall. Let the lure hit the ground and watch the spool. The spool should not spin more
than one revolution after the lure hits the ground. If it spins more than one revolution,
tighten the cast control knob and repeat the procedure. If the spool does not spin after
the lure hits the ground, the cast control is set too tight. Loosen the knob and repeat
the procedure.

Star Drag

Your reel has a powerful star drag for pinpoint settings. The drag washers provide
a smooth even ow of line when a sh surges to prevent the line from breaking. Even
when wet, these washers won't slip or grab. The star drag is the star-shaped wheel
located behind the reel handle. To adjust, simply turn forward to increase drag or turn
backward to decrease the amount of drag.

Palming Sidecover Removal (Downward Twist)

To remove the palming sidecover, loosen the thumbscrew located at the top of the
gear side until it is no longer threaded. Then pull outward on the screw cap and twist
the palming sidecover downward. It can then be removed by pulling straight outward.
To put the sidecover back in its original position, simply insert it back into the frame
and twist upward. Then retighten the thumbscrew.
Browning Fishing Reels:
®

Limited Warranty

Browning Fishing will repair or replace (at our discretion) any Browning Fishing
reel which proves to be defective in workmanship or materials within one year from
the original date of purchase. You must save your dated sales receipt for warranty
validation. This warranty gives you speci c legal rights, and you may have other
8.1:1
rights which vary from state to state or province to province.
For reels purchased through Bass Pro Shops ® catalogs or
7.3:1
Bass Pro Shops online:
• For reel replacement only: Return your reel postage prepaid with your dated
sales receipt to the Return Center address listed on your receipt.
6.4:1
• For reel repair only: Return your reel postage prepaid with a copy of your dated
sales receipt as proof of purchase and warranty validation to the Outdoor World
Rod & Reel Repair ® address below.
For reels purchased through Bass Pro Shops retail locations:
• For reel replacement only: Return your reel (postage prepaid if sending by
mail) along with your dated sales receipt to the store from which it was
purchased.
• For reel repair only: Return your reel postage prepaid with a copy of your dated
sales receipt as proof of purchase and warranty validation to the Outdoor World
Rod & Reel Repair address below.
Outdoor World Rod & Reel Repair
2300 E. Turner, Suite M
Springfield, MO 65803
This warranty does not cover lost parts, malfunctions, or damage due to abuse,
accidents, or normal wear. Failure to clean, lubricate, and provide reasonable and
necessary maintenance will void the warranty. Repairs needed to your reel due to
abnormal use or modi cation, or after warranty expiration, are available for a
reasonable charge from Outdoor World Rod & Reel Repair, providing the reel is
returned postage paid.
Except to the extent prohibited by applicable law, there are no warranties or
conditions, express or implied, other than those expressly set out herein. Browning
Fishing shall not, under any circumstances, be liable for an amount greater than
the actual purchase price of the product nor for any special, incidental, or
consequential damages suffered or incurred in connection with the product and
Browning Fishing does not assume, and does not authorize any person to assume
for it, any obligation or liability other than those expressly set out herein.

Reel Care And Lubrication

Your new reel is designed to provide years of dependable service. But like any
other precision machine, periodic cleaning and maintenance is required for
continued peak performance.
Reels made today require both a lightweight oil and grease. Oil and grease should
be used sparingly; too much can have a negative impact on reel performance.
There are lightweight oils and greases made speci cally for shing reels that can
be found at basspro.com
As a rule of thumb, oils should be used to lubricate any moving part on the reel,
e.g. ball bearings, bushings, handle joints, bail springs, etc. Grease should be used
to lubricate the main drive gear and pinion gear.
We do not recommend using any multipurpose oils. Many of these oils have
properties that will attract dirt and dust to the internal parts. This may cause
excessive wear and reduce the life of the reel.
After each trip, the reel should be checked for dirt or sand. If it has been exposed
to saltwater, the spool should be removed and the entire reel rinsed in freshwater.
Dry with a soft cloth and lubricate the reel as described above.
MAXUS
BAITCASTING REEL
MUS10SHHA/MUS10SHA/MUS10HA
X2
X3
X2
X2
BP160048-R1
X2
X2
X2
