Summary of Contents for Gear Head KB5000WDR

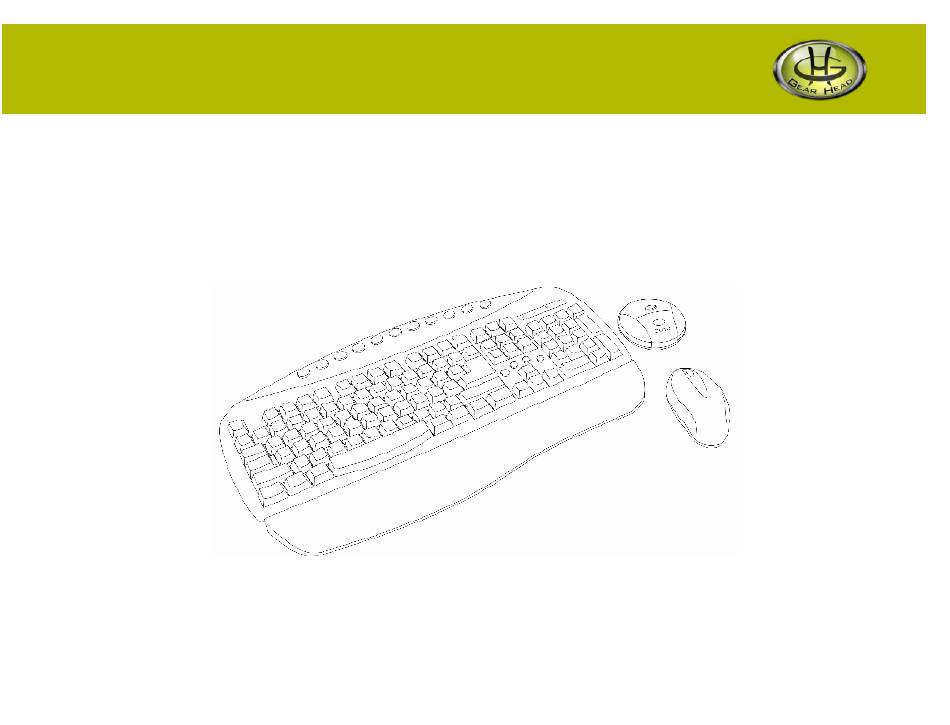

- Page 1 Wireless Desktop & Optical Mouse Model: KB5000WDR User’s Manual 120944-109128 Rev. 061017...
-
Page 2: User's Record
User’s Record: To provide quality customer service and technical support, it is suggested that you keep the following information as well as your store receipt and this user’s manual. Date of Purchase: __________________________________ Model Number: __________________________________ Serial Number: __________________________________ Product Rev Number (located below the UPC on the package): __________________________________... -
Page 3: Package Contents
Package Contents: Your new Wireless Desktop will ship with the following items. § Wireless Desktop & Optical Mouse § Wired Receiver with Dual PS/2 Connectors § Detachable Palmrest § 6 AAA Ni-MH Rechargeable Batteries § User’s Manual § Warranty Information System Requirements: Please be sure that you meet all of the system requirements below to avoid difficulties during installation. -
Page 4: Installation
Installation: NOTE: The pictures shown in the User’s Manual are for demonstration purposes only. Your computer or product may look slightly different. 1. Turn off your computer. 2. Plug your Receiver into the appropriate PS/2 Ports on your computer. 3. Turn on your computer. 4. - Page 5 Battery Installation: To install batteries into your Mouse, please follow the instructions below: a. Remove the Battery Compartment Cover from the bottom of your Mouse. b. Install two of the enclosed AAA Ni-MH Rechargeable Batteries into the Battery Compartment following the battery orientation guide printed inside the compartment.
- Page 6 To install batteries into your Keyboard, please follow the instructions below: 1. Remove the Battery Compartment Cover from the bottom of your Keyboard. 2. Install two of the enclosed AAA Ni-MH Rechargeable Batteries into the Battery Compartment following the battery orientation guide printed inside the compartment.
- Page 7 To establish a dedicated connection between your Wired Receiver, Keyboard, Mouse, and computer please follow the instructions below: Note: An automatic connection may fail if there are more than one KB5000WDR Wireless Desktops operating within a close proximity. The following instructions are for a dedicated connection:...
- Page 8 2. Press the Connect Button on your Wireless Receiver, and then press the Connect Button on the bottom of your Mouse. 3. Your Keyboard and Mouse are now ready to be used.
- Page 9 Wired Receiver LED Indicators: There are four LED Indicators on your Wired Receiver, please see the chart below for a description of each (starting from left to right): LED Indicator Status Description Signal LED (Green/Red) Green Solid If the green LED is solid, your computer is powered on and your Wired Receiver is connected.
- Page 10 Recharging Your Ni-MH Batteries: To recharge your Ni-MH Batteries using your Wired Receiver, please follow the instructions below: 1. Make sure your computer is turned on and your Wired Receiver is connected to your computer. 2. Press down and then slide off the Battery Compartment Cover from your Wired Receiver. 3.
-
Page 11: Special Function Keys
Special Function Keys: There are 11 pre-programmed special function keys located at the top of your Keyboard, please see the chart below for a description of each key: Refresh Outlook Press this button to refresh the current page. Press this button to open Microsoft ®... - Page 12 There are 4 pre-programmed special function keys located above the arrow keys on your Keyboard, please see the chart below for a description of each key: Backward When your media player program is open, press this button to go back to the previous track. Volume Down Press this button to decrease the volume of your speakers.
-
Page 14: Fcc Information
FCC Information: This equipment has been tested and found to comply with limits for Class B digital device pursuant to Part 15 of Federal Communications Commission (FCC) rules. FCC Compliance Statement These limits are designed to provide reasonable protection against frequency interference in residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed or used in accordance with the instructions, may cause harmful interference to radio communication. -
Page 15: Warranty Information
Return Merchandise for Service Any claim under this warranty must be made in writing to Gear Head, LLC, at the address provide by our technician, within 30 days after the owner discovers the circumstances giving rise to any such claim, and must include a copy of this warranty document, a receipt or copy of your invoice marked with the date of purchase, and the original packaging.
