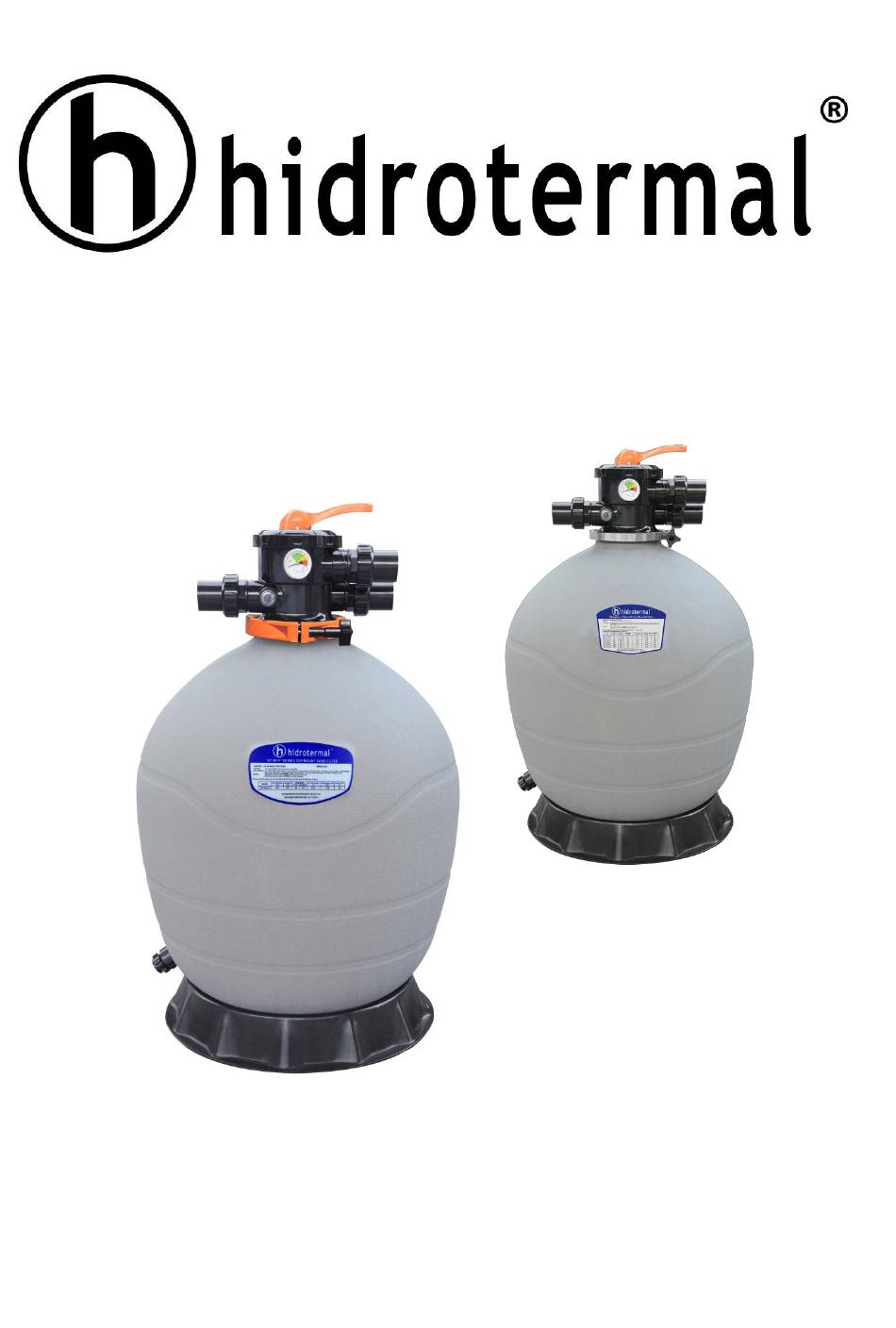

- Page 1 HT-BFV PE Sand Filter INSTALLATION AND MAINTENANCE MANUAL...
- Page 2 Once the filter is back-washed of dirt, set control valve to RINSE position and run pump for about 1/2 to 1 minute, and then to resume normal filtering. Stop the pump before changing valve position! Please read and follow this MANUAL before installing and using the filter! HT-BFV17 HT-BFV20 HT-BFV24 HT-BFV26 Ф...
- Page 3 3 Replacement parts of filter Description Description Handle Body-diffuser assy Screw-handle Bulkhead assy Washer-B Plug Function point-out panel Pressure gauge Lid assy Sight glass Washer-plastic Sight glass O-ring Washer-S Rotor Spring Orer drain,diffuser Rotor O-ring,filter Gasket Plastic clamp O-ring lid Screw-clip...
- Page 4 Description Description Multiport valve1.5'' Center pipe Plastic clamp Lateral assembly Or Clip-Stainless Steel Lateral Lock nut Support pipe Gasket of flange Drain Tank 17" Filter support stand Tank 20" Tank 24" Tank 26"...
- Page 5 4 Installation Only simple tools (screwdriver and wrenches), plus pipe sealant for plastic adapters, are required to install and service the filter. 1.The filter should be placed on a reasonably level surface and provide adequate drainage. Position the filter so that the piping connections, control valve are convenient and accessible for operation and service ,The filter should be placed as close to the pool as possible to reduce line loss from pipe friction.
- Page 6 6 Technical data 1. Installation instruction The installation of the valve is carried out by screwing or sliping in, of the available connections according to the installation scheme. It is recommended to use adapter unions.Maintenance works and replacement are also easier by using adapter unions. 2.
