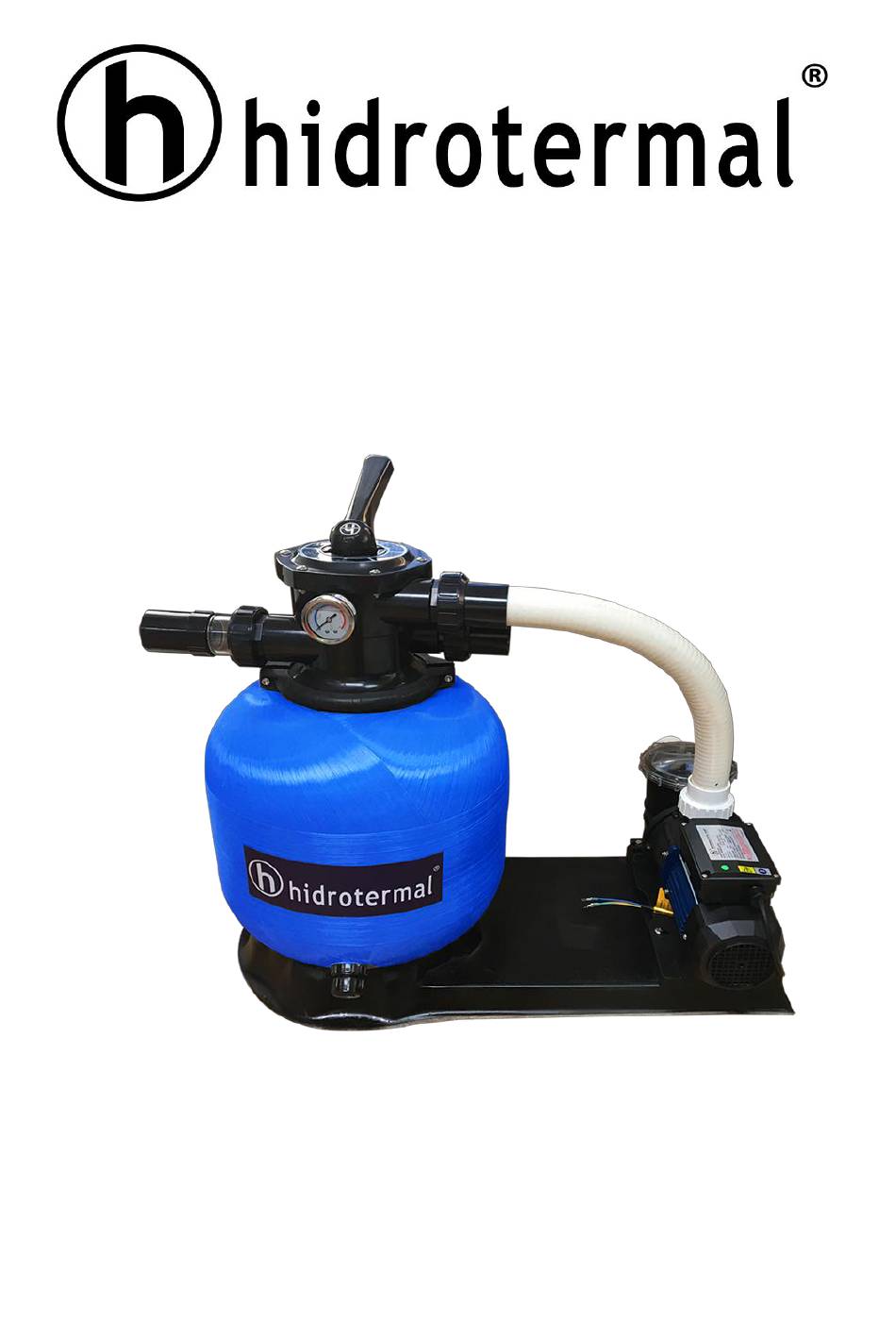

- Page 1 Filtration Combo Series VC Series USER MANUAL...
- Page 2 1. Fiberglass Filter Parameters 0.5-0.8mm Model Filter Model Pump Model Valve Connectio Flow Rate Sand Weight HT-VC400-6W HT-V400 Hidro-BPS050 50mm 35Kg HT-VC450-6W HT-V450 Hidro-BPS050 50mm 45Kg HT-VC525-6W HT-V525 Hidro-BPS075 50mm 85Kg HT-VC625-6W HT-V625 Hidro-BPS100 50mm 150Kg Figure 1 2. Installation Install filtration system including pump,filer tank and multiport valve.
- Page 3 3. Filter's Start-Up 1.Make sure the correct amount of filter sand is in tank and that all connections have been correctly made and are secured. 2.Push the down control valve handle and rotate to BACKWASH position. (To prevent damage to the control valve seal, always push down the handle before turning.) 3.Start the pump according to the pump manual.Never tun pump dry ！...
- Page 4 2) Pump Replacement Parts Figure 3 Item Product Description Item Product Description Tie-in Nut O-Ring Tie-in Difusser O-Ring Activities Rings Drainge Plug Impeller O-Ring Mechanical seal Pump casing Pump cover Filter O-Ring Hexagon bolt Transparent cover O-Ring Gland cover of Transparent cover Retaining block Open Cover Wrench Motor...
- Page 5 3) Multiport Valve Replacement Parts Item Product Description Handle (Big) Pin for Handle Washer for Handle M6*30 Screw with Nut for Standard Lid 1.5" Top Mount Valve Standard Lid (Black) O-ring for 1.5" Valve Lid Washer for Spring Spring for 1.5" Top Mount Valve O-ring for 1.5"...
