Filtration Combo Series
PC Series
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Filtration Combo PC Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Hidrotermal Filtration Combo PC Series

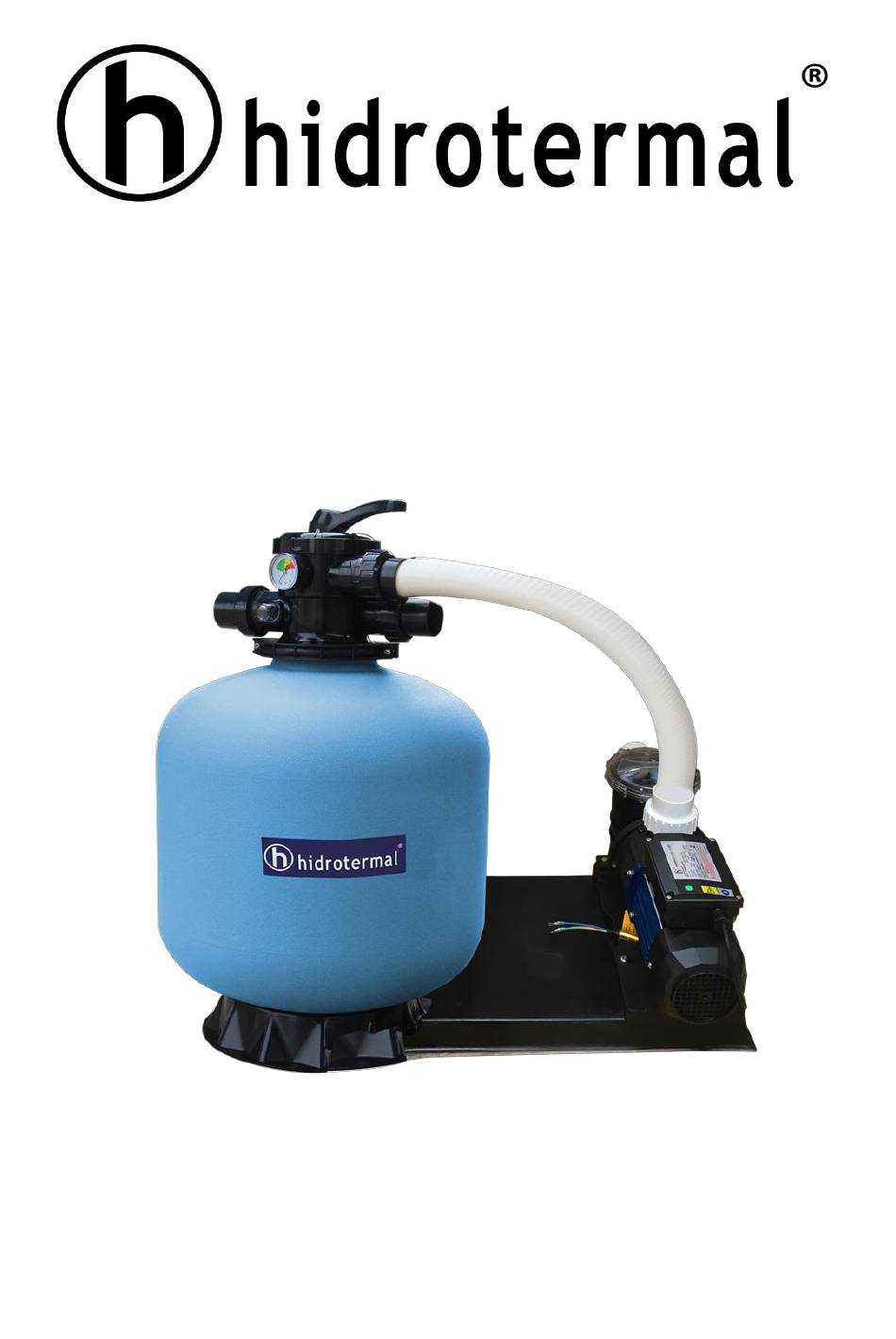

  • Page 1 Filtration Combo Series PC Series USER MANUAL...
  • Page 2 1. Filter Parameters 0.5-0.8mm Flow Design Model Filter Model Pump Model Valve Connection Sand Weight Area Flow HT-PC350-6w HT-PG350 Hidro-BPS050 50mm 0.10m 4.5m HT-PC450-6w HT-PG350 Hidro-BPS050 50mm 0.13m 6.5m HT-PC350-6w HT-PG350 Hidro-BPS050 50mm 0.16m HT-PC500-6w HT-PG350 Hidro-BPS075 50mm 0.23m 11.5m HT-PC650-6w HT-PG350 Hidro-BPS100 50mm...
  • Page 3 3. Installation Only simple tools (screwdriver and wrenches), plus pipe sealant for plastic adapters, are required to install and service the filter. 1) The filter must be placed on level, very firm,ground. Position the filter so that the piping connections, control valve and winter drain are convenient and accessible for operation, service and winterizing.
  • Page 4 4.Filter's Start-Up 1.Make sure the correct amount of filter sand is in tank and that all connections have been correctly made and are secured. 2.Push the down control valve handle and rotate to BACKWASH position.(To prevent any damage to control valve seal, always push down the handle before turning.) 3.Start the pump according to the pump manual (Make sure all suction and return lines are opened), allowing the filter tank to fill in with water.)
  • Page 5 2.IMPORTANCE OF BACKWMHING The importance of backwashing cannot be overstated. Dense filter media can become "packed" without proper and frequent enough backwashing. Debris will remain trapped and create channeling within the filter bed. This will result in the filter bed exhausting early. Moreover, if debris is not flushed from the media grains.the filter bed will become dirtier and dirtier as time goes on until the filter operation fails.
  • Page 6 7. Filter Structure 1) Filter Replacement Parts Key No. Product Description 1.5" Top Mount Valve Clip-L Clip-R Screw-clip Nut-clip O-ring 14" Tank 16" Tank 18" Tank 21" Tank 25" Tank PVC pipe Lateral Assembly Lateral Support pipe Drain Filter support stand House Figure 2 Pump...
  • Page 7 8. TECHNICAL APPENDIX 1).INSTALLATION INSTRUCTIONS The installation of the valve is carried out by screwingor sliping in, of the available connections according to the installation scheme. It is recommended to use adapter unions. Maintenance works and replacement are also easier by using adapter unions. 2).FUNCTION AND INSTALLATION SCHEME I.
