- Page 1 1 DATECS Infinea Tab M (CTLS, ICCR and MSR) User Manual...
- Page 2 Please note that the use of this accessory with an iPhone may affect wireless performance THE INFORMATION IN THIS DOCUMENT CANNOT BE REPRODUCED IN ANY MECHANICAL, ELECTRICAL OR ELECTRONIC WAY AND UNDER ANY CIRCUMSTANCES WITHOUT THE WRITTEN CONSENT FROM DATECS LTD. Address: 4 Datecs Street, Sofia 1592, Bulgaria...
- Page 3 1 DATECS INFINEA TAB M USER MANUAL REVISION HISTORY Version Data Change description 1.0.0 28.09.2022 First Release 1.1.0 22.11.2022 Updated section “Regulatory” 1.2.0 08.12.2022 Updated section “Regulatory” UM 07.01.44/v1.1.0...
- Page 4 1 DATECS INFINEA TAB M USER MANUAL REGULATORY FCC Statement FCC ID: YRW-ITC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 5: Table Of Contents
INFINEA TAB M USER MANUAL CONTENTS TECHNICAL SPECIFICATIONS ..............................6 GENERAL VIEW ..................................8 GETTING STARTED ................................. 10 ATTACHING APPLE DEVICE TO INFINEA TAB M ........................12 OPERATION MODES ................................13 ................................14 CANNING BARCODES ..............................15 AGNETIC CARDS READING .............................. -
Page 6: Technical Specifications
1 DATECS INFINEA TAB M USER MANUAL TECHNICAL SPECIFICATIONS Processor ARM Cortex® M4 Security Microcontroller 32KB I&D-Cache Memory 1MB Internal RAM 8КB OTP Application Memory 8MB Serial Flash • 1 button for device turning ON/OFF Keypad • 1 button for scanning barcodes •... - Page 7 1 DATECS INFINEA TAB M USER MANUAL Use only original equipped DATECS cable USB-A to USB-C (Z05C000000-05) for charging Apple device. The minimum requirements of USB adapter is 5V/2.1A. Waste Electrical & Electronic Equipment The symbol means that according to local laws and regulations your product shall be disposed of separately from household waste at the end of its working life.
-
Page 8: General View

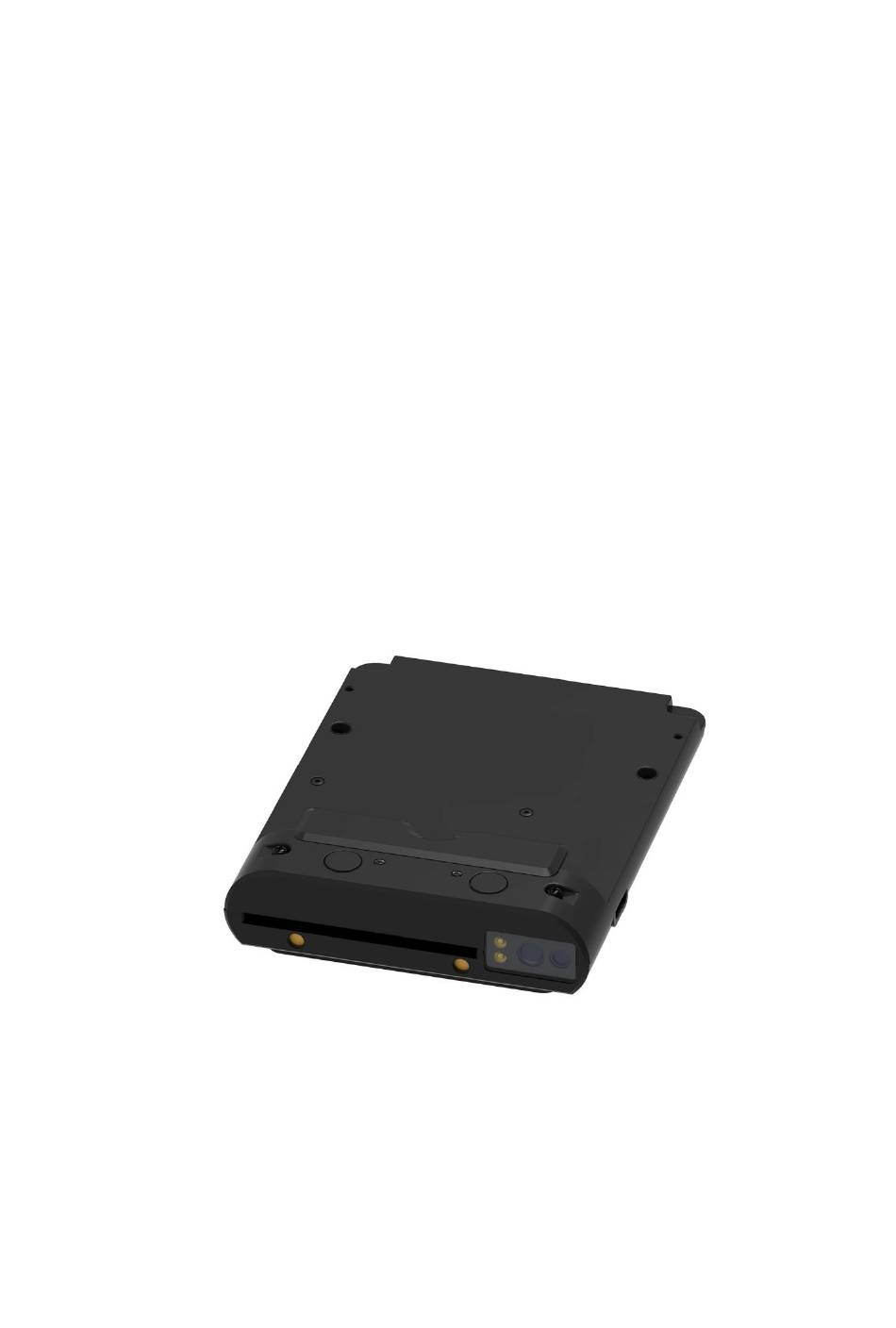

1 DATECS INFINEA TAB M USER MANUAL GENERAL VIEW UM 07.01.44/v1.1.0... - Page 9 1 DATECS INFINEA TAB M USER MANUAL 1. On/Off Button 2. Button for starting scanning barcodes 3. Opening for inserting smart card 4. Contactless reader 5. LEDs indication for Contactless transaction 6. Magnetic stripe reader 7. Barcode engine 8. Lightning connector 9.
-
Page 10: Getting Started
USER MANUAL GETTING STARTED Infinea Tab M has rechargeable Li-ion battery. Can be charge from USB port or Charging pads. Before first use, battery must be fully charged. If the device is fully discharged, charging time to fully charged would be approx. - Page 11 Green indication Infinea Tab M is charging from outside power supply (blinking) (from USB connector or Charging pads) Infinea Tab M mini is fully charged, can be disconnect the Green indication outside power supply No indication Not charging(no outside power) or Device is turned off...
-
Page 12: Attaching Apple Device To Infinea Tab M
USER MANUAL ATTACHING APPLE DEVICE TO INFINEA TAB M Infinea Tab M and Apple device must be turn to top side, showed on picture below. After that Apple device must be sledded to Infinea Tab M lightning connector. UM 07.01.44/v1.1.0... -
Page 13: Operation Modes
For turn On Infinea Tab M press On button and unlock Apple device screen. When the Infinea Tab M is active blue LED on front side will blink. If the blue LED is not blinking Infinea Tab M is turned off. -
Page 14: Scanning Barcodes
USER MANUAL Scanning barcodes Infinea Tab M can scan 1D and 2D barcodes. To scan barcode first, activate the scanner (by pressing and holding the scan button). Then position the scanning engine to the center of the barcode by aiming and the illumination box is over the outer edges of the barcode, as shown on the picture below. -
Page 15: Magnetic Cards Reading
USER MANUAL Magnetic cards reading The Infinea Tab M has a built-in magnetic card reader. The card reader incorporates a (3) track magnetic read head, requiring a single swipe to read field data from all three tracks. The magnetic reading head faces up, towards the top of the bottom cover of the cradle. When swiping the card into the reader, the magnetic stripe must be facing down, as shown in the figure below. -
Page 16: Contactless Cards Reading
1 DATECS INFINEA TAB M USER MANUAL Contactless cards reading The Infinea Tab M has a contactless card reader. Contactless card reader is located on the bottom side. Contactless card must be placed there (showed on the picture below). UM 07.01.44/v1.1.0... -
Page 17: Smart Cards Reading
1 DATECS INFINEA TAB M USER MANUAL Smart cards reading The Infinea Tab M has a smart card reader. Smart card insertion direction is showed on the picture below. UM 07.01.44/v1.1.0... -
Page 18: Getting Device Information With Unicom Tool
USER MANUAL GETTING DEVICE INFORMATION WITH UNICOM TOOL For start operating with Infinea Tab M need to be turned on. Then attached to PC via USB cable. Check in Windows device manager on which COM port it connected Infinea Tab M: Figure 12 Run the “Unicom”... - Page 19 1 DATECS INFINEA TAB M USER MANUAL • Because of the interpretation of the Unicom tool, FW and AP version showed on this way: 03.00.xx.xx instead 3.0.xx.xx UM 07.01.44/v1.1.0...
-
Page 20: Care, Maintenance And Warranty
Using your device in these environments increases the risk of explosion or fire. • Do not open the Infinea Tab M. Only qualified personnel can open the device and make repair. If the Infinea Tab M is not working, please contact with your dealer.
