Summary of Contents for Datecs Linea TAB4

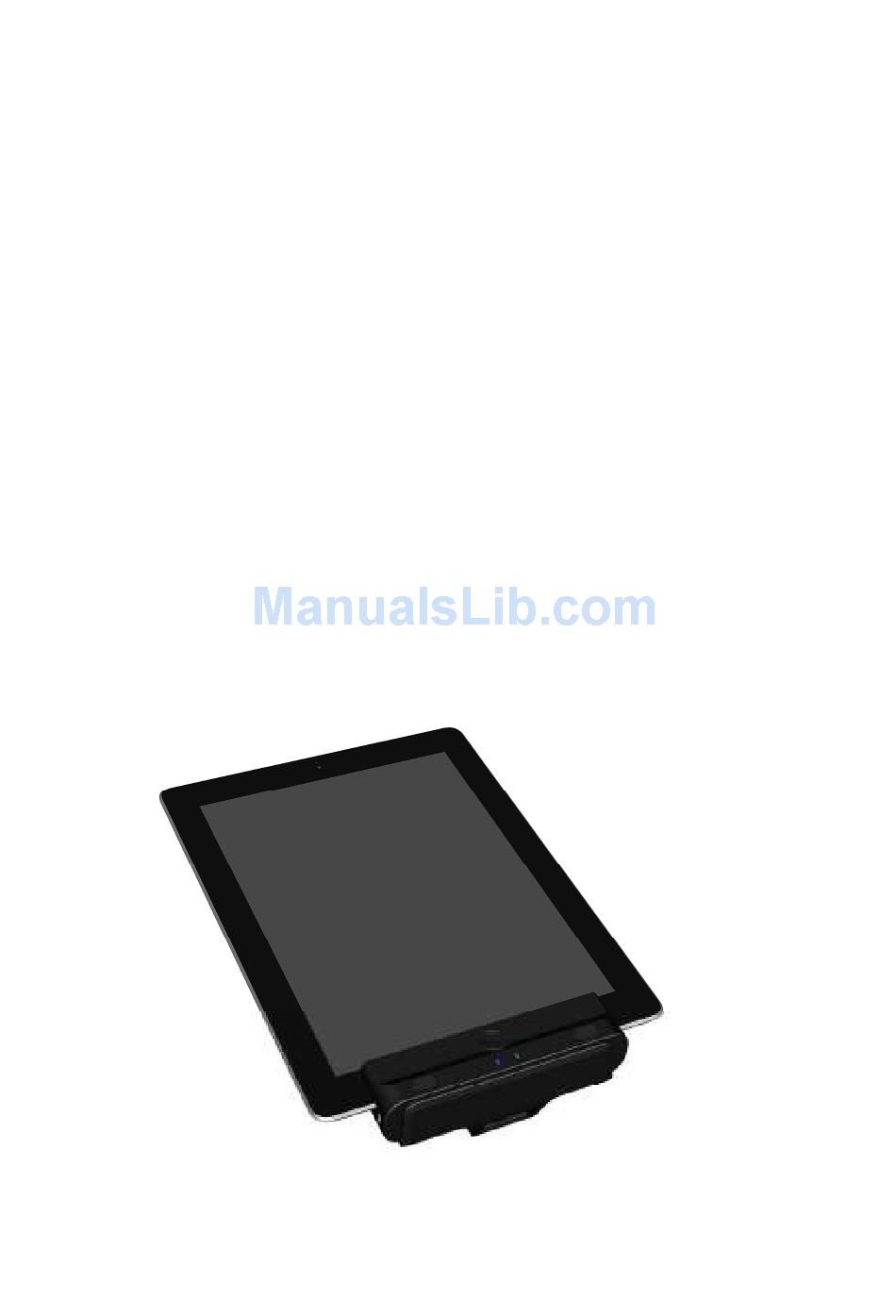

- Page 1 1 DATECS Linea TAB4 User Manual...
-
Page 2: Legal Notice
Legal Notice “Made for iPad” mean that an electronic accesory has been designed to connect specifically to iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible fort he operation of this device or its compliance with safety and regulatory standards. -
Page 3: Fcc Notice
FCC Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. No changes shall be made to the equipment without the manufacturer’s permission as this may void the user’s authority to operate the equipment Exposure to Radio Frequency (RF) Signals... - Page 4 Overview Features: Battery: Rechargeable Li-ion Battery - 1100 mAh, Charging via USB to computer Charging via Power Station Magnetic Card Reader – 3-Track Head: Swipe Speed: Minimum of 1.97 in/sec MTBF: 1 million swipes Bidirectional reading capabilities Barcode Scanner - Class II - 1D/2D Imager: Single / Multi-scan mode 1D - MTBF: 30K hours (Laser Diode &...
-
Page 5: Technical Data
Technical Data Processor 32-bit ARM Cortex - M3 based Microcontroller Magnetic Card Reader • 3-track bi-directional reading (option) • ISO 7810, 7811 and 7813 Secure Magnetic Card • PCI PTS 3.x certified Reader • DUKPT and Fixed Key Management (option) •... - Page 6 Device compatibility iPad (4th generation), iPad Air, iPad Air 2, 9.7-inch iPad Pro, 12.9-inch iPad Pro Buttons 2 scan buttons LED indication 2 LEDs for battery and device status Audio indication Electro - Magnetic Buzzer Weight, g 115 with battery and 2D barcode reader (without iPad) Dimensions (LxWxH), 128 x 51 x 45 Operating: -10 o C to +40 o C / 35 to 85% RH...
-
Page 7: Box Contents
Box Contents Your Linea Tab comes with the following items listed below: Item Part Number Descriptions Image Linea Tab4 Reader / Linea Tab4 Scanner USB A to mini USB sync cable B USB Linea Tab User's manual User Manual Table 2... -
Page 8: Getting Started
Getting Started Device overview Fig. 1 Fig. 2... - Page 9 Where to find more Step What to do Purpose information The battery pack Fully charge your should be fully Charging Battery, Linea Tab4 as charged before use Page 10. recommended. to ensure long battery life. Barcode Scanning & Card Reading Please contact your Install Software.
-
Page 10: Charging Battery
The Linea Tab4 uses a Lithium-Ion rechargeable battery pack. Before first use, the battery pack should be charged for at least (4) hours. To prevent electrical damage to the Linea Tab4 and/or battery pack, please use approved USB to Mini USB cables only. Charging via USB cable... -
Page 11: Attaching Device
Attaching Device When using the Linea Tab4, care must be taken to ensure the Linea Tab4 9-pin connector and the iPad4 connector are not accidentally damaged. The figures below show how to attach your device to the Linea Tab. Blue led will blink fast, when the iPad4 is connected to Linea TAB4. -
Page 12: Barcode Scanning
1D Barcode Scanning Using the 1D barcode scanner: The Linea Tab4 1D uses a scan engine that supports one- dimensional (1D) barcode symbols. The effective reading distance of the barcode reader varies depending on the barcode size. Scanning 1D Barcodes: To scan a 1D barcode fist activate the scanner. - Page 13 2D Barcode Scanning Using the 2D barcode scanner: The Linea Tab4 2D uses a scan engine that supports one-dimensional (1D) and two-dimensional (2D) barcode symbols. The effective reading distance of the barcode reader varies depending on the barcode size. Scanning 2D Barcodes: To scan a 2D barcode fist activate the scanner.
-
Page 14: Card Reading
Card Reading Reading Magnetic Strips: The Linea Tab4 has a built-in magnetic card reader. The card reader incorporates a (3) track magnetic read head requiring a single swipe to read field data from all three tracks. The magnetic read head faces up towards the top of the cradle. -
Page 15: Rfid Card Reading
Please contact your distributor in order to get the latest demo application and SDK. Place the card on the show spot and press the read RFID card button on the application. The data will be send from the Linea Tab4 RFID reader to the iPad. Fig. 8...
