- Page 1 1 DATECS Infinea Tab M Lite User Manual...
- Page 2 USER MANUAL THE INFORMATION IN THIS DOCUMENT CANNOT BE REPRODUCED IN ANY MECHANICAL, ELECTRICAL OR ELECTRONIC WAY AND UNDER ANY CIRCUMSTANCES WITHOUT THE WRITTEN CONSENT FROM DATECS LTD. Address: 4 Datecs Street, Sofia 1592, Bulgaria Phone: +359 2 816 55 50...
- Page 3 1 DATECS INFINEA TAB M LITE USER MANUAL REVISION HISTORY Version Data Change description 1.0.0 19.07.2018 First Release 2.0.0 28.06.2019 Added Section “REGULATORY”...
- Page 4 1 DATECS INFINEA TAB M LITE USER MANUAL REGULATORY FCC ID: YRWITML This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 5 1 DATECS INFINEA TAB M LITE USER MANUAL LEGAL NOTICE “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to the iPhone and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
-
Page 6: Table Of Contents
TECHNICAL SPECIFICATIONS ..............................7 GENERAL VIEW ..................................9 GETTING STARTED ................................. 10 PERIODIC INSPECTION AND MAINTENANCE ........................11 ATTACHING APPLE DEVICE TO INFINEA TAB M LITE ......................12 OPERATION MODES ................................13 ........................13 PPLICATION DOWNLOAD MODE AND YSTEM MODE .................................. -
Page 7: Technical Specifications
1 DATECS INFINEA TAB M LITE USER MANUAL TECHNICAL SPECIFICATIONS Processor ARM Cortex® M3 Security Microcontroller 64KB Internal ROM Memory 256KB Internal RAM 1MB Internal Flash Application Memory 4MB Serial Flash Keypad • 1 button for device turning ON/OFF • 3-track bi-directional reading Magnetic Card Reader •... - Page 8 1 DATECS INFINEA TAB M LITE USER MANUAL Waste Electrical & Electronic Equipment The symbol means that according to local laws and regulations your product shall be disposed of separately from household waste at the end of its working life. To prevent possible harm to the environment or human health from...
-
Page 9: General View

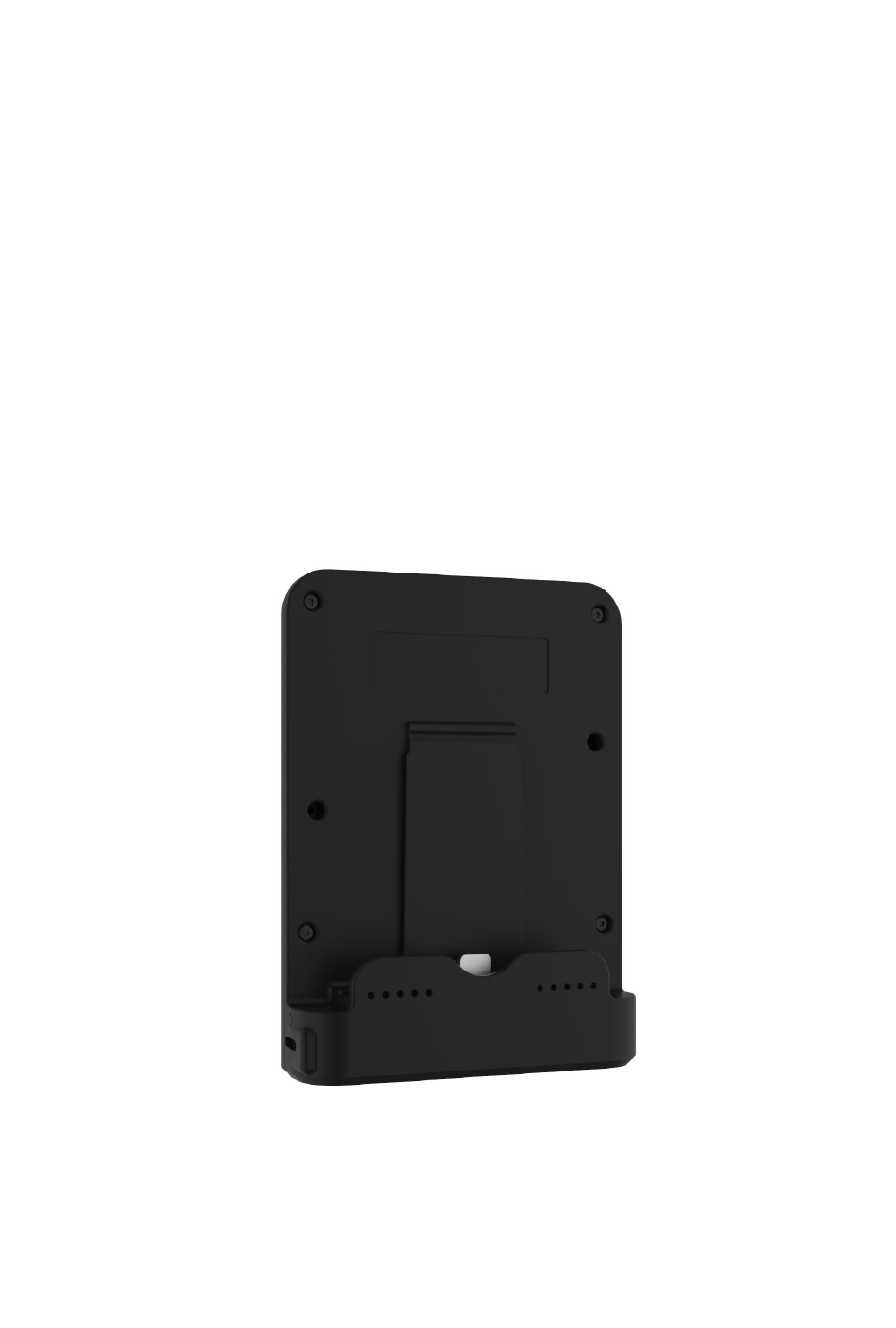

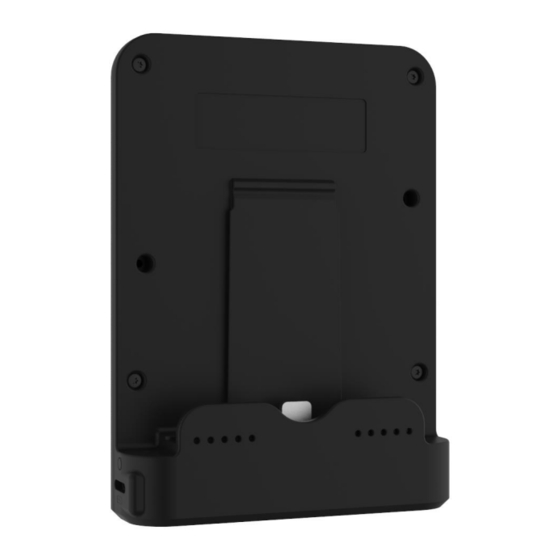

1 DATECS INFINEA TAB M LITE USER MANUAL GENERAL VIEW Fig. 1 1. Contactless reader 2. Indication for Contactless transaction / LEDs indication for device status 3. Magnetic Card Reader 4. Lightning connector 5. On/Off button 6. Charging pads 7. USB communication port (Lightning Receptacle port) -
Page 10: Getting Started
INFINEA TAB M LITE USER MANUAL GETTING STARTED Infinea Tab M Lite has rechargeable Li-Po battery. Battery can be recharged from Lightning Receptacle port or charging pads. Before first use, battery must be fully charged. If the device is fully discharged, charging time to fully charged would be less than 1 hour and 30min. -
Page 11: Periodic Inspection And Maintenance
1 DATECS INFINEA TAB M LITE USER MANUAL PERIODIC INSPECTION AND MAINTENANCE The following inspections must be performed on a regular basis after initial receipt and installation of Infinea Tab M Lite: • There are no visual indications for trying unauthorized opening of the device •... -
Page 12: Attaching Apple Device To Infinea Tab M Lite
ATTACHING APPLE DEVICE TO INFINEA TAB M LITE First Apple device must be inserted to the case. Then Infinea Tab M Lite and Apple device must be turn to top side, then Apple device must be slide to Infinea Tab M Lite lightning connector. -
Page 13: Operation Modes
When device is in Boot Loader/Application download mode will be played characteristic sound. System mode - to enter in “SYSTEM MODE” on the Infinea Tab M Lite, the power button has to be maintained pressed. A characteristic sound is played and first LED will start to light. Power button must be hold until third LED is light on, then releasing the power button. - Page 14 1 DATECS INFINEA TAB M LITE USER MANUAL LED indication Description Operating modes when is press power button First LED is continuously Device will go to normal operating mode light on Second LED is continuously Device will enter in Boot loader...
-
Page 15: Magnetic Cards Reading
USER MANUAL Magnetic cards reading The Infinea Tab M Lite has a built-in magnetic card reader. The card reader incorporates a (3) track magnetic read head, requiring a single swipe to read field data from all three tracks. The magnetic reading head faces down, towards the top of the bottom cover of the cradle. When swiping the card into the reader, the magnetic stripe must be facing as shown in the figure below. -
Page 16: Contactless Cards Reading
Contactless cards reading The contactless card transaction procedure can vary depending on the application loaded on the Infinea Tab M Lite. Verify the proper procedure with your application provider before performing a contactless card transaction. In order to use the Contactless card reading function, special software must be used. Please contact your distributor in order to get the latest demo application and SDK. -
Page 17: Power Management
USER MANUAL Power management The Infinea Tab M Lite can charge the attached Apple device. This can be done when is attached to charging station or USB cable is plugged to Lightning Receptacle port. Charging current is depends from the connected power source:... -
Page 18: Care, Maintenance And Warranty
• Forbidden is allowing unqualified personnel to service your Infinea Tab M Lite! SERVICE AND SUPPORT Service and Support: For Infinea Tab M Lite problems, product service, and repair information, contact your local Datecs representative or service provider. • International – Contact your local Datecs Ltd. Distributor. Service Returns: All customers, please contact your local Datecs Ltd.
