SWIMMING POOL PUMP
HIDRO-SPR SERIES PUMP
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIDRO-SPR Series and is the answer not in the manual?

Questions and answers

Related Manuals for Hidrotermal HIDRO-SPR Series

Summary of Contents for Hidrotermal HIDRO-SPR Series

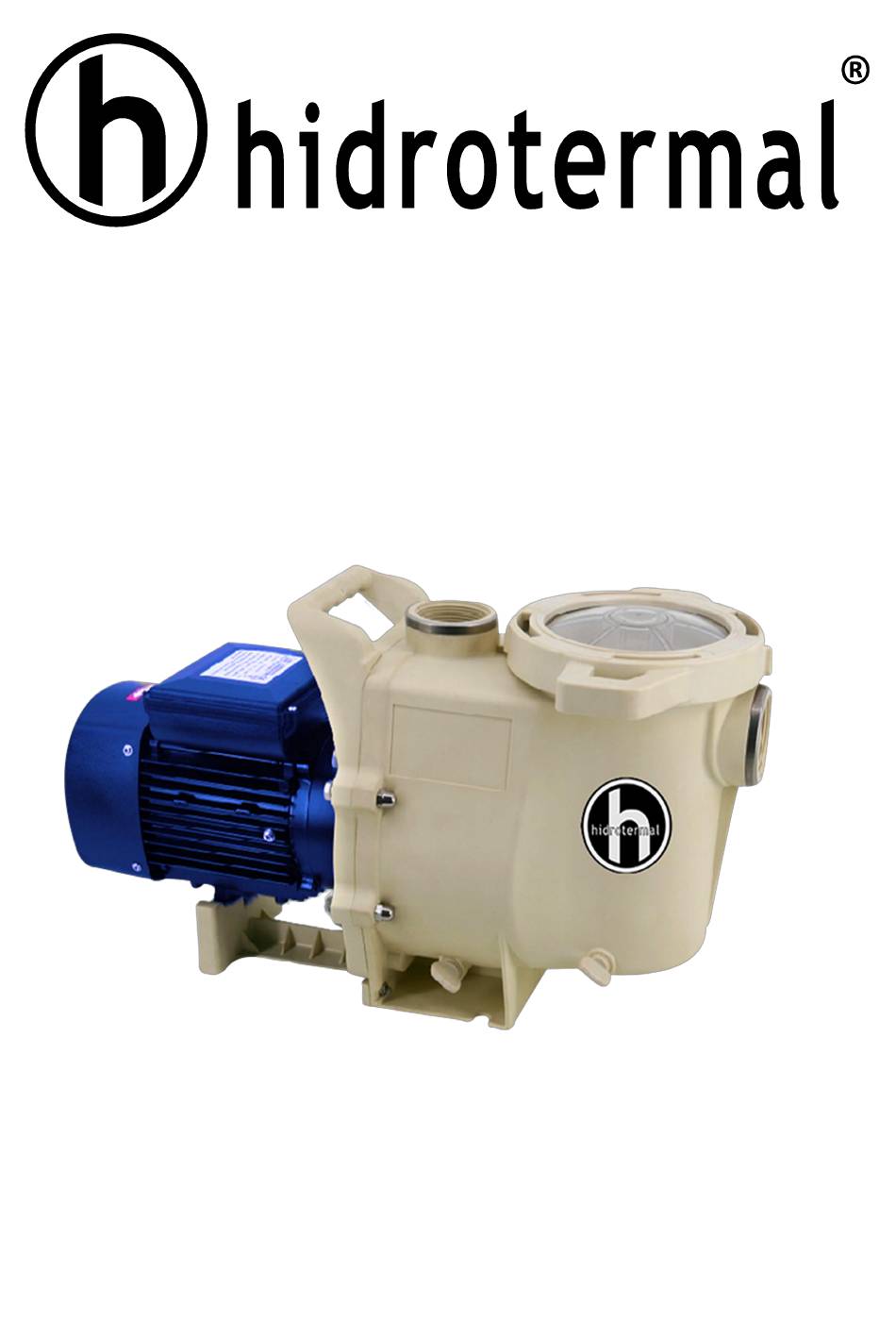

  • Page 1 SWIMMING POOL PUMP HIDRO-SPR SERIES PUMP USER MANUAL...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: 1.READ AND FOLLOW ALL INSTRUCTIONS. 2.WARNING To reduce the risk of injury. Do not permit children to use this product unless they are closely supervised at all times.
  • Page 3 1.General These instructions are for correct installation, and optimum performance of the Bath pumps, so they should be read carefully. These are single-stage centrifugal pumps designed to operate with compact hydromassage equipment, They are equipped with a total-emptying system to prevent the discharge of residual liquid in each stopping. These units are designed to operate with clean water at a maximum water temperature of 50℃.
  • Page 4 5.Controls Prior to Initial Start-up Verify that the pump shaft turns freely. Check that the mains voltage and frequency are according to the name plate. The hydromassage assembly should be equipped with a system to prevent the pump from starting up if a minimum water level is not present. Check the rotating direction of the motor, which should concur with that indicated on the fan cover.
  • Page 5 Performance curves HIDRO-SPR400(H) HIDRO-SPR300(H) HIDRO-SPR200(H) HIDRO-SPR075(H) HIDRO-SPR100(H) HIDRO-SPR120(H) HIDRO-SPR150(H) Flow Installation diagram Vacuum hose Vacuum head Water pump Sand filter...
  • Page 6 Power(P)1 Qmax Hmax Model (L/min) Single Three Phase Phase HIDRO-SPR75(H) 0.55 0.75 HIDRO-SPR100(H) 0.75 HIDRO-SPR120(H) HIDRO-SPR150(H) HIDRO-SPR200(H) HIDRO-SPR300(H) HIDRO-SPR400(H) V / Hz esp: See pump nameplate. Liquid temperature: 4℃ ~ 50℃. Storage temperature: -10℃ +50℃ Relative Air Humidity: 95% Max.

This manual is also suitable for:

Hidro-spr75(h)Hidro-spr100(h)Hidro-spr120(h)Hidro-spr150(h)Hidro-spr200(h)Hidro-spr300(h) ... Show all
