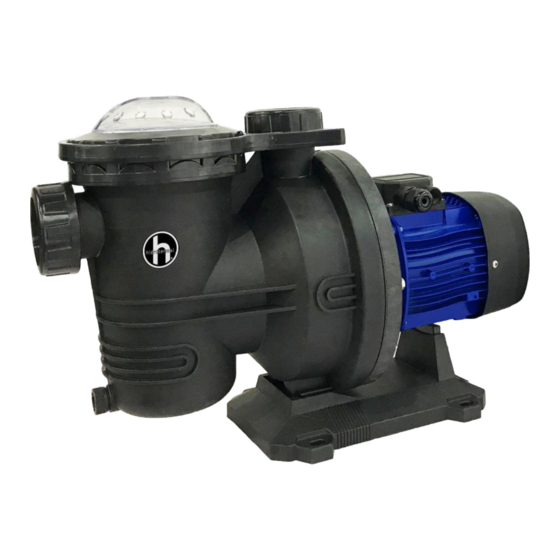

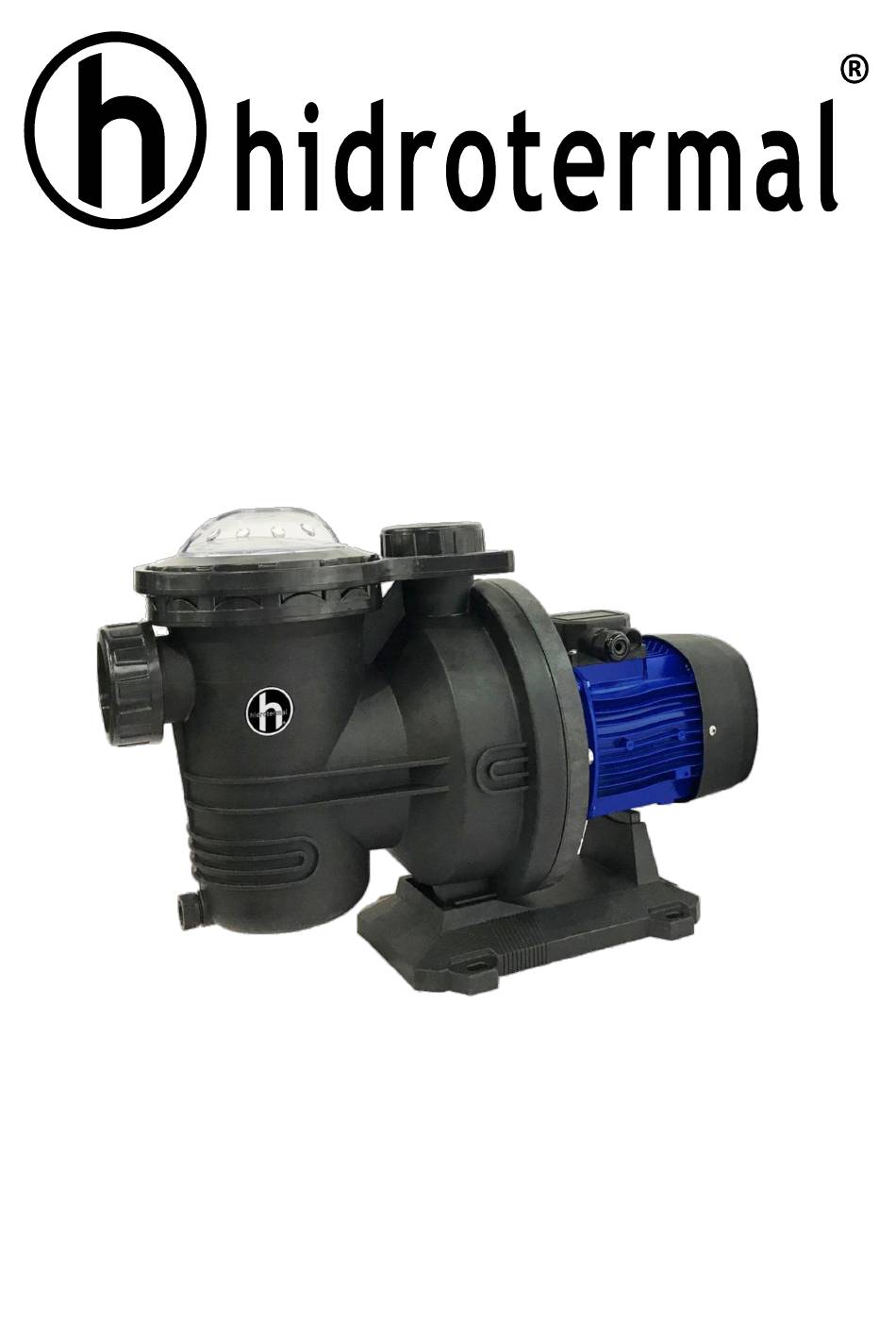

- Page 1 SOLAR POWERED SWIMMING POOL PUMP HIDRO-SP Series INSTALLATION AND MAINTENANCE MANUAL Please read this operation manual carefully and keep it for future reference.
-
Page 2: Installation Details
Introduction Congratulations on the purchase of your Solar Pool Pump. Solar powered products are environmentally friendly, self-sufficient as well financial benefit to reduce rising electrical cost. Our product range is designed with durability and reliability in mind to provide trouble free service throughout the life of the product. Our Solar Pumps can be used for: Agriculture ●... - Page 3 Sizing the solar panel array to suit the system If you have not purchased a complete system from your Certified Distributer the following formula will be sueful. Your certified distributer will be able to help you with panel selection. The optimum loaded DC voltage (Vmp) for the solar controller is between 42VDC to 83VDC.
- Page 4 Panels in parallel: add the current and the wattage of the panels. Example 2×36 volt, 8 Amp 200 watt panels in parallel becomes a 36 volt 16 Amp 400 watt system. Solar Panel Solar Panel 200 Watt 200 Watt 36 Volt 400 watt, 16 Amp In the schematic below are the connection details for the pumps available of our Solar DC Pool Pump...
- Page 5 Hidro-SP120 / Hidro-SP160 Solar Panel Solar Panel Hidro-SP067 250-300 250-300 Walt Walt Solar Solar 38-44V Panel Panel 38-44V 230-250 230-250 Walt Walt 38-44V 38-44V Solar Panel Solar Panel 250-300 250-300 Walt Walt 38-44V 38-44V Solar Solar Panel Panel 230-250 230-250 Walt Walt 38-44V...
-
Page 6: Solar Controller
Solar Controller Function and display of the solar pump controller Low-voltage protection (automatic) Over current protection (automatic) Control of motor running speed (speed regulator) MPPT function (Maximum Power Point Tracking) Operation Panel 1. LED Indicator Light Power MPPT Tank Well ●Voltage(V): Voltage indicator lights. -
Page 7: Swimming Pool
Pool connections using Existing AC Pump SWIMMING POOL SKIMMER LOWER POOL JET POOL JET SUCTION Solar DC Pump FILTER HEATER Existing Pool Pump CHECK VALVES SEPARATION VALVES #7 SOLAR DC PUMP EXIT SIDE #1 SKIMMER OUTLET #8 EXISTING POOL PUMP EXIT SIDE #2 LOWER POOL SUCTION #3 SOLAR POOL PUMP SEPARATION SUCTION SIDE #4 EXISTING AC POOL PUMP SUCTION SIDE... - Page 8 If not, turn power off, swap the wires on U and V, turn power on and check again. Do not allow the pump to rotate anticlockwise or the pump and/or motor will be damaged and warranty will be void. If the motor continues spin backwards, turn everything off and call for service advice.
- Page 9 Hidro-SP 500W/900W Exploded View CHART ITEM ITEM ITEM Filter cover nut Connection O ring Water fender Filter cover Pump body seal ring Water drain plug Filter cover O ring Guide plate seal ring Water drain plug O ring Filter Guide plate Pump body Inlet nut Impeller...
- Page 10 FLOW & HEAD PRESSURE GRAPH Flow rate Q MAX. MAX. OUTLET FLOW HEAD MANUFACTURE CODE VOLTAGE/ POWER inch Hidro-SP026 24V / 200W 1.5 x 1.5 Hidro-SP067 48V / 500W 2 x 2 Hidro-SP120 72V / 900W 2 x 2 Hidro-SP160 72V / 1200W 3 x 3...
- Page 11 uFault Information and Troubleshooting Method Fault Fault Recovery Cause and Solutions of Fault Code Description Procedure ★Motor model is mismatch, please choose matching pumps. Hardware Automatically ★UVW three-phase short-circuit Overcurrent remove after 30s connection, please rewiring to ensure the normal installation of UVW. Phase UVW three-phase open circult, please Automatically...
