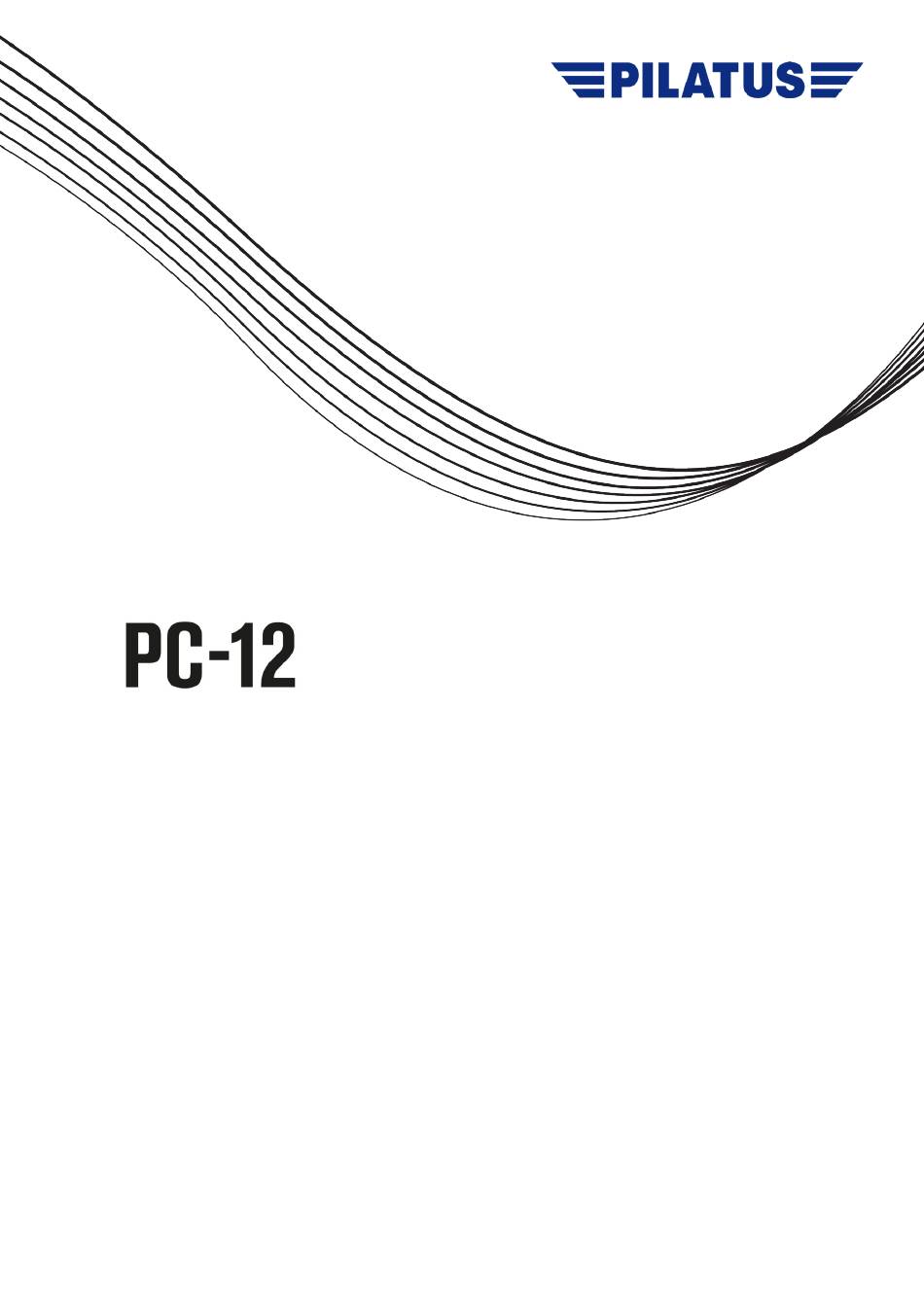

Ground Servicing Guide
Document Number 02527
Issue 001 1Revision 00: Dec 19, 2022
This document contains recommended information for Fixed Base Operators
when servicing the PC-12 aircraft.
The information contained herein is advisory.
In the event of any contradictions, the Pilots Operating Handbook (POH) and FOCA
Approved Airplane Flight Manual shall prevail over this document.
This document is not authority approved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC-12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pilatus PC-12

Summary of Contents for Pilatus PC-12

  • Page 1 Issue 001 1Revision 00: Dec 19, 2022 This document contains recommended information for Fixed Base Operators when servicing the PC-12 aircraft. The information contained herein is advisory. In the event of any contradictions, the Pilots Operating Handbook (POH) and FOCA Approved Airplane Flight Manual shall prevail over this document.
  • Page 2 This Page Intentionally Left Blank Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022...
  • Page 3 Section FM - Front Matter SECTION FM Front Matter Table of Contents Subject Page List of Effective Data Modules FM-1-1 Log of Revisions FM-2-1 Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page FM-0-1...
  • Page 4 Section FM - Front Matter This Page Intentionally Left Blank Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page FM-0-2...
  • Page 5 Section FM - Front Matter List of Effective Data Modules All DMC are preceded with 12-A but for clarity this has been left out C = Changed data module N = New data module Data module code (DMC) Document title Issue date A15-00-0000-00A-002A-A List of Effective Data Modules...
  • Page 6 Section FM - Front Matter This Page Intentionally Left Blank Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page FM-1-2...
  • Page 7 Section FM - Front Matter Log of Revisions Revision number and Date Date Module Code Description Issue 001 Revision 00 Dated PC-12 Ground Servicing Dec 19/2022 Guide Initial Issue. Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022...
  • Page 8 Section FM - Front Matter This Page Intentionally Left Blank Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page FM-2-2...

  • Page 9: Table Of Contents

    Section 0 - Introduction SECTION 0 Introduction Table of Contents Subject Page Introduction 0-1-1 Copyright and Legal Statement 0-1-1 General 0-1-1 Purpose 0-1-1 Revisions 0-1-2 Aircraft Dimensions 0-1-2 Danger and Hazard Areas 0-1-6 Runway Guidelines 0-1-6 Weight Guidelines 0-1-6 Aircraft Classification Number 0-2-1 Aircraft Classification Number 0-2-1...
  • Page 10 Section 0 - Introduction This Page Intentionally Left Blank Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 0-0-2...

  • Page 11: Introduction

    Pilatus Aircraft Ltd. In connection with the use of this document, Pilatus does not provide any express or implied warranties and expressly disclaims any warranty of merchantability or fitness for a particular purpose.

  • Page 12: Revisions

    Revisions Revision Schedule As new information becomes available for the PC-12 aircraft, Pilatus Aircraft Ltd. will issue revised information and instructions to keep the contents of the GSG current. This information may relate to, but is not limited to, approved modifications or improved knowledge, operating techniques or other guidance acquired through in-service experience.
  • Page 13 Section 0 - Introduction NOTE: WINGSPAN DIMENSION IS IN A FULLY FUELED CONDITION 1,69 m (5 ft 6 in) 16,28 m 16,23 m 5,20 m (53 ft 4 in) (53 ft 3 in) (17 ft 1 in) MSN 684 AND UP 4,26 m 1,83 m (14 ft)
  • Page 14 Section 0 - Introduction ROTATION POINT (MEASUREMENT POINT) NOTE: Ground turning radius using nosewheel steering, inside brake and partial power. A . WING TIP RADIUS 35' 7" 10,864 m B . NOSEWHEEL RADIUS 14' 10" 4,513 m C . OUTSIDE MAIN GEAR RADIUS 16' 6"...
  • Page 15 Section 0 - Introduction ICN-12-A-A150000-A-S4080-02246-A-001-01 Figure 0-1-3: Aircraft Ground Turning Clearance - NWS Only (No Braking) Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 0-1-5...

  • Page 16: Danger And Hazard Areas

    Section 0 - Introduction Danger and Hazard Areas Refer to Fig. 0-1-4 thru Fig. 0-1-7. When the engine is running, there are danger areas from: − The propeller − The engine exhausts − The propeller wash − The engine air intake −...
  • Page 17 Section 0 - Introduction Table 0-1-2: Weight Limits MSN 101 - 160 Pre SB 04-001 Description Weight kg (lb) Maximum ramp weight 4120 (9083) Maximum take-off weight 4100 (9039) Maximum landing weight 4100 (9039) Maximum zero fuel weight 3700 (8160) Table 0-1-3: Weight Limits MSN 161 - 544, 546 - 683 and MSN 101 - 160 Post SB 04-001 Description Weight kg (lb)
  • Page 18 Section 0 - Introduction 3,96 m (13 ft) 10,06 m (33 ft) 20,12 m (66 ft) 30,17 m (66 ft) PROPELLER DANGER AREA - KEEP CLEAR HOT EXHAUST KEEP CLEAR PROPELLER/EXHAUST BACK WASH KEEP CLEAR 40,23 m (132 ft) 4,88 m 4,88 m (16 ft) (16 ft)
  • Page 19 Section 0 - Introduction HOT STATIC PORT LH SHOWN RH SIMILAR HOT EXHAUST PROPELLER DANGER AREA PROPELLER 2,67 m (8 ft 9 in) HOT EXHAUST HOT EXHAUST HOT PITOT HOT PITOT PROBE PROBE MSN 321-UP DANGER AREAS ICN-12-A-A074000-A-S4080-02602-A-001-01 Figure 0-1-5: Danger Zones Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022...
  • Page 20 Section 0 - Introduction UPPER RED LED FLASHING BEACON LIGHT LOWER RED LED FLASHING BEACON LIGHT COMBINED LED NAVIGATION ANTI COLLISION/POSITION LIGHTS LED RECOGNITION (PULSE) LIGHT RH WING LED LANDING LIGHT RH MLG LED LANDING LIGHT LH MLG LED RECOGNITION (PULSE) LIGHT LH WING COMBINED LED NAVIGATION...
  • Page 21 Section 0 - Introduction WX-RADAR GPS 1/WAAS HF-COM (OPTIONAL) ATC(DIV) IRIDIUM SATCOM (OPTIONAL) NOTE: ANTENNAE RADIO FREQUENCY (RF) RADIATION DANGER AREAS WX-RADAR - RADIUS 5 m (16.40 ft) 270 DEGREE ARC HF-COM - RADIUS 3 m (9.84 ft) ICN-12-A-A074000-A-S4080-02605-A-001-01 ALL OTHER ANTENNAE - RADII 1 m (3.28 ft) Figure 0-1-7: Typical Antenna Hazard Areas (Sheet 1 of 4) Ground Servicing Guide Report No: 02527...
  • Page 22 Section 0 - Introduction STORMSCOPE (MSN 1576-UP) ATC 2 DME 2 VHF 1 NOTE: ANTENNAE RADIO FREQUENCY (RF) RADIATION DANGER AREAS ANTENNAE - RADII 1 m (3.28 ft) ICN-12-A-A150000-A-S4080-02610-A-001-01 Figure 0-1-7: Typical Antenna Hazard Areas (Sheet 2 of 4) Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 0-1-12...
  • Page 23 Section 0 - Introduction (MSN 1575-UP) VHF 2 (MSN 1001-1575) GPS 2/WAAS INMARSAT SATCOM (OPTIONAL) NOTE: ANTENNAE RADIO FREQUENCY (RF) RADIATION DANGER AREAS ANTENNAE - RADII 1 m (3.28 ft) ICN-12-A-A074000-A-S4080-02612-A-001-01 Figure 0-1-7: Typical Antenna Hazard Areas (Sheet 3 of 4) Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022...
  • Page 24 Section 0 - Introduction STORMSCOPE (MSN 1001-1575) STORMSCOPE (MSN 1576-UP) ATC 1 R/A (2) ADF 2 or UHF 1 or VHF 3 NOTE: ANTENNAE RADIO FREQUENCY (RF) RADIATION DANGER AREAS ANTENNAE - RADIUS 1 m (3.28 ft) ICN-12-A-A150000-A-S4080-02613-A-001-01 Figure 0-1-7: Typical Antenna Hazard Areas (Sheet 4 of 4) Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022...

  • Page 25: Aircraft Classification Number

    Z (tire pressure limited to 73 psi) Note The PC-12 nose and main wheel tires have a service pressure of 60 psi (nose wheel), 55 psi (PC-12 main wheel) or 60 psi (PC-12/45 and PC-12/47 main wheel). Therefore PC-12 aircraft will never be tire pressure limited.

  • Page 26: Determination Of Allowed Operation On The Runway

    Section 0 - Introduction Determination of Allowed Operation on the Runway To determine if an aircraft can operate without restrictions on a pavement: From the Pavement Type Code, determine the: − Pavement Classification Number (PCN) − Pavement type − Subgrade strength −...
  • Page 27 Section 0 - Introduction Example This example shows how to find if an aircraft can operate without restrictions on the pavement that follows: − Pavement Type Code for a paved runway = PCN 20 / F/ D / Y / T −...
  • Page 28 Section 0 - Introduction ACN FLEXIBLE PAVEMENT EXAMPLE: WEIGHT: 9,000 LB SUBG 5000 6000 7000 8000 9000 10000 11000 WEIGHT (LB) ICN-12-A-A150000-A-S4080-02275-A-001-01 Figure 0-2-1: Aircraft Classification Number - Flexible Pavement ACN RIGID PAVEMENT 5000 6000 7000 8000 9000 10000 11000 WEIGHT (LB) ICN-12-A-A150000-A-S4080-02276-A-001-01 Figure 0-2-2: Aircraft Classification Number - Rigid Pavement...
  • Page 29 Section 1 - Ground Handling SECTION 1 Ground Handling Table of Contents Subject Page Towing 1-1-1 Preliminary Requirements and Safety Precautions 1-1-1 Recommended Support Equipment 1-1-1 Tow Guidelines 1-1-2 Parking 1-2-1 Preliminary Requirements and Safety Conditions 1-2-1 Recommended Support Equipment 1-2-1 Parking Guidelines 1-2-2...
  • Page 30 Section 1 - Ground Handling This Page Intentionally Left Blank Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 1-0-2...

  • Page 31: Towing

    Do not use the steering bar/tail stand to tow the aircraft. The steering bar/tail stand is for steering only when the aircraft is moved by hand. Note A minimum of five persons is recommended for this procedure. Recommended Support Equipment Equipment Recommended Pilatus Part Number Multi-head tow bar 990.00.00.904 Local supply Tow bar attachment head 990.00.00.943...

  • Page 32: Tow Guidelines

    Section 1 - Ground Handling The PC-12 aircraft has a steering bar/tail stand installed in the rear fuselage, refer to Fig. 1-1-1. Tow Guidelines Make sure that there are sufficient personnel to move the aircraft safely. If necessary, use one person: −...
  • Page 33 Section 1 - Ground Handling TAIL STAND/STEERING BAR STOWAGE INSIDE FUSELAGE ICN-12-A-A074000-A-S4080-02208-A-001-01 Figure 1-1-1: Tow the Aircraft Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 1-1-3...
  • Page 34 Section 1 - Ground Handling This Page Intentionally Left Blank Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 1-1-4...

  • Page 35: Parking

    Section 1 - Ground Handling Parking Preliminary Requirements and Safety Conditions CAUTION DO NOT PARK THE AIRCRAFT IN DIRECT SUNLIGHT IN VERY HOT WEATHER CONDITIONS. IF THE AIRCRAFT IS PARKED IN THESE CONDITIONS, USE THE WINDSHIELD COVERS TO GIVE PROTECTION TO THE AIRCRAFT. THIS WILL HELP PREVENT DAMAGE TO EQUIPMENT.

  • Page 36: Parking Guidelines

    Section 1 - Ground Handling Parking Guidelines Select a parking location: − On a hard, level surface − If possible, not in direct sunlight − With the aircraft nose into wind. When the aircraft is in the correct parking location: −...
  • Page 37 Section 1 - Ground Handling ICN-12-A-A152000-A-S4080-02252-A-001-01 Figure 1-2-1: Install the Tail Strut Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 1-2-3...
  • Page 38 Section 1 - Ground Handling ICN-12-A-A152000-A-S4080-02248-A-001-01 Figure 1-2-2: Install Blanks and Covers (Original Equipment) (Sheet 1 of 2) Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 1-2-4...
  • Page 39 Section 1 - Ground Handling ICN-12-A-A152000-A-S4080-02249-A-001-01 Figure 1-2-2: Install Blanks and Covers (Original Equipment) (Sheet 2 of 2) Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 1-2-5...
  • Page 40 Section 1 - Ground Handling ICN-12-A-A152000-A-S4080-02250-A-001-01 Figure 1-2-3: Install Blanks and Covers (New Standard) Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 1-2-6...
  • Page 41 Section 1 - Ground Handling IF INSTALLED INSIDE CABIN LOOKING OUTBOARD ICN-12-A-A152000-A-S4080-02607-A-001-01 Figure 1-2-4: Blanks and Covers - Five-Bladed Propeller Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 1-2-7...
  • Page 42 Section 1 - Ground Handling This Page Intentionally Left Blank Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 1-2-8...

  • Page 43: Mooring

    If it is exposed to strong wind or snow − If necessary after parking. Recommended Support Equipment Equipment Recommended Pilatus Part Number Mooring blocks (minimum 91 kg [200 lb] Local supply each) Rope (20 mm [0.75 in] diameter) Local supply...
  • Page 44 Section 1 - Ground Handling If necessary, make the tie-down points in the mooring area: − On a hard surface, use the mooring blocks − On a fine soil base, use the spike pickets − On a clay soil or rock surface, use the screw pickets. Note For the wing tie-down points, the tie-down ropes are to be at an angle of approximately 45°, at the tail tie-down point a maximum angle of 25°...
  • Page 45 Section 1 - Ground Handling GROUND MOORING POINTS RECESSED RING MOORING POINT AND CONCRETE MOORING BLOCK 25° 25° ICN-12-A-A152000-A-S4080-02253-A-001-01 Figure 1-3-1: Aircraft Mooring Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 1-3-3...
  • Page 46 Section 1 - Ground Handling ICN-12-A-A152000-A-S4080-02252-A-001-01 Figure 1-3-2: Install the Tail Stand Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 1-3-4...

  • Page 47: Cargo - Loading/Unloading Procedure

    Hazardous Materials The PC-12 aircraft does not have special protection against the effects of leakage of hazardous materials. If hazardous materials are to be carried operators must consider protection against leakage.
  • Page 48 Section 1 - Ground Handling ICN-12-A-A152000-A-S4080-02264-A-001-01 Figure 1-4-1: Fore-Aft Strap Angles Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 1-4-2...
  • Page 49 Section 1 - Ground Handling INSTALLATION OF A CARGO NET FORWARD OF CARGO IS RECOMMENDED IF PASSENGERS ARE IN CABIN CARGO NET FRAME 24 FRAME 27 EXTENDABLE FRAME 32 LUGGAGE NET LUGGAGE NET FRAME 34 ANCHOR PLATE STRAP STRAP NET FLOOR EXTENDED ATTACHMENT LUGGAGE NET...
  • Page 50 Section 1 - Ground Handling This Page Intentionally Left Blank Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 1-4-4...
  • Page 51 Section 2 - Aircraft Servicing SECTION 2 Aircraft Servicing Table of Contents Subject Page Inflate Tires 2-1-1 Preliminary Requirements and Safety Conditions 2-1-1 Recommended Support Equipment 2-1-2 Guidelines for Tire Inflation 2-1-2 Fuel - Defuel and Drain Fuel 2-2-1 Preliminary Requirements and Safety Conditions 2-2-1 Recommended Support Equipment 2-2-1...
  • Page 52 Section 2 - Aircraft Servicing Subject Page Cleaning Guidelines 2-6-2 Waste / Water System Servicing 2-7-1 Preliminary Requirements and Safety Conditions 2-7-1 Recommended Materials 2-7-1 Drain the Waste Tank 2-7-2 Cold Weather Procedures (Deicing / Anti-Icing) 2-8-1 General 2-8-1 Deicing Methods 2-8-1 Inspections 2-8-2...

  • Page 53: Inflate Tires

    Section 2 - Aircraft Servicing Inflate Tires Preliminary Requirements and Safety Conditions WARNING DO NOT POINT A COMPRESSED GAS OUTLET AT YOUR BODY OR AT OTHER PERSONS. THE COMPRESSED GAS CAN CAUSE INJURY TO PERSONNEL. WARNING DO NOT FILL A TIRE THAT IS DAMAGED. YOU CAN CAUSE AN EXPLOSION WHICH CAN KILL OR CAUSE AN INJURY TO PERSONNEL AND/OR DAMAGE TO EQUIPMENT.

  • Page 54: Recommended Support Equipment

    Section 2 - Aircraft Servicing Recommended Support Equipment Equipment Recommended Pilatus Part Number Tire / strut service gauge 903.70.32.911 or local supply Nitrogen cart with booster 990.00.00.702 or local supply Guidelines for Tire Inflation Note It is permitted to inflate tires with air if dry nitrogen is not available. The air must be removed within the next 15 flying hours and the tire inflated with dry nitrogen that does not contain more than 5% oxygen by volume.
  • Page 55 Section 2 - Aircraft Servicing TYPICAL SIDEWALL VENTS TYPICAL DRY TIRE, VENT HOLE AND MARKING WET TIRE, SOAP SOLUTION OR LEAK DETECTION COMPOUND APPLIED. AIR ESCAPING ICN-12-A-A152000-A-S4080-02254-A-001-01 Figure 2-1-1: Tire Sidewall Vent Holes Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 2-1-3...
  • Page 56 Section 2 - Aircraft Servicing This Page Intentionally Left Blank Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 2-1-4...

  • Page 57: Fuel - Defuel And Drain Fuel

    Do not remove the ground from the aircraft until the defuel operation is complete − Do not remove the defuel vehicle ground from the aircraft until the defuel operation is complete. Recommended Support Equipment Equipment Recommended Pilatus Part Number Defuel container Local supply Defuel adaptor Local supply Defuel vehicle...

  • Page 58: Msn 101 - 888, 1001 - 1719, 1721 - 1942 Defuel

    Section 2 - Aircraft Servicing MSN 101 - 888, 1001 - 1719, 1721 - 1942 Defuel Connect a ground lead to the nose landing gear (NLG) ground point Figure 2-2-1 [1]. Make sure that the aircraft electrical system is de-energized. MSN 101 - 888 Open and safety the STARTER circuit breaker (BATTERY BUS).

  • Page 59: Msn 101 - 888, 1001 - 1719, 1721 - 1942 Drain Fuel

    Section 2 - Aircraft Servicing Move the defuel vehicle away from the area. MSN 101 - 888, 1001 - 1719, 1721 - 1942 Drain Fuel Put the defuel container below the left wing outboard drain valve Figure 2-2-1 [2]. Open the left wing outboard drain valve Figure 2-2-1 [2] and drain the remaining fuel from the fuel tank.

  • Page 60: Msn 1720, 2001 And Up Defuel

    Section 2 - Aircraft Servicing MSN 1720, 2001 and Up Defuel Connect a ground lead to the nose landing gear (NLG) ground point Figure 2-2-2 [1]. Make sure that the aircraft electrical system is de-energized. Open and safety the STARTER circuit breaker (ESSENTIAL BUS). Move the defuel vehicle to the correct position to defuel the aircraft.

  • Page 61: Msn 1720, 2001 And Up Drain Fuel

    Section 2 - Aircraft Servicing Remove the defuel vehicle ground from the nose landing gear Figure 2-2-2 [1]. Move the defuel vehicle away from the area. MSN 1720, 2001 and Up Drain Fuel Put the defuel container below the left wing outboard drain valve Figure 2-2-2 [2].
  • Page 62 Section 2 - Aircraft Servicing ICN-12-A-A121000-A-S4080-02242-A-001-01 Figure 2-2-1: MSN 101 - 1719, 1721 - 1942 Defuel and Drain Fuel Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 2-2-6...
  • Page 63 Section 2 - Aircraft Servicing ICN-12-A-A121000-A-S4080-02603-A-001-01 Figure 2-2-2: MSN 1720, 2001 and Up - Defuel and Drain Fuel Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 2-2-7...
  • Page 64 Section 2 - Aircraft Servicing This Page Intentionally Left Blank Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 2-2-8...

  • Page 65: Refuel

    − Do not remove the refuel vehicle ground from the aircraft until the refuel operation is complete. Recommended Support Equipment Equipment Recommended Pilatus Part Number Refuel vehicle Local supply Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022...

  • Page 66: Refuel The Aircraft

    Section 2 - Aircraft Servicing Refuel the Aircraft Connect a ground lead Figure 2-3-1 [3] to the nose landing gear ground point and a ground point. De-energize the aircraft electrical system. Make sure that the refuel vehicle has the correct fuel. Move the refuel vehicle into position to refuel the aircraft, Connect the refuel vehicle ground to the nose landing gear ground point.
  • Page 67 Section 2 - Aircraft Servicing ICN-12-A-A152000-A-S4080-02274-A-001-01 Figure 2-3-1: Refuel Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 2-3-3...
  • Page 68 Section 2 - Aircraft Servicing This Page Intentionally Left Blank Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 2-3-4...

  • Page 69: Windows - Clean And Check

    CAUTION DO NOT USE CLEANING AGENTS THAT ARE NOT RECOMMENDED. IF YOU DO, YOU CAN CAUSE DAMAGE TO THE WINDSHIELDS AND WINDOWS. Recommended Support Equipment Equipment Recommended Pilatus Part Number Work platform Local supply Spray bottle Local supply Ground Servicing Guide...

  • Page 70: Recommended Supplies

    Section 2 - Aircraft Servicing Recommended Supplies Supply item Recommended Pilatus Part Number Chamois leather Local supply Sponge Local supply Clean water Local supply Soap solution Local supply Cleaning Guidelines Note The flight compartment windows, consisting of the windshields and side windows, have an outer glass surface with anti-static coating.

  • Page 71: Exterior - Clean

    Section 2 - Aircraft Servicing Exterior - Clean Preliminary Requirements and Safety Conditions WARNING BE CAREFUL WHEN YOU USE THE CONSUMABLE MATERIALS. OBEY THE MANUFACTURER’S HEALTH AND SAFETY INSTRUCTIONS AND ALL THE APPLICABLE LOCAL INSTRUCTIONS. CONSUMABLE MATERIALS CAN BE DANGEROUS AND CAN CAUSE DEATH OR INJURY TO PERSONNEL AND/OR DAMAGE TO EQUIPMENT.

  • Page 72: Recommended Support Equipment

    Section 2 - Aircraft Servicing Recommended Support Equipment Equipment Recommended Pilatus Part Number Soft bristled brush Local supply Hose with nozzle attachment Local supply Spray bottle Local supply Recommended Supplies Supply Recommended Pilatus Part Number Clean water Local supply Lint-free cleaning cloth...
  • Page 73 Section 2 - Aircraft Servicing Prepare the Aircraft CAUTION DO NOT USE ADHESIVE TAPE TO COVER THE STATIC PORTS. IF YOU DO, RESIDUAL ADHESIVE CAN STAY ON THE STATIC PORT, ATTRACT CONTAMINATION AND CAUSE INCORRECT STATIC PRESSURE FOR AIRCRAFT SYSTEMS. Flight crew or authorized trained personnel - set the flaps to 40°.
  • Page 74 The static ports − The pitot probes. Flight crew or authorized trained personnel - set the flaps to 0°. Clean the aircraft windows. Recommended procedures Equipment Recommended Pilatus Part Number Grease 908.20.02.065 Local supply (Aeroshell 33) Grease gun 904.21.02.103 904.21.02.104 904.21.02.102...
  • Page 75 Section 2 - Aircraft Servicing After the aircraft has been washed, if the applicable equipment and supplies are available, it is recommended to lubricate the Main Landing Gear (MLG) and Nose Landing Gear (NLG) as follows: Lubricate the MLG with an applicable grease gun and grease at the two fittings Figure 2-5-1 [1] Figure 2-5-1 [2].
  • Page 76 Section 2 - Aircraft Servicing ICN-12-A-A152000-A-S4080-02616-A-001-01 Figure 2-5-1: MLG - Servicing Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 2-5-6...
  • Page 77 Section 2 - Aircraft Servicing ICN-12-A-A152000-A-S4080-02615-A-001-01 Figure 2-5-2: NLG - Servicing Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 2-5-7...
  • Page 78 Section 2 - Aircraft Servicing This Page Intentionally Left Blank Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 2-5-8...

  • Page 79: Interior - Clean

    AND/OR THE AIRCRAFT STRUCTURE. CAUTION DO NOT CLEAN THE INSTRUMENT PANEL WITH WATER OR THE SOAP SOLUTION. THIS CAN DAMAGE THE INSTRUMENT ANTI-GLARE COATING. Recommended Support Equipment Equipment Recommended Pilatus Part Number Vacuum cleaner Local supply Sponge Local supply Soft bristle brush...

  • Page 80: Cleaning Guidelines

    Section 2 - Aircraft Servicing Cleaning Guidelines These procedures give guidelines to clean the passenger compartment and the flight compartment. Passenger Compartment Use a vacuum cleaner to clean: − The passenger seats − The floor − The seat tracks. Make a sponge moist with weak soap solution. Do a test on a non-visible area of each surface to be cleaned with the moist sponge.

  • Page 81: Waste / Water System Servicing

    PUT ON PROTECTIVE CLOTHING, PROTECTIVE GOGGLES AND GLOVES BEFORE YOU DO WORK ON THE WATER/WASTE SYSTEM. THIS WILL HELP TO PREVENT INJURY. Recommended Materials Material Pilatus Part No. Clean flush fluid CFF-001 or CFF-003 Local supply Clean flush powder CFP-006 Local supply...

  • Page 82: Drain The Waste Tank

    Section 2 - Aircraft Servicing Drain the Waste Tank De-energize the aircraft electrical system. Fully open the toilet doors. Remove the side panels Figure 2-7-1 [4] Figure 2-7-1 [7] from the top of the toilet. Note The side panels are attached with hook and loop fasteners. Disconnect the toilet pump switch electrical connector Figure 2-7-1 [5] and the toilet light...
  • Page 83 Section 2 - Aircraft Servicing ICN-12-A-A152000-A-S4080-02273-A-001-01 Figure 2-7-1: Toilet Waste Tank Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 2-7-3...
  • Page 84 Section 2 - Aircraft Servicing This Page Intentionally Left Blank Ground Servicing Guide Report No: 02527 Issue date: Dec 19, 2022 Page 2-7-4...

  • Page 85: Cold Weather Procedures (Deicing / Anti-Icing)

    Section 2 - Aircraft Servicing Cold Weather Procedures (Deicing / Anti-Icing) General Icing conditions can exist when the outside air temperature on the ground or Total Air Temperature (TAT) during flight is +10 °C (50 °F) or colder, and visible moisture in any form is present.

  • Page 86: Inspections

    Section 2 - Aircraft Servicing Fluids There are four standard aircraft deicing and anti-icing fluids: − Type I deicing fluid can be used to quickly melt and remove frost or other ice formations. As these are the thinnest of the fluids, as airflow increases over the surface, the fluid is easily blown off the surface.

  • Page 87: Deicing Equipment And Materials

    AIRCRAFT TO THE REAR. IF YOU SPRAY FROM THE REAR OF THE AIRCRAFT YOU CAN FORCE FLUID INTO AERODYNAMICALLY QUIET AREAS FROM WHERE IT MAY NOT BE ABLE TO DRAIN. Equipment/Material Recommended Pilatus Part Number Broom Local supply Brush Local supply...

  • Page 88: Deicing

    Section 2 - Aircraft Servicing Deicing CAUTION WHEN YOU REMOVE ICE, SNOW OR SLUSH FROM THE AIRCRAFT SURFACE, TAKE CARE TO PREVENT ENTRY AND ACCUMULATION OF ICE, SNOW OR SLUSH INTO CONTROL SURFACE HINGE AREAS. Note Deicing/anti-icing fluid may splash onto heated surfaces such as air data probes. This can produce significant vapour.
  • Page 89 Section 2 - Aircraft Servicing The recommended deicing flowchart is given in Fig. 2-8-1. IS THERE ANY CONTAMINATION (FROST, ICE, SNOW OR SLUSH) ON THE WINGS, CONTROL SURFACES OR ENGINE INTAKE/ INERTIAL SEPERATOR? IS THE TEMPERATUE LESS THAN 10°C (50°F) AND VISIBLE MOISTURE OR ICING CONDITIONS (ICE, FROST SNOW OR SLUSH) PRESENT? ICING CONDITIONS PRESENT DURING...
  • Page 90 Section 2 - Aircraft Servicing Deicing / Anti-icing the Wings, Stabilizers and Fuselage Note Deicing/anti-icing can be a one-step or a two-step process. Step one deices the aircraft, and if necessary, step two anti-ices the aircraft before take-off. The one-step process uses heated deicing fluid to remove contamination . It also gives some anti-icing protection to the aircraft.
  • Page 91 Section 2 - Aircraft Servicing SHADED AREAS INDICATE ESSENTIAL AREAS TO BE DE-ICED NOTE: AVOID DIRECT SPRAYING OF DEICING FLUID ON/IN THE FOLLOWING AREAS: ENGINE INLETS BRAKES PITOT HEADS ENGINE EXHAUST WINDSHIELD STATIC PORTS RAM AIR INLETS CABIN WINDOWS AOA VANES SHOWN WITHOUT PROPELLER BLADES NOTE:...
  • Page 92 Section 2 - Aircraft Servicing SHADED AREAS INDICATE ESSENTIAL AREAS TO BE ANTI-ICED NOTE: AVOID DIRECT SPRAYING OF DEICING FLUID ON/IN THE FOLLOWING AREAS: ENGINE INLETS BRAKES PITOT HEADS ENGINE EXHAUST WINDSHIELD STATIC PORTS RAM AIR INLETS CABIN WINDOWS AOA VANES SHOWN WITHOUT PROPELLER BLADES ICN-12-A-A152000-A-S4080-02256-A-001-01...

  • Page 93: Post Deicing/Anti-Icing Inspection

    Section 2 - Aircraft Servicing Deicing / Anti-icing the Landing Gear CAUTION APPLY ONLY THE MINIMUM AMOUNT OF DE-ICING/ANTI-ICING FLUID NEEDED TO THE LANDING GEAR. DO NOT DIRECT DEICING/ANTI-ICING FLUID ONTO THE BRAKES, WHEELS OR TIRES. Remove the build up of slush, ice or snow from the landing gear with a brush. If contamination deposits are bonded to the surface, remove the contamination with sprayed deicing/anti-icing fluid.

  • Page 94: Pre Take-Off Check

    Section 2 - Aircraft Servicing Pre Take-Off Check The pilot in command, with assistance from the ground crew, must make sure that all critical surfaces are free from ice, snow and frost formations before take-off. After the deicing/anti-icing procedure and before take-off, the pilot in command must do a pre take-off check to make sure that all critical surfaces are free of contamination.
