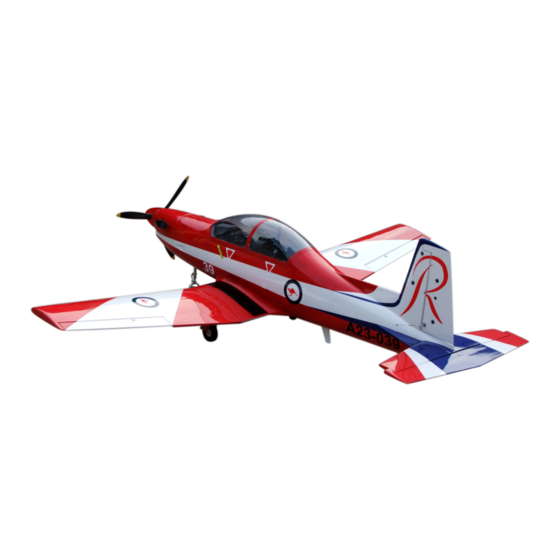

Pilatus PC-9
Specification:
Length:
1936mm(76＂)
Wing span:
2024mm(80＂)
Wing area:
64sq.dm(6.9sq.ft)
Wing loading: 106.3g/sq.dm(34.9oz/sq.ft)
Flying weight: 6.8kg(17.3bs)
Radio:
6ch & 8servos
Engine:
120 4-cycle
30cc gasoline engine
SAFETY PRECAUTIONS
INSTRUCTION MANUAL
This R/C airplane is not a toy!
(The people under 18 years old is forbidden from flying this model)
First-time builders should seek advice from people having building
experience.If misused or abused,it can cause serious bodily injury
and damage to property.
Fly only in open areas and preferably at a dedicated R/C flying site.
We suggest having a qualified instructor carefully inspect your
airplane before its first flight.Please carefully read and follow all
instructions included with this airplane,your radio control system
and any other components purchased separately.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pilatus PC-9
Summary of Contents for Pilatus PC-9
- Page 1 Pilatus PC-9 Specification: Length: 1936mm(76＂) Wing span: 2024mm(80＂) Wing area: 64sq.dm(6.9sq.ft) Wing loading: 106.3g/sq.dm(34.9oz/sq.ft) Flying weight: 6.8kg(17.3bs) INSTRUCTION MANUAL Radio: 6ch & 8servos Engine: 120 4-cycle 30cc gasoline engine This R/C airplane is not a toy! (The people under 18 years old is forbidden from flying this model) First-time builders should seek advice from people having building experience.If misused or abused,it can cause serious bodily injury...
- Page 2 (with 9 servos), 6 channel radio for aiplane is highly recommended for this model. : 120 - 4cycle " Spinner nut " Apply epoxy glue. Pre-cover the covering with clean cloth! Warning Start at low setting. Increase the setting if Remove the covering with proper necessary.If it is too high,you may damage pressure to cut through only the covering itself.Otherwise,...
- Page 3 Assemble the aileron to main wing with instant type Accessory list for the coming installation steps. CA glue. Clevis Retainer Rod (2x300mm) TP Screw (2.3x12mm) Screw (3x35mm) Servo tray(68.5x56.5x2mm) Wooden Block(20x20x8mm) Pin hinge(24x24mm) Washer(3x15mm) Lock Nut (3mm ) Washer(3x15mm) Securely glue together. If coming off during flights, you 'll lose control of your airplane which leads to accidents! Install the servo as the illustration below.
- Page 4 Secure the servo.Install the nylon control horn and Adjustment of the rudder to make sure it can Adjustment of the elevator to make sure they can Assemble the flap servo to the main wing with screws. connect the linkage. work perfectly. work perfectly.
- Page 5 Connect the two flaps with metal wire,keep some space Install the wheel to the fixed landing gear. Epoxy main wings to the centre wing by main wing Accessory list for the coming installation steps. between them and epoxy the pinned hinges to the flaps joiners.
- Page 6 Secure the servo.Install the nylon control horn Epoxy plies under the canopy and assemble the Drill holes in the fuselage for installing the wings. Epoxy the exhaust to the cowling from lnner. and connect the linkage. canopy to fuselage with screw. TP Screw (2.3x8mm) Rod (2x300mm) Lock Nut (3mm )
- Page 7 Accessory list for the coming installation steps. Trim the shaded portion covering off the mid wing carefully. Install the rudder servo. Connect the electric retract & receiver as illustration below. Washer(2x5mm) Wheel (90mm) Screw (2x10mm) Ball joint Lock Nut (2mm ) Copper joiner S t e e l w i r e Pin hinge (36x20x1mm)
- Page 8 Drill small holes to appropriate position in the rudder and Assemble one part of the pin hinge to Apply instant type CA glue to elevator and pin hinge. Connecting the elevator servo and the elevator. the fuselage as below, epoxy the plastical tube to the hole the baffle with screw as illustration.
- Page 9 Drill holes to the relevant position in the tailing edge Assemble the nose wheel. Assemble the steeling fullarm around the landing gear. Epoxy the stabilizer to the fuselage steadly. and epoxy the rudder to them. Aluminum shaft Screw (4x25mm) Screw (4x25mm) Washer(4x8mm) 2.5mm Washer(4x8mm)
- Page 10 Assemble the engine. The front view of the engine install completion. Assembly of the fuel tank. Drill a small hole in appropriate position for throttle. Screw (4x35mm) Washer (4x8mm) Washer (4x8mm) Washer (4x8mm) Screw (4x35mm) Air pressure line Spring Washer (4mm) Fuel spray line In case of 2-cycle &...
