Summary of Contents for Aquaporin Inside A2O Pure

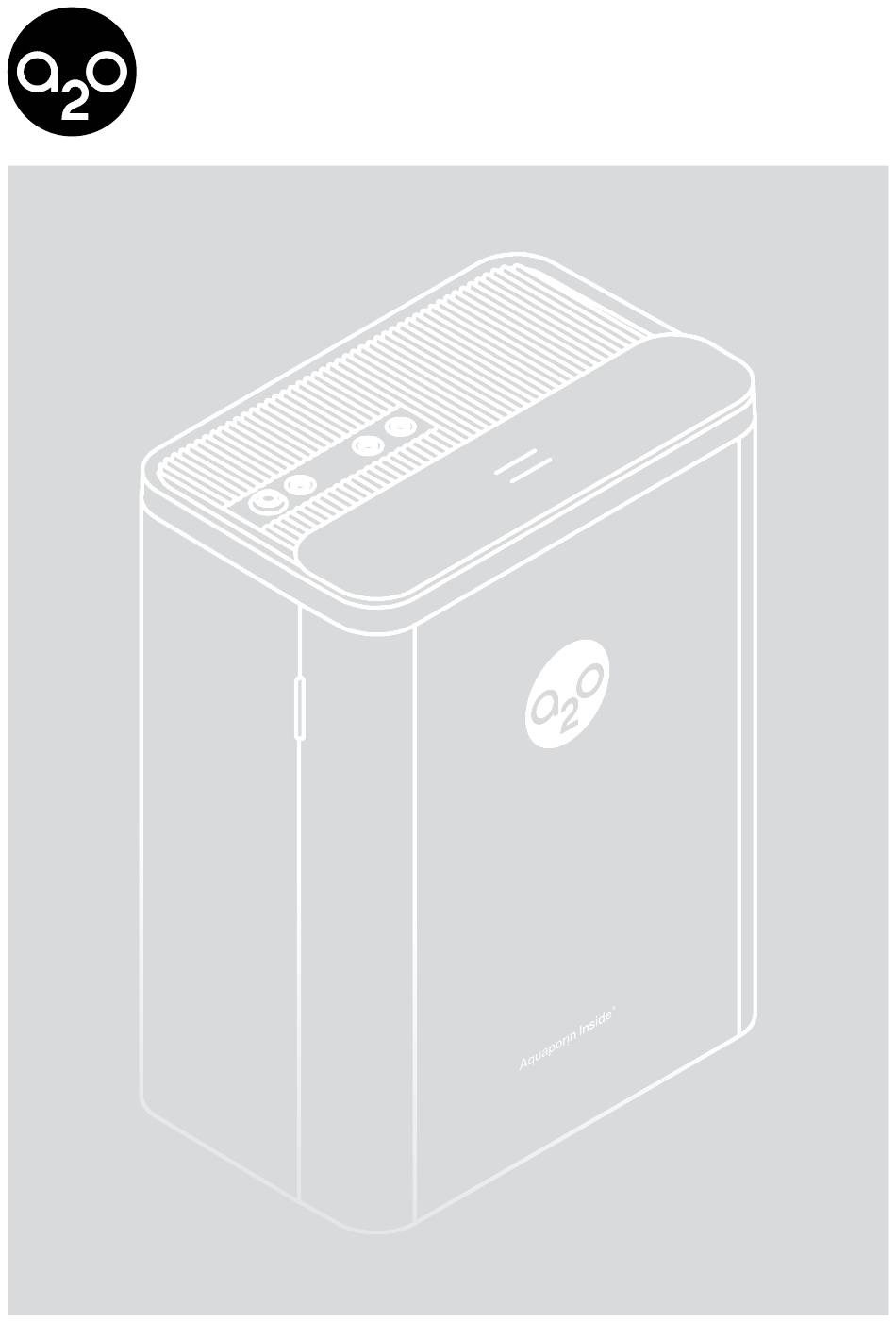

- Page 1 A2O Pure Use and installation manual...
- Page 2 Pure water nothing else A2O Pure Use and installation manual...
-
Page 3: Table Of Contents
List of included components Installation scheme How to install Operating instructions Replacement of filters Maintenance For the most updated installation manuals in more languages, go to Aquaporin.com/installation or contact the store where you bought your device. A2O Pure Use and installation manual... -
Page 4: Control Via App
Control via app Aquaporin Connect with your purifier Connect your A2O purifier with your smartphone to manage and track your water usage in real time. Receive updates Receive recommendations to ease the use of your A2O purifier and get a reminder when it’s time to change filters. -
Page 5: About A2O Pure
About A2O Pure The A2O Pure is a direct flow water purifier The Aquaporin Inside® Drinking Water with Aquaporin Inside® technology. The Membrane (DWRO®) uses unique “made by device can be used wherever traditional nature” proprietary membrane technology reverse osmosis (RO) systems or other types to remove PFAS, pesticides, heavy metals, of water filtration system reach their limits. - Page 6 Technical data Flow rate of filtered water 2.1 L/min Water recovery rate 65% (2:1) Membrane capacity 126 L/h Salt rejection > 90% Electrical connection 220–240V AC Power consumption (operation) 95 W Power plug standard Noise level 53 ±1 dB WiFi connection + app Leak detector Membrane flushing (auto-cleaning) Feedwater, pure water and wastewater...
- Page 7 General Information Warranty and disclaimer The manual contains important instructions Observe: The information and for safe and efficient use of the A2O Pure. instructions contained in the This manual is part of the device and must be manual were compiled based on constantly available at the place of operation.
- Page 8 Observe: Improper installation of the Operating and safety notes device may cause damage to it. Overview of all operational and safety aspects - Observe any country-specific installation that are considered important for ensuring regulations (such as DIN 1988, EN 1717), safe and fault-free operation.
-
Page 9: Dimensions And Weight
Dimensions and weight 315 mm 315 mm 203 mm Net weight: 8.57 kg A2O Pure Use and installation manual... -
Page 10: List Of Included Components
List of included components DRAIN CLAMP KIT Machine Drain clamps Screw + nut Gasket Pressure reducer 1× 2× 1× incl. filters incl. check valve 1× 1× PE pipe PE pipe Push-in T-piece with ball Faucet 1/4″ 3/8″ fitting valve, G½ x G½ 1×... -
Page 11: Installation Scheme
Installation scheme Faucet Pure Drain Wastewater water pipe Inlet water (tap water) Water Inlet water Pure water source The pressure reducer Wastewater including check valve for backflow prevention must be applied. A2O Pure Use and installation manual... -
Page 12: How To Install
How to install Before you start, please be sure to clean your hands thoroughly as well as any tools used during the installation of your purifier. The installation will take approximately 1 hour. Before installation, remove the grey IN and OUT plugs as well as the DRAIN plug. - Page 13 Drain installation Drill ø 6.5 mm Add the gasket between the drain clamps and the drain pipe. Gasket Insert the 1/4″ PE pipe so that min. 2 cm will Tighten the clamp with the be going into your drain pipe. Phillips screwdriver.
- Page 14 Cut the 1/4″ PE pipe to fit the installation and insert it into the wastewater connection on the A2O Pure. Wastewater A2O Pure Use and installation manual...
- Page 15 Inlet installation Insert the 3/8″ pipe onto the ball valve. Unscrew the nut from the ball valve. Tighten the nut with a Connect the T-piece flexible spanner. with ball valve on your cold water pipe. Cold water pipe A2O Pure Use and installation manual...
- Page 16 Cut 5 cm of the 3/8″ PE pipe with a pincer and insert it in Grey Blue the pressure reducer. Insert a new 5 cm piece of 3/8″ PE pipe at the other end of the pressure reducer. Note that the direction of the pressure reducer! The arrow should be pointing towards the A2O Pure...
- Page 17 Faucet installation Drill ø 12 mm Drill a hole adjacent to your regular faucet. Assemble Remove the rubber cover from and tighten with the faucet. your hands (no use of tools). Rubber cover A2O Pure Use and installation manual...
- Page 18 Pure water installation Push the push-in fitting onto the bottom end of the faucet. Insert a new piece of the 1/4″ PE pipe in the Cut the length of the 1/4″ PE pipe to fit your other end of the push-in fitting. installation and insert it into the pure water connection on the A2O Pure.
- Page 19 Connect power Turn on the water. Connect A2O Pure to your power supply. WARNING: Check for leakages before proceeding. TURN A2O Pure Use and installation manual...
- Page 20 Complete the installation The filter life indicator on the top panel will flash and you will hear a sound. Now you can hear water flowing into the A2O Pure. Once the lights stop flashing, open your faucet and check for leakages. After installing your A2O Pure or replacing filters, the device must be flushed before consuming the water.
-
Page 21: Operating Instructions
Operating instructions User interface overview Water purification Wi-Fi Fault indicator light indicator indicator Rinse button Select/reset Pre-filter Post-filter DWRO® membrane life indicator life indicator life indicator A2O Pure Use and installation manual... - Page 22 If dispensing water while the device is in Starting the machine When the A2O Pure is powered on the first cleaning mode, the cleaning cycle will resume time, it will buzz, and the displays will be on when the faucet is closed. for 3 seconds.
- Page 23 Wi-Fi connection - To connect your A2O Pure to your smart device, download the Aquaporin app. - Press and hold the “Clean” button until the Wi-Fi icon flashes. - Select your A2O Pure in your app and click connect.
-
Page 24: Replacement Of Filters
The 3 filters remove particles such as a pre-filter which is a 2-in-1 that pretreats the sand, dirt, and other sediments down to incoming water and protects the Aquaporin 5 microns and it reduces most drinking Inside® DWRO® membrane. water contaminants to a high degree, including PFAS, pesticides, heavy metals, The DWRO®... - Page 25 Close the ball valve. Unplug the power supply. UNPLUG TURN Remove the cover and identify the filter that Take out the filter that you are replacing. needs to be replaced. Insert the new filter and tighten to the mark position. CLICK! Pre-filter Post-filter...
- Page 26 Once the filter has been changed, Plug in the power supply. open the ball valve. TURN The light on the top panel will flash and the Remember to flush before consuming the device start flushing for 30 seconds and water! enters standby.
-
Page 27: Maintenance
Maintenance Machine maintenance trained personnel, who must handle the Some components of your device have a equipment properly, as well as use original limited life span and will need to be replaced. spare parts to maintain the characteristics, The precise duration will depend on the warranty, certifications, and performance composition of the local water, such as high of the equipment and thus ensure the... - Page 28 Aquaporin A/S VAT No.: DK28315694 Nymøllevej 78 Tel: +45 82 30 30 82 2800 Kongens Lyngby sales@aquaporin.com Denmark aquaporin.com A2O Pure installation manual EN | Version 1.1 | Revised: 20 January 2023...
