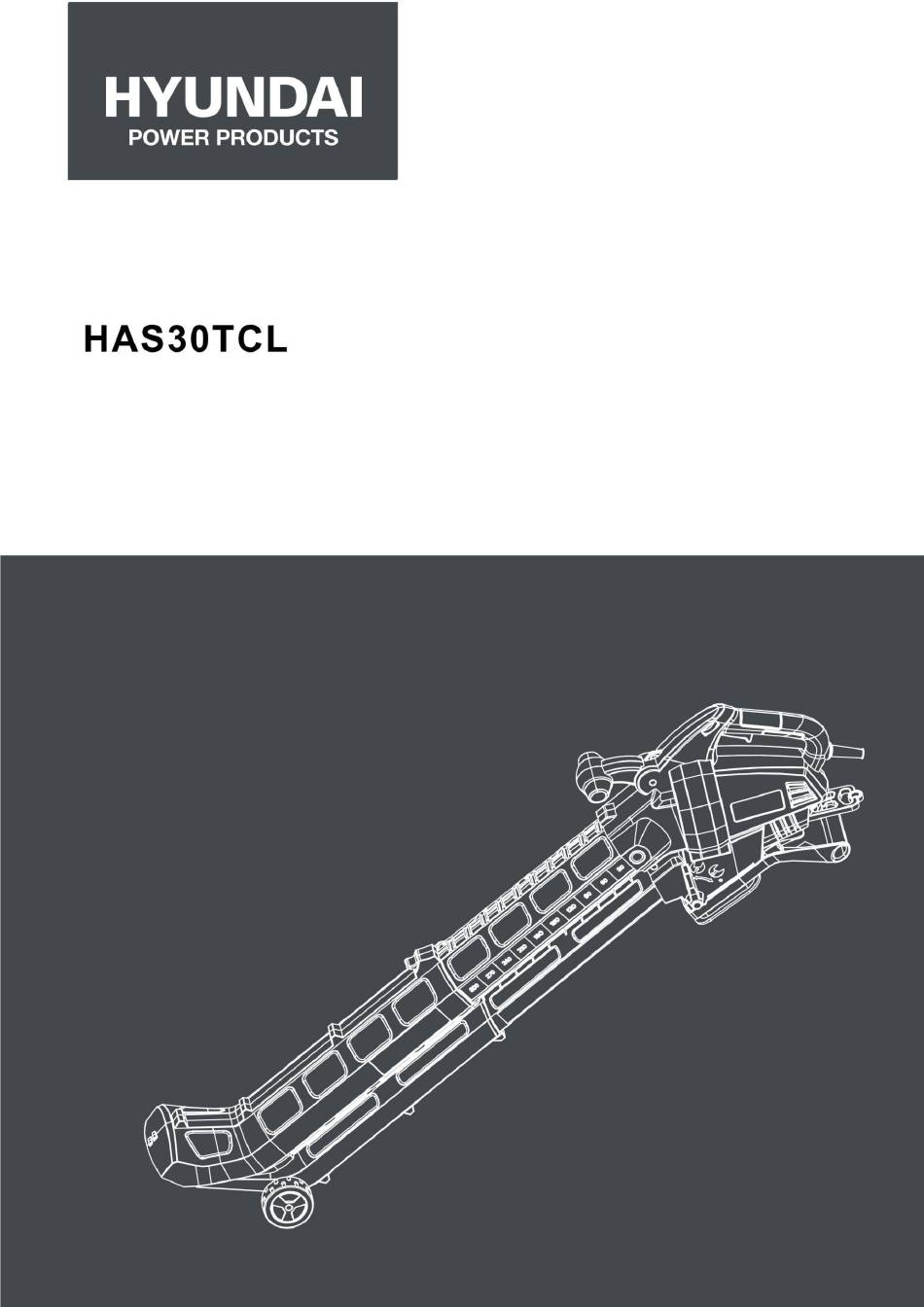

VACUUM/BLOWER
HAS30TCL
VACUUM/BLOWER
ORIGINAL INSTRUCTIONS
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HAS30TCL and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HAS30TCL

Summary of Contents for Hyundai power products HAS30TCL

  • Page 1 VACUUM/BLOWER HAS30TCL VACUUM/BLOWER ORIGINAL INSTRUCTIONS...
  • Page 2 1.SAFETY WARNINGS IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE Safe operating practices hand-held mains-operated electrical garden vacuums, and garden blower/vacuums with without shredding means and garden blowers Training a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine. b) Never allow children or people unfamiliar with these instructions to use the machine.
  • Page 3 e) Do not operate the machine on a paved or gravel surface where ejected material could cause injury. f) Before using, always visually inspect to see, that the shredding means, shredding means bolts and other fasteners secure, housing undamaged and that guards and screens are in place.
  • Page 4 unusual noise or vibration, immediately shut off the power source and allow the machine to stop. Disconnect the machine from the supply and take the following steps before restarting and operating the machine: i) inspect for damage; ii) replace or repair any damaged parts; iii) check for and tighten any loose parts.

  • Page 5: Additional Instructions

    shut off the power source, disconnect the machine from the supply and make sure that all moving parts are come to a complete stop. Allow the machine to cool before making any inspections, adjustments, etc. Maintain the machine with care and keep it clean.
  • Page 6  Do not allow children, people with reduced physical, sensory or mental abilities, or those with no experience and knowledge or people who do not know these instructions to use the machine. Local regulations may restrict the age of the operator.
  • Page 7  Do not use the machine when you are tired, under the influence of alcohol, drugs or when you are sick.  Use the tool to vacuum and blow leaves and similar materials. Do not blow flammable materials, cigarette butts and materials that may damage the unit.
  • Page 8  Do not place any objects inside the tube and inside the tool.  Before using the machine and after a shock, check for signs of wear or damage. Please make repairs if necessary.  Inspect and maintain the product regularly. Repairs should only...

  • Page 9: Residual Risks

     Do not to touch moving hazardous parts before the machine is disconnected from the mains and the moving hazardous parts have come to a complete stop.  The extension cable shall not be lighter than the standardised code H05 RN-F/H05 VV-F. See your retailer or manufacturer for more advice.
  • Page 10 2. Symbols rotate when the lid is open or closed. Do not insert your hands or other objects Class II product (double insulation) Risk of bodily injury or Switch off the tool and property damage disconnect the plug from the mains before setting or cleaning the tool, or if the cable is tangled or damaged.
  • Page 11 3. Suction / Blow Selection Lever 4. Suction / Intermittent Tube 5. Suction / blowing tube equipped with wheels 6. Bag of pickup 7. Power cable 8. Anti-lock hatch Technical specifications Model HAS30TCL Power 3000W No load speed 8000-14000/min Tension 230V-240V~50Hz Velocity of the blower...
  • Page 12 Weight 3.8kg Sound pressure level 86.6dB(A) K=3dB(A) Sound power level 98.1dB(A) K=2.07 dB(A) Guarantee sound power level 100dB(A) vibration 0.815 m/s² K=1,5 m/s² 4. ASSEMBLY Remove all packing materials.  Remove the remaining packaging and transport media (if applicable).  Check that nothing is missing in the box.
  • Page 13 To install the recovery bag: • Turn the support frame (4.1) to the appropriate position of the housing (4.3). • Lock the bracket in place. • To remove the recovery bag: • Press the bracket (4.2) to release it. 4.3 Installation of the shoulder strap (fig. 6) The vacuum cleaner / blower is equipped with a shoulder strap (6.1) fixed at the top of the main body of the vacuum cleaner / blower as illustrated (6.2).
  • Page 14 Connect the vacuum cleaner / blower to the mains via DDR and switch it on. Check that the DDR is working properly. 5.3 Switching on the vacuum cleaner / blower (Fig. 7 + 8 + 9) To start the vacuum / blower, check that the suction / discharge tube is properly mounted and secured to the recovery bag.
  • Page 15 5.5Use of the tool Do not attempt to pick up wet debris, let dead leaves, etc., dry before using the vacuum cleaner / blower. The vacuum cleaner / blower can be used to remove debris from terraces, paths, walkways, lawns, bushes and curbs. It will also collect leaves, papers, small twigs and wood chips.
  • Page 16 into the debris too much as this will block the suction tube and reduce the efficiency of the device. Organic materials such as leaves contain a large amount of water that can cause them to stick to the inside of the suction tube. To limit the adhesion of these materials, they must dry a few days before being sucked.
  • Page 17 BUILDER SAS ZI, 32 rue, Aristide Bergès – 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declare that the machine VACUUM/BLOWER HAS30TCL Serial number: 20200811345-20200811844 Is in conformity with the following Directive Directive Machine 2006/42/EC EMC Directive 2014/30/EU...

  • Page 18: Warranty

    9. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 19: Product Failure

    10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 20: Warranty Exclusions

    11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
