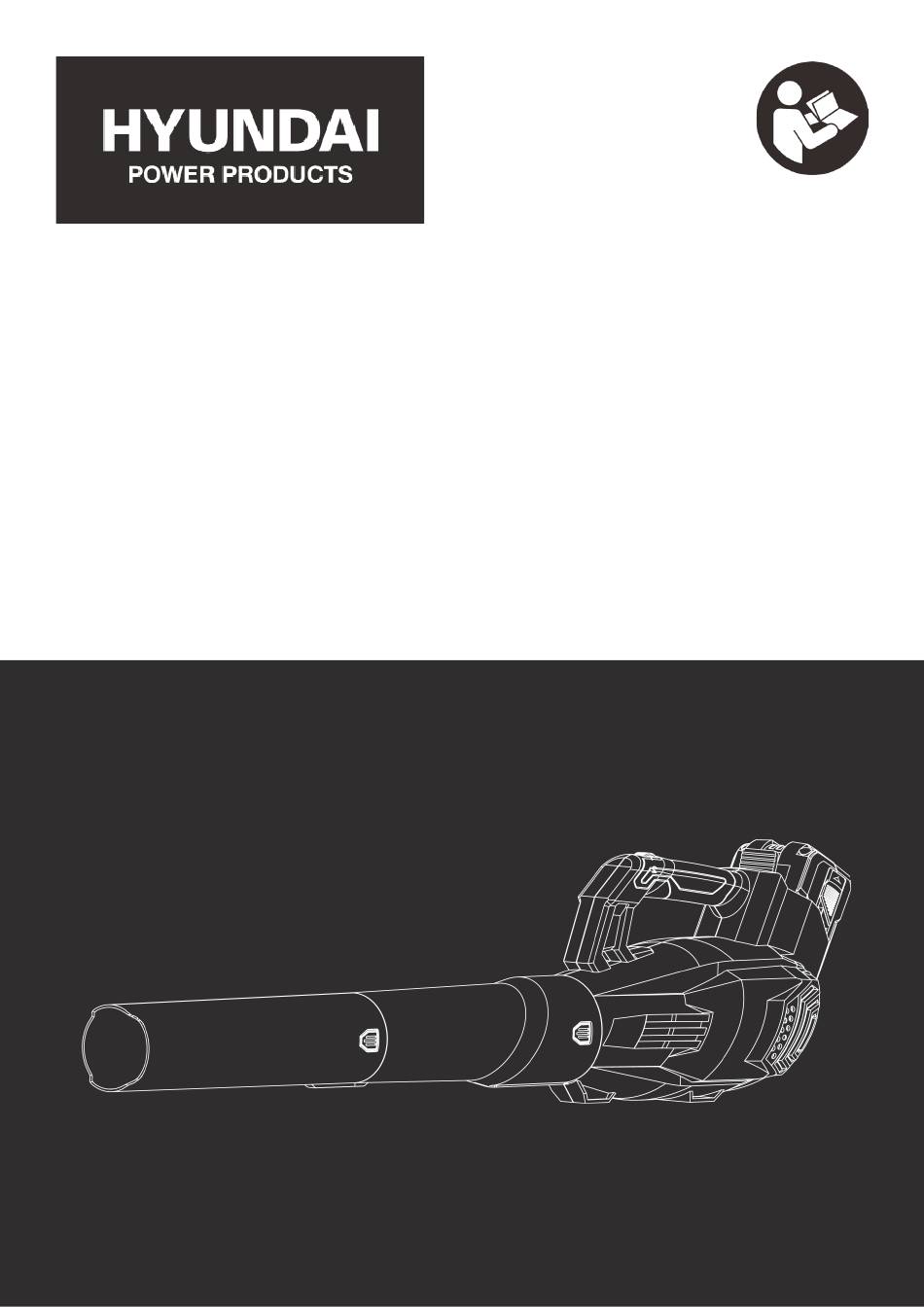

- Page 1 40V LEAF BLOWER HYB40Li Instruction Manual...
- Page 2 USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.
-
Page 3: Table Of Contents
Contents Symbols On The Machine....4 Safety Information.....5-14 Features.........15 Unboxing........16 Assembly........17-18 Operation........19 Battery...........20 Technical Data......21 Maintenance......22-23 Troubleshooting......24 Disposal.........25 Our Product Range.......26 Declaration of Conformity...27 Notes........28-29 Useful Information......30 Contact Us........31... -
Page 4: Symbols On The Machine
Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgment. -
Page 5: Safety Information
Safety Information WARNING : READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. Understand Your Machine • WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. - Page 6 Safety Information lightweight footwear. Do not wear chains, bracelets or clothing that is loose fitting or hanging ties or cords. Tie long hair back. Always wear protective earplugs. Loose clothes, jewellery, or long hair can be caught in moving parts. Protect eyes, face, and head from objects that may be thrown from the unit.
- Page 7 Safety Information • If the machine should start to vibrate abnormally, stop the machine and check immediately for the cause. Vibration is generally a warning sign of trouble. • Do not tamper with or disable safety systems. • Only use manufacturer-recommended attachments. •...
- Page 8 Safety Information During Use • Always hold the unit with both hands when operating. Keep a firm grip on the handlebars. Be aware that the machine may unexpectedly bounce upward or jump forward if the machine should strike buried obstacles such as large rocks or roots. Maintain a safe distance as provided by the handle frame.
- Page 9 Safety Information • You must remove the battery (making sure that all moving parts are stationary): - After striking a foreign object, you must inspect the machine for damage and make repairs before using it again. - Before checking or working on the machine. - When lifting or transporting the machine.
- Page 10 Safety Information Power Tool Use And Care • Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. •...
- Page 11 Safety Information Battery Use And Care • Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. • Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- Page 12 Safety Information Electrical Safety (Where Applicable) DANGER! ELECTRICITY CAN KILL – NEVER WORK ON LIVE/ENERGISED EQUIPMENT. • Prior to carrying out any maintenance work you MUST identify electrical isolation methods and isolate all electrical supplies. • Prior to use and with all electrical supplies isolated, you MUST check all electrical cables, plugs and connectors for the following;...
- Page 13 Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit etc. If more than one item of PPE is worn at the same time, make sure they can be used together, e.g.
- Page 14 Safety Information Intended Use The HYB40Li is a battery powered leaf blower from HYUNDAI. The leaf blower is manufactured according to the latest safety requirements. Every precaution is only effective when it is followed exactly. Intended Use This machine was designed and manufactured for clearing hard surfaces such as driveways and walkways.
-
Page 15: Features
Features HYB40Li Features 1. Battery Pack 2. Blower Housing 3. Upper Blower Tube 4. Lower Blower Tube 5. On/Off Switch... -
Page 16: Unboxing
Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI Power Products immediately. You must keep the packaging material in case the machine needs to be returned or repaired. -
Page 17: Assembly
Assembly Fitting And Removal Of Battery DANGER - To avoid accidental operation and injury, the battery should always be removed whenever you are not using the tool. Fitting Battery When inserting the battery, ensure the ridges of the battery pack align with the ribs inside the Blower Body. - Page 18 Assembly Installing Blower Tube When installing the Blower Tube, ensure the battery is removed. This will ensure now accidental starting whilst installing the Blower Tube. 1. Line up the Upper Blower Tube, with the Blower Body. Align the Release Latches of the blower body with the location holes on the Upper Blower Tube and secure.
-
Page 19: Operation
Operation When using the Blower, always ensure correct PPE is used. The HYB40Li On/Off Switch has 3 settings. 0 - Off 1 - This settings is used for blowing smaller objects. Good for preserving battery life. 2 - This setting is more powerful than 1. Used for larger objects, or piles of small objects. -
Page 20: Battery
Battery Checking Charge Status The unit has an LED state of charge indicator on the handlebar. 4 LED lights lit = 100% battery power 3 LED lights lit = 75% battery power 2 LED lights lit = 50% battery power 1 LED light lit = 25% battery power Charging The Battery 1. -
Page 21: Technical Data
Technical Data Specifications Model HYB40Li Rated Voltage 40V DC Maximum Air Volume 350CFM (10CMM) Maximum Air Speed 97mph (43m/s) Weight 1.65kg Sound Pressure Level 97dB(A), K=3.0 Guaranteed Sound Power Level 110dB(A) Vibration, Uncertainty K=1.5m/s2 <2.5m/s2 The vibration emission during actual use of the power tool can differ from the declared total value depending on the way the tool is used. -
Page 22: Maintenance
Maintenance & Care Maintenance Safety WARNING - Remove the battery pack before cleaning or maintaining the tool. Remove the battery pack before transporting or storing the tool. IMPORTANT - Routine and accurate maintenance is essential for maintaining original machine safety and performance levels. WARNING - Before cleaning or doing maintenance work, you need to remove the battery. - Page 23 Maintenance & Care Cleaning WARNING - Do not use water or liquid detergents. Remove the battery before cleaning. 1. Clean the equipment immediately after use with a damp cloth and some soft, non-abrasive soap. Do not use cleaning agents or harsh solvents; these may damage the plastic parts in the equipment.
-
Page 24: Troubleshooting
Troubleshooting Fault Possible Cause Possible Solution Motor does not start 1. Capacitor defective 1. Contact an authorised 2. Battery pack empty service centre 3. Cable defective 2. Charge the battery pack 4. Switch/plug block defective 3. Check the cable 5. Motor terminals or capacitor 4. -
Page 25: Disposal
Disposal Recycling And Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 26: Our Product Range
Our Product Range Generators Mini Dumpers Leisure Inverter, Petrol, Diesel And Built-In 4-Wheel Drive Mini Dumpers And Tracked Motorhome Generators Dumpers Pressure Washers Yard Sweeper Petrol, Diesel And Electric Pressure Washers Self Propelled Yard Sweeper Power Brush Water Pumps Scarifiers Submersible, Clean And Dirty Water And Petrol Lawn Scarifier And Aerator Professional Chemical Water Pumps... -
Page 27: Declaration Of Conformity
Isaac Way, Pembroke Dock, SA72 4RW Country of Origin: China Description: 40V Leaf Blower SKU Code: HYB40Li Date of Issue: 17/09/21 Regulations and Directives of Compliance • 2006/42/EC The Machinery Directive • 2014/30/EU Annex ll Electromagnetic Compatibility Directive • 2011/65/EU RoHS •... -
Page 28: Notes
Notes... - Page 29 Notes...
-
Page 30: Useful Information
Go to www.hyundaisupport.co.uk or search ‘Hyundai Power Products’ in YouTube. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. -
Page 31: Contact Us
Need Help? Talk To Our Experts Contact Us Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687880, open Monday-Friday 8.30am-5pm. Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Live chat is open Monday-Friday from 8.30am-5pm. Post Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. - Page 32 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
