Recording Menu

The integral SD card has a capacity of 32GBytes, this offers 17 hours of continuous recording at a
total IP bit stream of 4Mb/s or 34 hours at 2Mb/s, etc. If recording capacity is achieved there is a

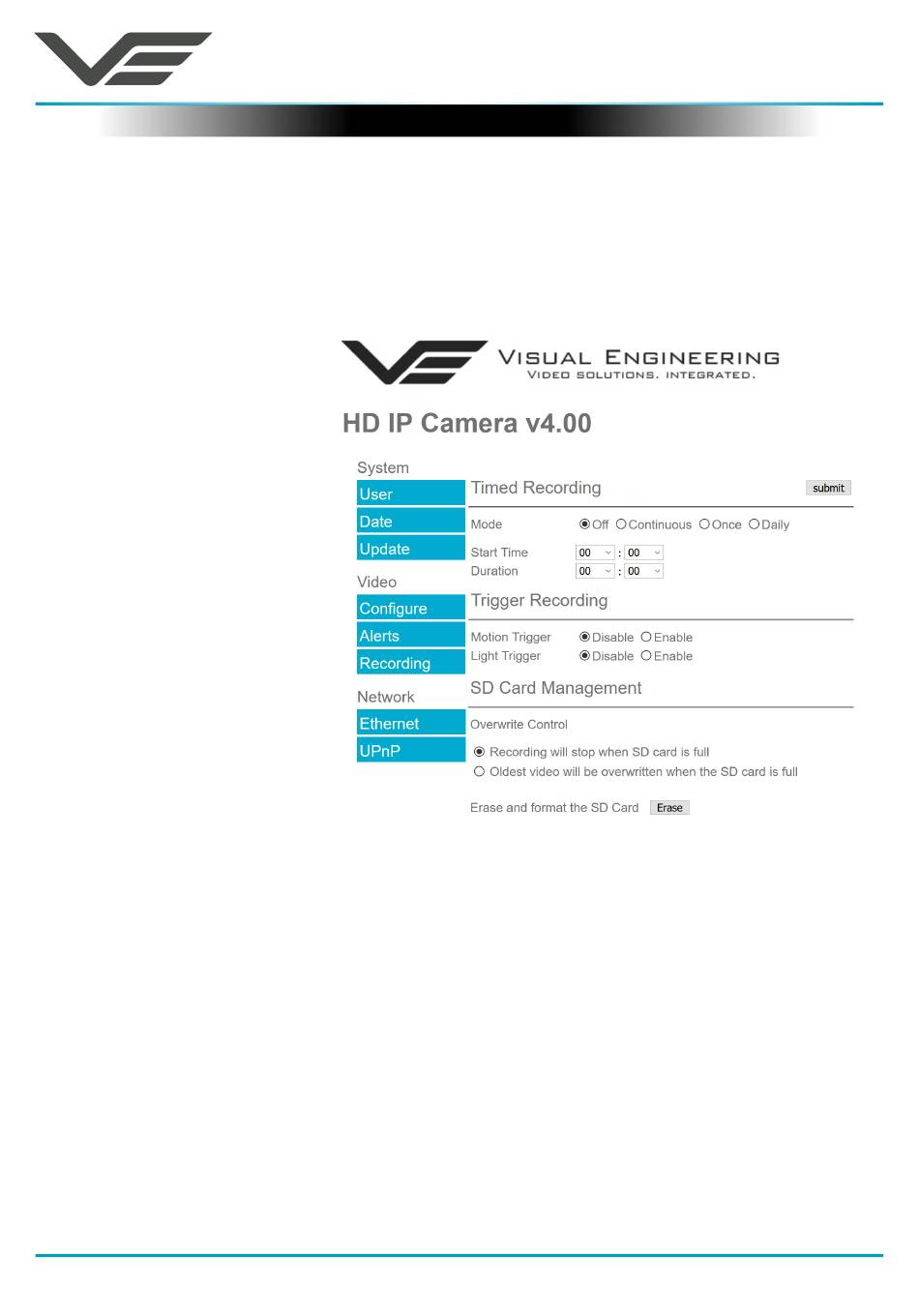

user option to either stop recording or overwrite. The recording web page menu is shown below.
Note: Recording is temporarily paused during activity on the camera's web interface.
Timed Recording
There are 4 options for timed
recordings, these are; Off,
Continuous, Once and Daily.
Off = No recording takes place.
Continuous = Recording
Continuously.
Once = Record once when the
start time is reached and record
for the set duration.
Daily = Record daily starting when
the start time is reached and
record for the set duration.
Trigger Recording
Trigger Recordings can be triggered by either motion or light level change.
Trigger recordings are disabled by default, if enabled, a recording will be made.
The duration of the recording will be the duration of the motion event plus the time set in seconds
in the trigger duration.
SD Card Management
In the event of the SD card becoming full, there are two options for Overwrite Control. One option
is to have the recordings stop when the SD card is full, or the other option is to have the oldest
material to be overwritten when the SD card becomes full.
Following any changes made in the menu the user must press the submit button . Wait until the
camera finishes re-configuring before powering off the camera.
Erase and Format
The SD card will be completely erased and formatted if the Erase button is used. The user will be
asked to confirm that this is the intention before the SD card memory card is actually erased.
